Improper handling may cause personal injury!
• Arrange an appropriate number of personnel to carry the inverter according to
its weight, and installation personnel should wear protective equipment such
as anti-impact shoes and gloves.
• Attention must be paid to the center of gravity of the inverter to avoid tilting dur-
ing handling.
• Placing the inverter directly on a hard ground may cause damage to its metal
enclosure. Protective materials such as sponge pad or foam cushion should be
placed underneath the inverter.
• Move the inverter by holding the handles on it. Do not move the inverter by
holding the terminals.
5.5 Installing the Inverter
Install the inverter on the wall using the provided wall-mounting bracket and expansion plug
sets.

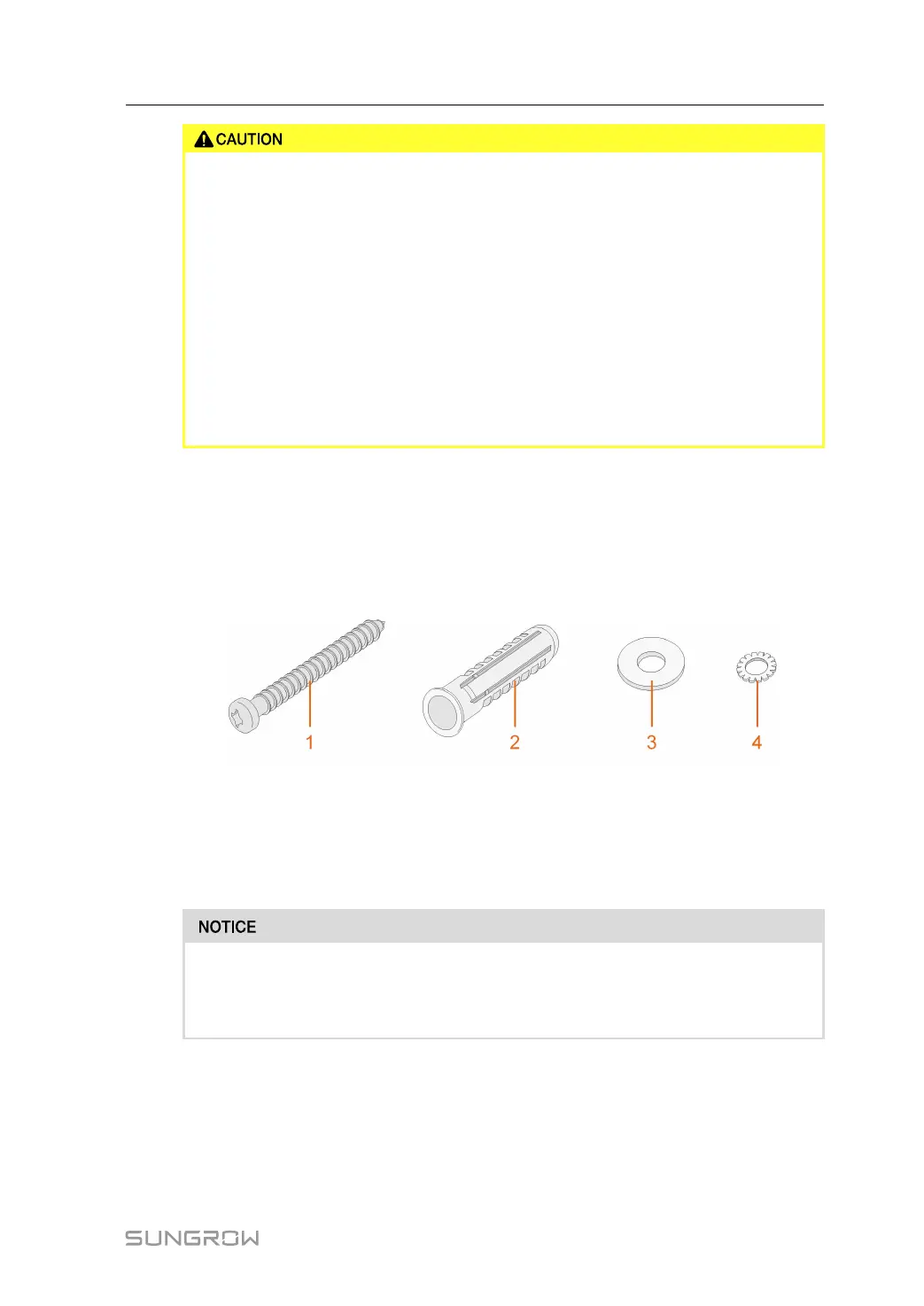

The expansion plug set shown below is recommended for the installation.
(1) Self-tapping
screw
(2) Expansion tube (3) Fender washer (4) Spring washer
step 1 Place the wall-mounting bracket to a proper position on the wall. Mark the positions and drill
the holes.
Observe the level on the bracket and adjust until the bubble is in the middle
position.
The depth of the holes should be about 70 mm.
User Manual 5 Mechanical Mounting
