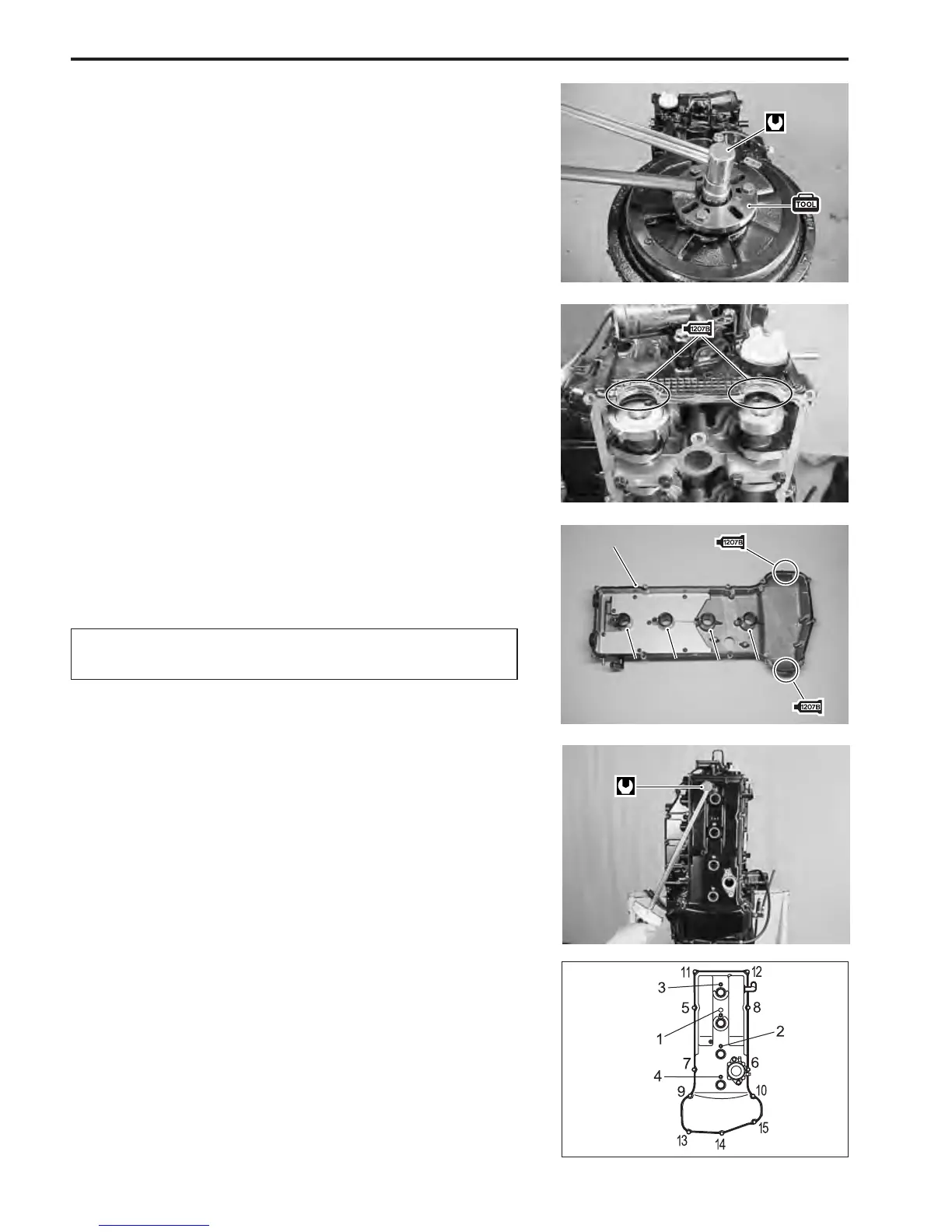

6-10 POWER UNIT
3. Install flywheel and tighten flywheel bolt to specified torque.
(See page 3-52)
\ 09930-48720 : Flywheel holder
""
""
" Flywheel bolt : 245 N
.
m (24.5 kg-m, 177.0 lb.-ft.)
CYLINDER HEAD COVER
NOTE:
Before installing cylinder head cover, check tappet clearance.
(See page 2-9)
1. Apply Suzuki Bond to area as shown in figure.
D 99000-31140 : Suzuki Bond No. 1207B
2. Assemble new O-rings and cylinder head cover gasket to
cylinder head cover.

Do not re-use gasket and O-ring once removed. Always
use new parts.
NOTE:
Be sure to check all parts for wear or any damage before instal-
lation and replace any found defective.
3. Install cylinder head cover to cylinder head and tighten cover
bolts to specified torque.
" Cylinder head cover bolt :
11 N
.
m (1.1 kg-m, 8.0 lb.-ft.)
NOTE:
Use care when installing cylinder head cover.
Be certain cylinder head cover gasket and O-rings remain in
their correct position.
11
22
22
22
22
1.
Head co
ver gask
et
2.
O-r
ing
1. Head cover gasket
2. O-ring
Tightening
order
To Next Page
