DF2.5 “K8” (’08) MODEL 9
ENGINE SERIAL NUMBER
The engine serial number starts from the following six-figure
number located after the model pre-fix.
MID UNIT
SWIVEL BRACKET

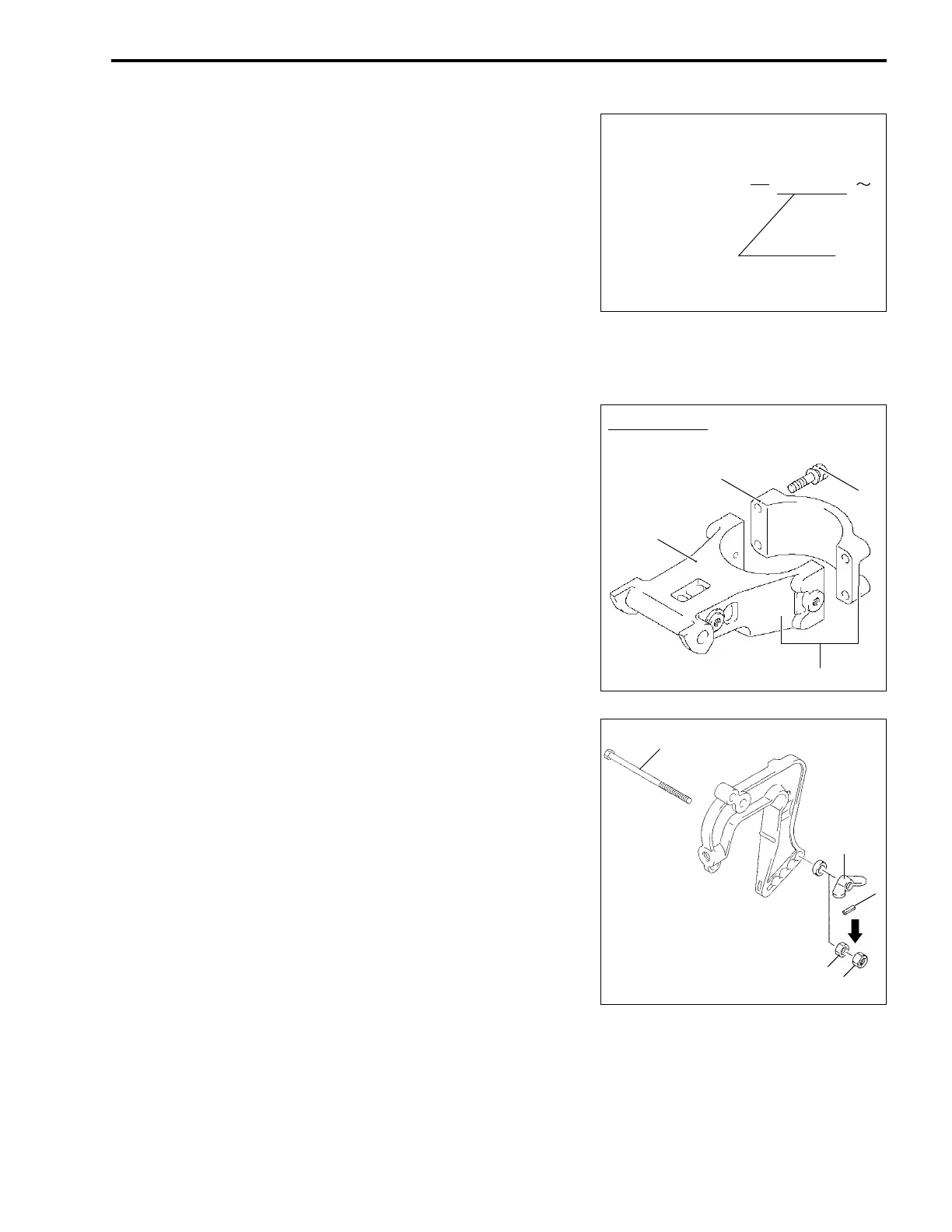

The swivel bracket assembly has been changed from right-left
division type to front-rear division type.
Interchangeability:
The early swivel bracket is interchangeable with late one as an
assembly.
1. Swivel bracket 3. Swivel bracket assembly
2. Swivel bracket cover 4. Securing bolt (4 pieces)
TILT LOCK NUT
The tilt lock bolt tightening nut has been changed from a wing
nut to two (2) hexagon nuts (a hexagon nut plus a self-locking
nut).
In accordance with this change, the spring pin pressed into the
tilt lock bolt has been eliminated.
1. Tilt lock bolt 4. Nut (’08 model)
2. Wing nut (’07 model) 5. Nut (’08 model)
3. Pin (’07 model)
MODEL PRE-FIX 880001
Serial number
’08 model parts
1
2
4
3
1
2
4
5
3

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
