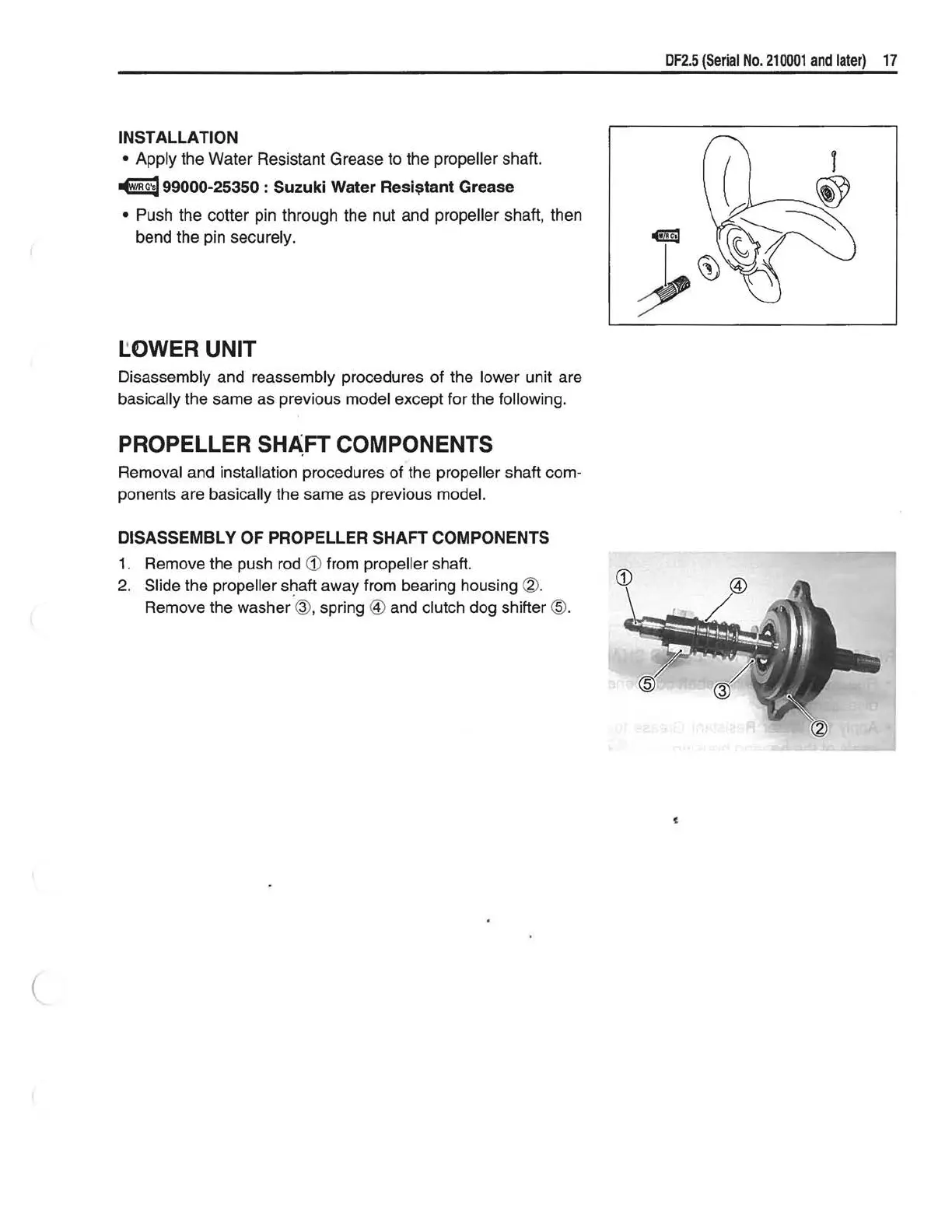

INSTALLATION
• Apply
the Water Resistant Grease to the propeller shaft.
•wJRG·a
99000-25350 :
Suzuki
Water Resi$tant Grease
• Push the cotter pin through the nut and propeller shaft, then
bend the pin
securely.
tOWER
UNIT
Disassembly and reassembly procedures of the lower unit are
basically the same as previous model except for the following.
PROPELLER SHAFT COMPONENTS
Removal and installation procedures of the propeller shaft com-
ponents are basically the same as previous model.
DISASSEMBLY
OF
PROPELLER SHAFT COMPONENTS
1.
Remove the push rod
CD
from propeller shaft.
2.
Slide the propeller away from bearing housing ®.
Remove the washer @, spring @ and clutch dog shifter @.
DF2.5
(Serial
No.
210001
and
later)
17
