Suzuki df2.5 Service Manual

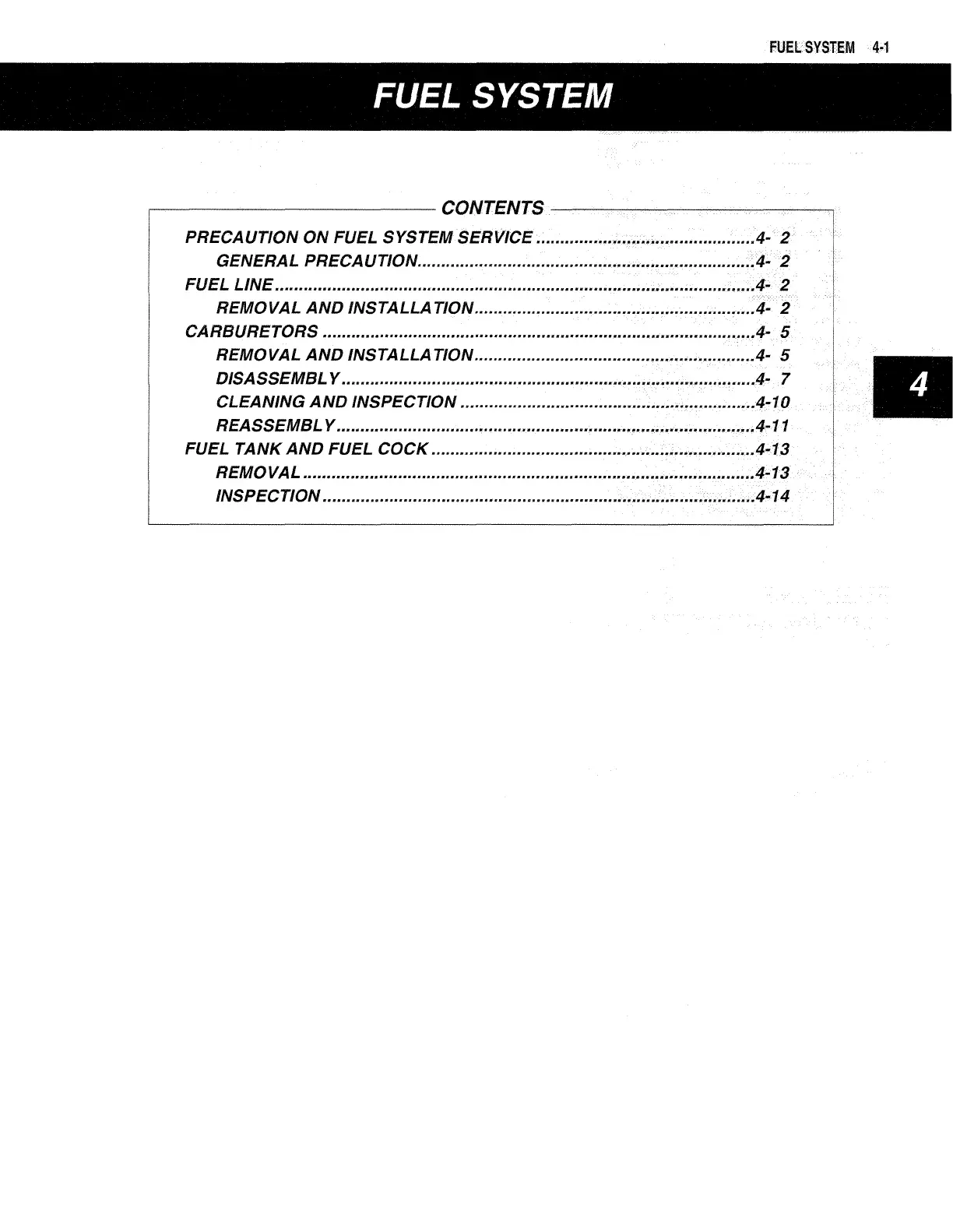

FUELSYSTEM 4·1
FUEL SYSTEM
,.......----------- CONTENTS -------,-----....,...-----,
PRECAUTION ON FUEL SYSTEM SERVICE ....................•... ; .................... .4-. 2
GENERAL
PRECAUTION ...........•.•.•.........................•...••.......•....•........... 4- 2
FUEL
LINE .......................................................................••.........•................•• 4._ 2
REMOVAL AND INSTALLATION ..........................•...........•................... .4- 2
CARBURETORS ......................................•..............................••.................... 4- 5
REMOVAL AND INSTALLATION .....................................•....•....•.......... .4- 5
DISASSEMBLY .......................................................•.............•.............•..• 4- 7
CLEANING AND INSPECTION ............................................................. .4-10
REASSEMBL Y ........................................................................................ 4-11
FUEL
TANK AND FUEL COCK .................................................................... 4-13
REMOVAL ............................................................................................... 4-13
INSPECTION ........................................................................................... 4-14

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
