Suzuki df2.5 Service Manual

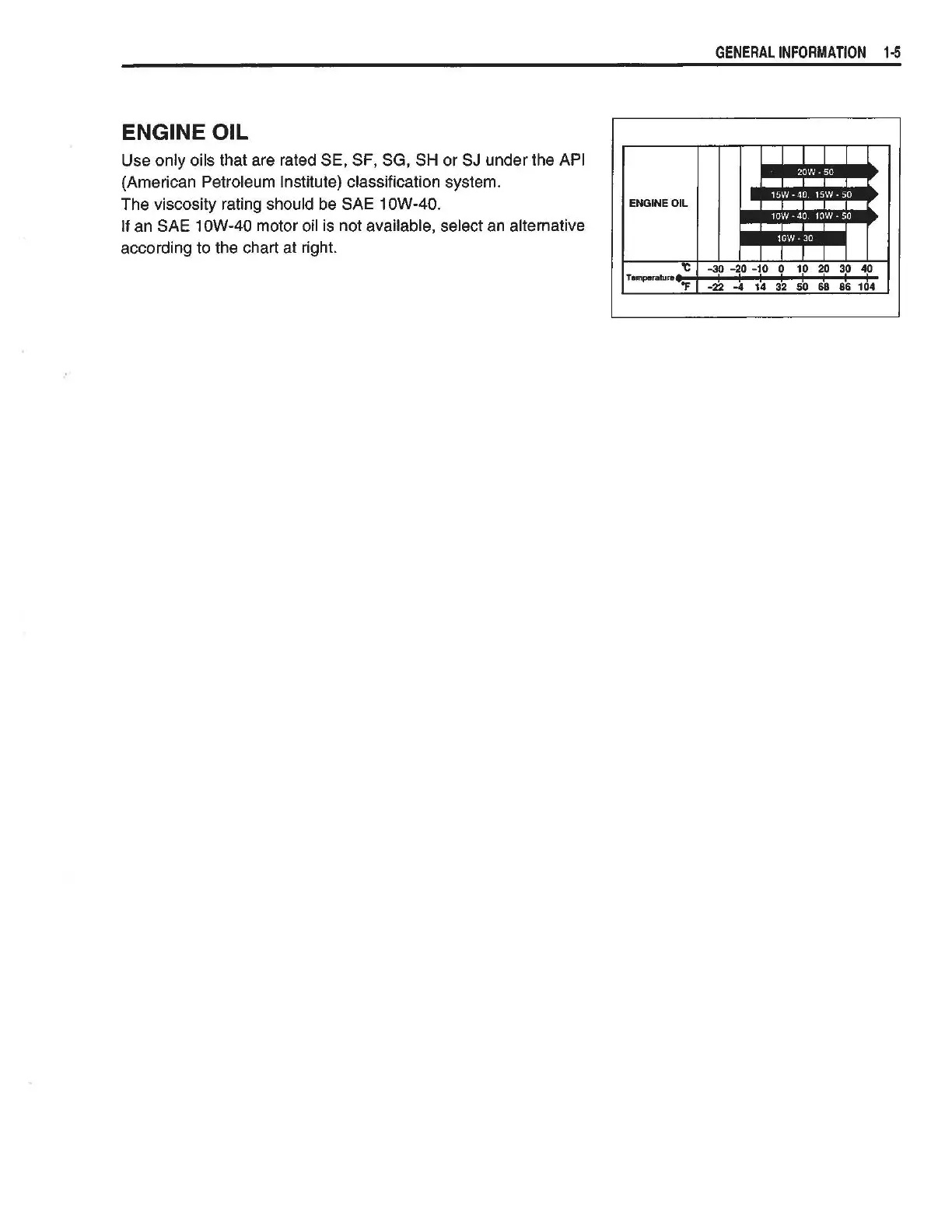

ENGINE OIL
Use only oils that are rated SE, SF, SG, SH or SJ under the API
(American Petroleum Institute) classification system.
The viscosity rating should be SAE 1 OW-40.
If an SAE 1 OW-40 motor oil is not available, select an alternative
according to the chart at right.
ENGINE OIL
'C
Tompel'lllure 4j:
GENERAL INFORMATION 1-5
I I I I l
' '
I
'
'
' '
I
' '
r I I I I
-30 -20 -10 0 10 20 30 40
-22 -4 14 32 50 68 86 104

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
