Suzuki df2.5 Service Manual

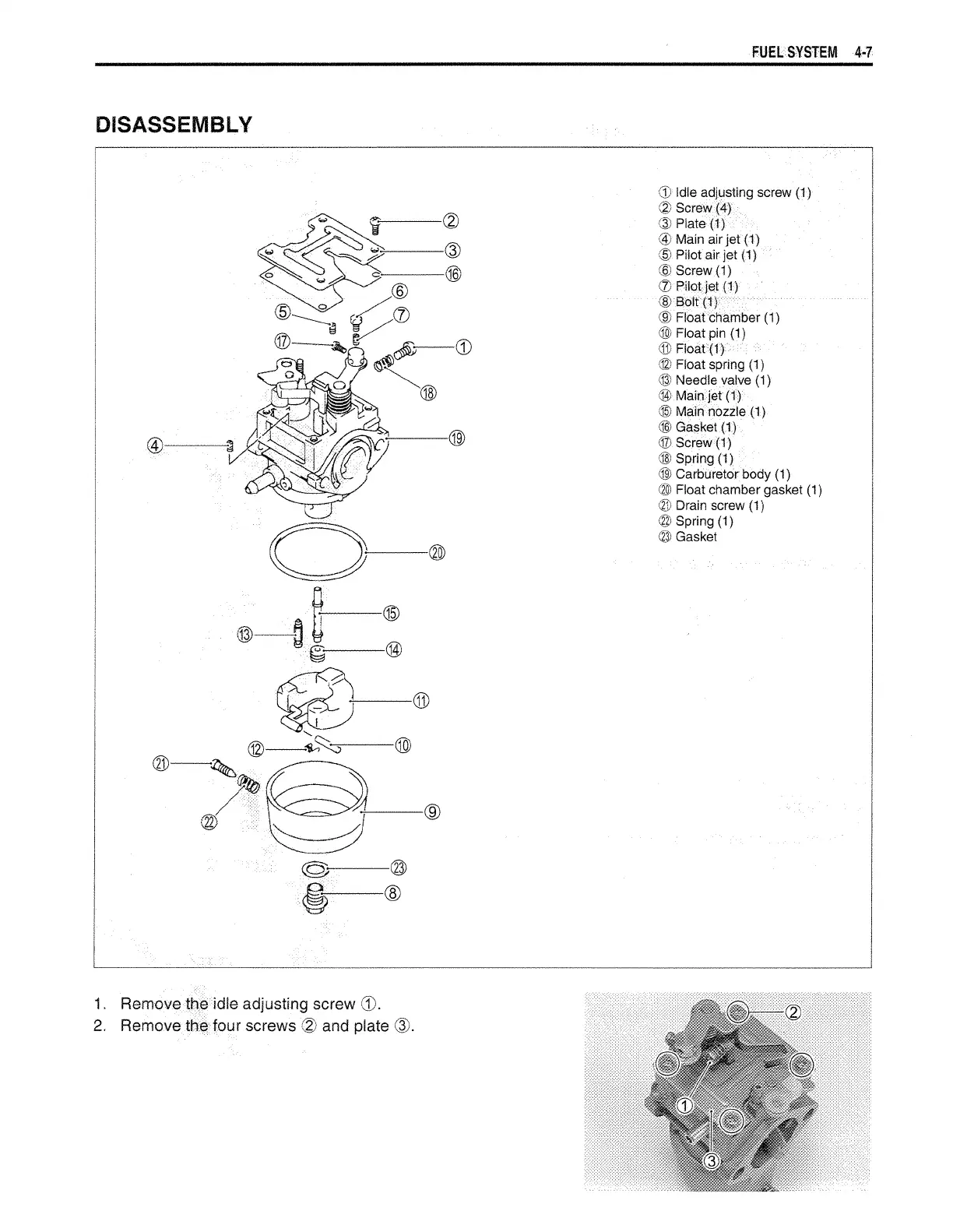

DISASSEMBLY
1. Remove the idle adjusting screw
--(2)
:':'---@
"------@)
2. Remove the four screws and plate @.
FUEL SYSTEM 4·7
Idle adjusting screw (1)
(2) Screw (4)
Plate (1)
Main air jet (1)
Pilot air jet(1)
Screw (1)
(J) Pilot jet { 1)
Bolt
®Float chamber (1)
Float pin (1)
Float(1)
Float spring (1)
Needle valve (1)
Main
jet(1)
Main nozzle (1)
Gasket (1)
Screw (1)
®l Spring (1)
@l Carburetor body (1)
® Float chamber gasket ( 1)
Drain screw (1)
@Spring (1)
®Gasket

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
