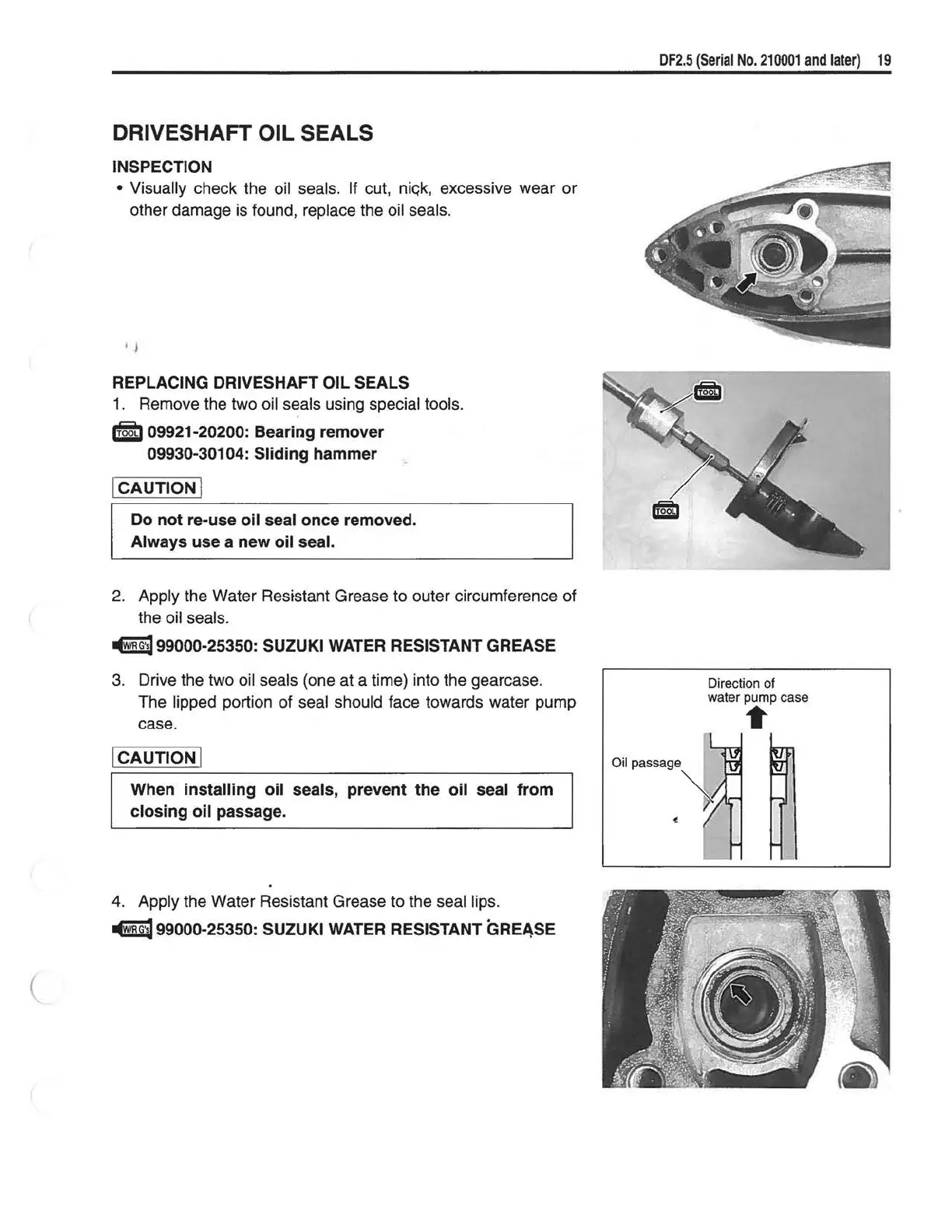

DRIVESHAFT OIL SEALS
INSPECTION
• Visually
check the oil seals. If cut,
niGk,
excessive wear or
other damage is found,
replace the oil seals .
• -1
REPLACING DRIVESHAFT OIL SEALS
1.
Remove the two oil seals using special tools.
i.ffidt!
09921-20200: Bearing remover
09930-30104:
Sliding
hammer
I
CAUTION
I
Do
not
re-use
oil
seal
once
removed.
Always
use
a
new
oil
seal.
2.
Apply the Water Resistant Grease to outer circumference of
the
oil seals.
99000-25350: SUZUKI WATER RESISTANT GREASE
3.
Drive the two oil seals (one at a time) into the gearcase.
The
lipped portion of seal should face towards water pump
case.
I
CAUTION
I
When
installing
oil
seals,
prevent
the
oil
seal
from
closing
oil
passage.
4.
Apply the Water Resistant Grease to the seal lips .
•
wiRG's]
99000-25350: SUZUKI WATER RESISTANT
DF2.5
(Serial
No.
21
0001
and
later)
19
Direction of
water pump case
•
To Next Page
