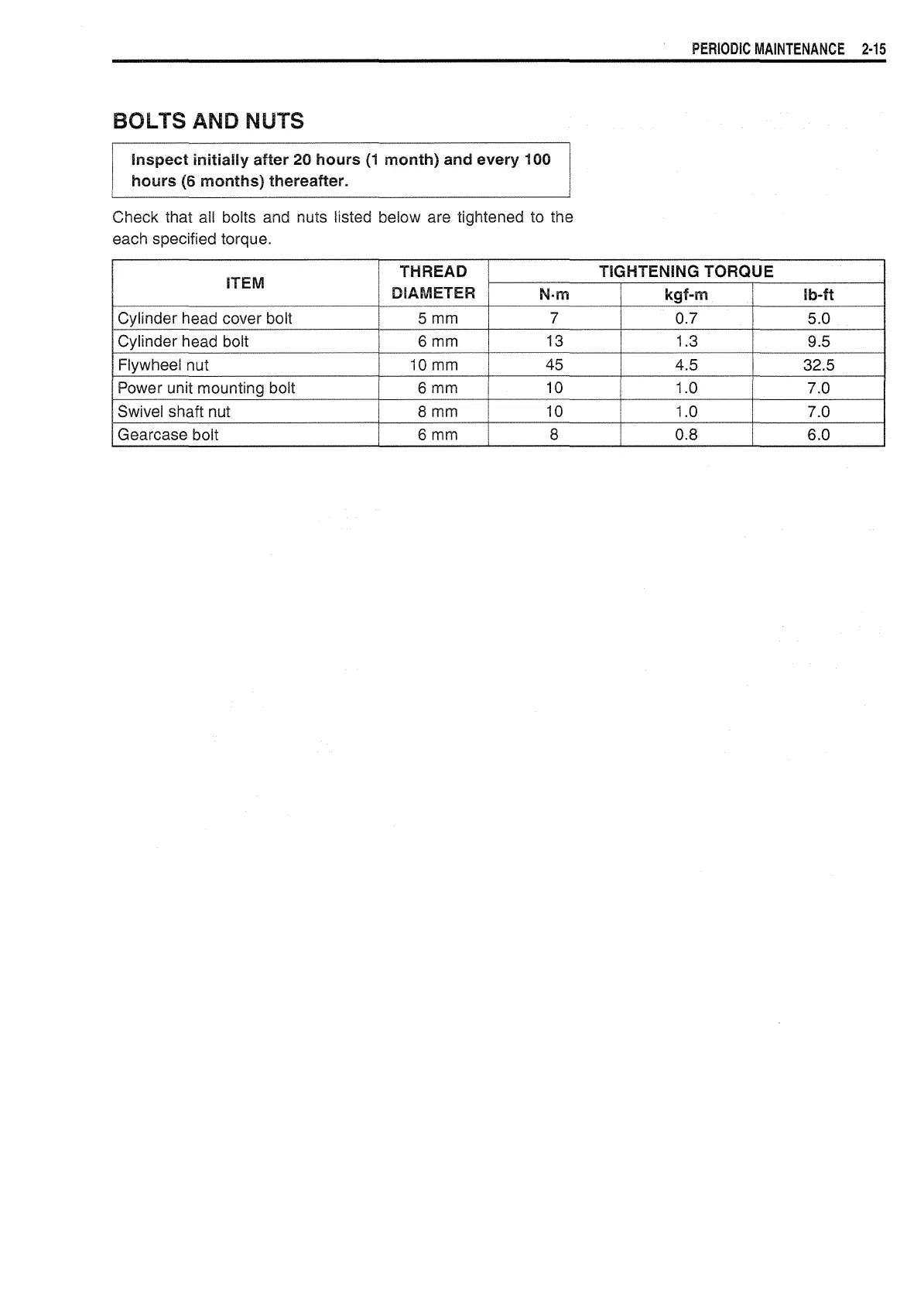

BOLTS AND NUTS
Inspect initially after 20 hours (1 month) and every 100
hours (6 months) thereafter.
Check that all bolts and nuts listed below are tightened to the
each specified torque.
ITEM
I
THREAD
DIAMETER
N·m
Cylinder
head cover bolt 5mm
7
Cylinder head bolt 6mm
I
13
Flywheel nut 10 mm 45
Power unit mounting
bolt
6mm 10
Swivel
shaft nut
I
8mm
I
10
I
I
Gearcase bolt
6mm 8
PERIODIC MAINTENANCE 2·15
TIGHTENING TORQUE
kgf-m
lb-ft
0.7
5.0
1.3 9.5
4.5
32.5
I
1.0
7.0
I
1.0 7.0
I
I
0.8
6.0

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
