Suzuki df2.5 Service Manual

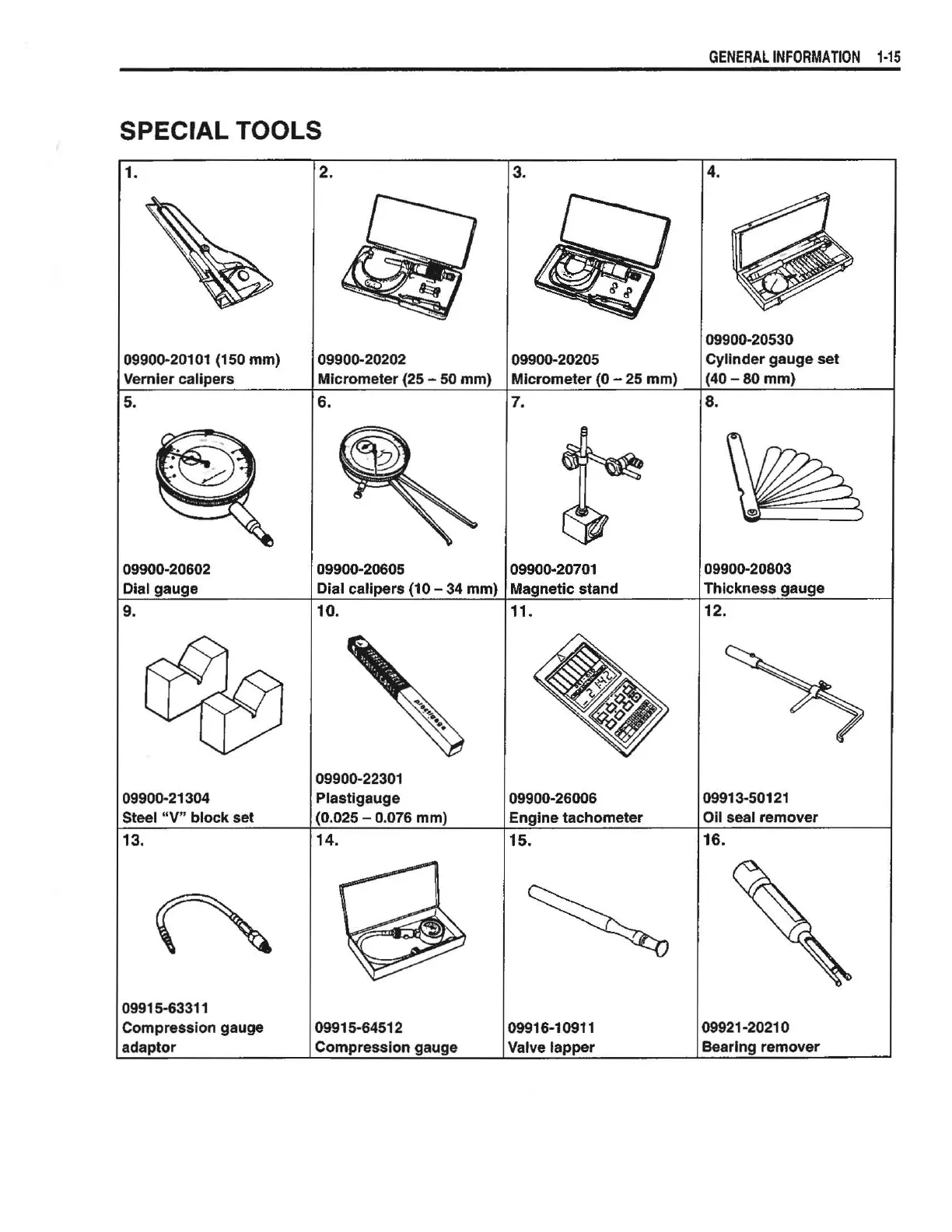

SPECIAL TOOLS
1.
09900-20101 (150 mm)
Vernier
calipers
5.
09900-20602
Dial gauge
9.
09900-21304
Steel "V " block set
13.
09915-63311
Compression gauge
adaptor
2.
09900-20202
Micrometer (25- 50 mm)
6.
09900-20605
Dial calipers (1 0 - 34 mm)
10.
09900-22301
Plastigauge
(0.025- 0.076 mm)
14.
09915-64512
Compression gauge
3.
09900-20205
Micrometer (0- 25 mm)
7.
09900-20701
Magnetic stand
11.
09900-26006
Engine tachometer
15.
09916-10911
Valve lapper
GENERAL INFORMATION 1-15
4.
09900-20530
Cylinder gauge set
(40-80 mm)
8.
09900-20803
Thickness gauge
12.
09913-50121
Oil seal remover
16.
09921 -2021 0
Bearing remover

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
