Suzuki df2.5 Service Manual

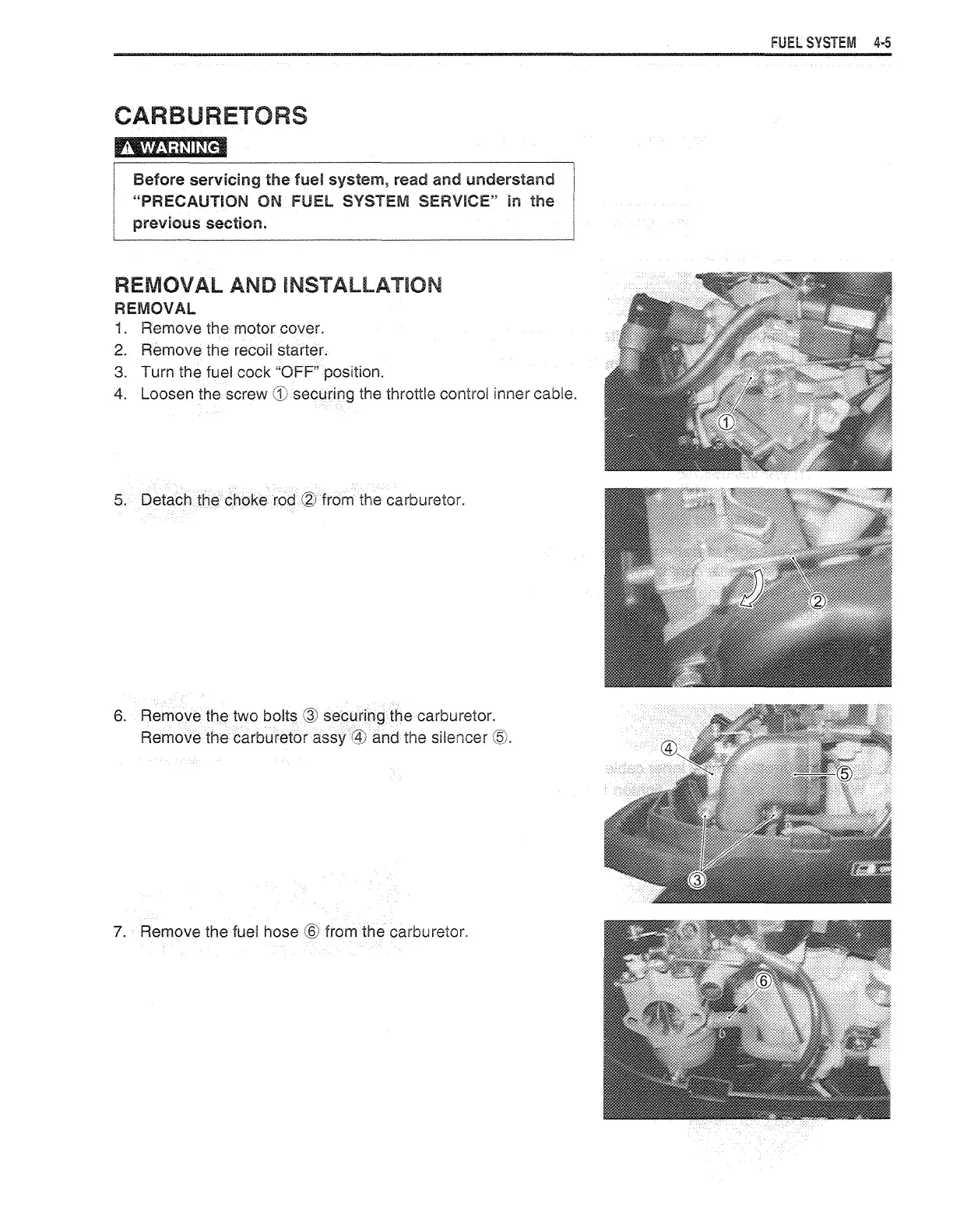

CARBURETORS
Before servicing the fuel system, read and understand
"PRECAUTION ON FUEL SYSTEM SERVICE" in the
previous section.
REMOVAL AND INSTALLATION
REMOVAL
1. Remove the motor cover.
2. Remove the recoil starter.
3. Turn the fuel cock "OFF" position.
4. Loosen the screw securing the throttle control inner cable.
5. Detach the c.hoke rod from the carburetor.
6. Remove the two bolts securing the carburetor.
Remove the carburetor assy and the silencer
7. Remove the fuel hose from the carburetor.
FUEL SYSTEM 4·5

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
