Suzuki df2.5 Service Manual

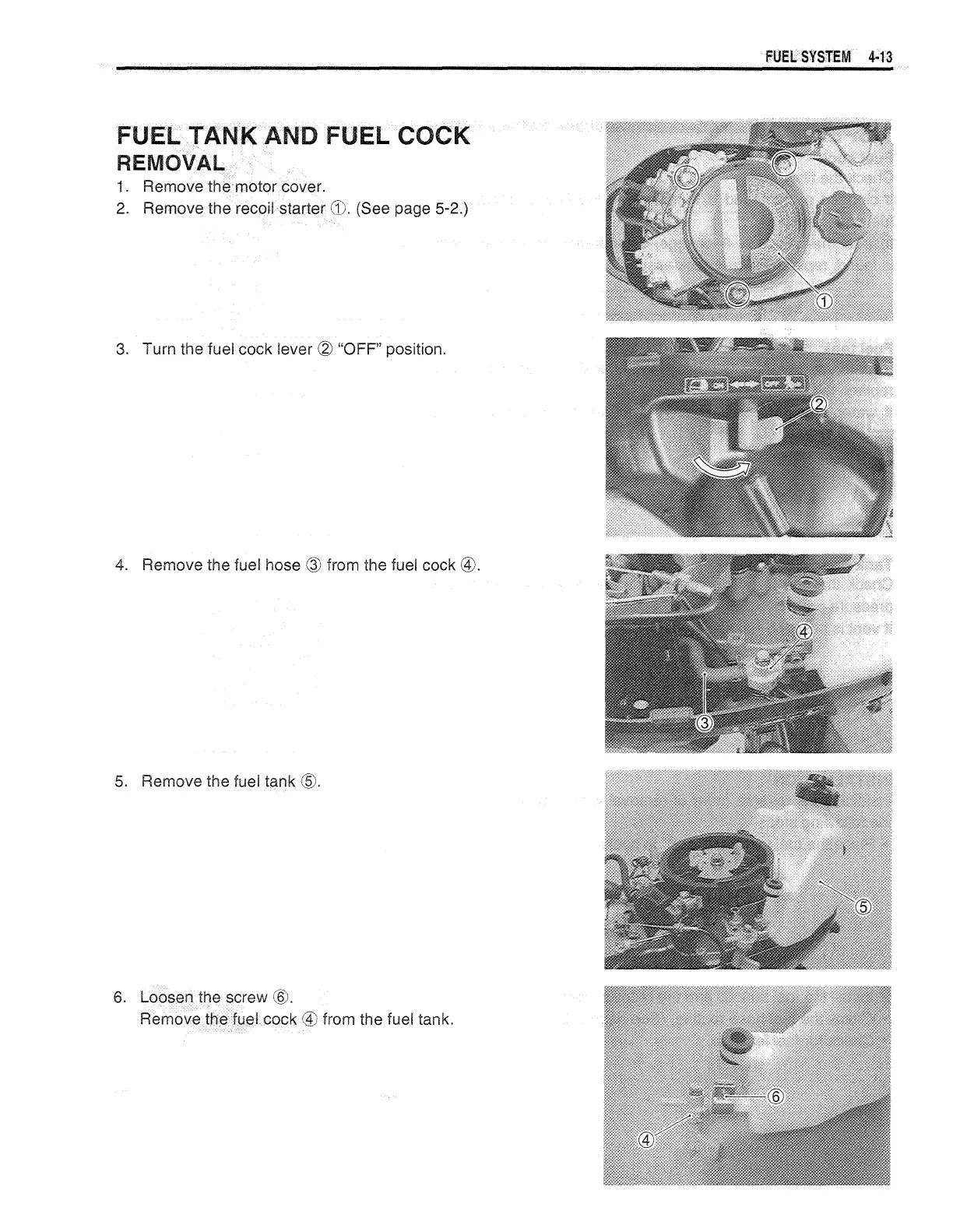

FUEL TANK AND FUEL COCK
REMOVAL
1. Remove the motor cover.
2. Remove the recoil starter (See page 5-2.)
3. Turn the fuel cock lever C2> "OFF" position.
4. Remove the fuel hose @ from the fuel cock@.
5. Remove the fuel tank
6. Loosen the screw
Remove the fueLcock from the
fuel tank.
FUELSVSTEM 4·13

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
