16 DF2.5 (Serial No. 410001 and later)
CARBURETOR (For all markets except for US market)
OUTLINE
The carburetor setting has been changed.
REASSEMBLY

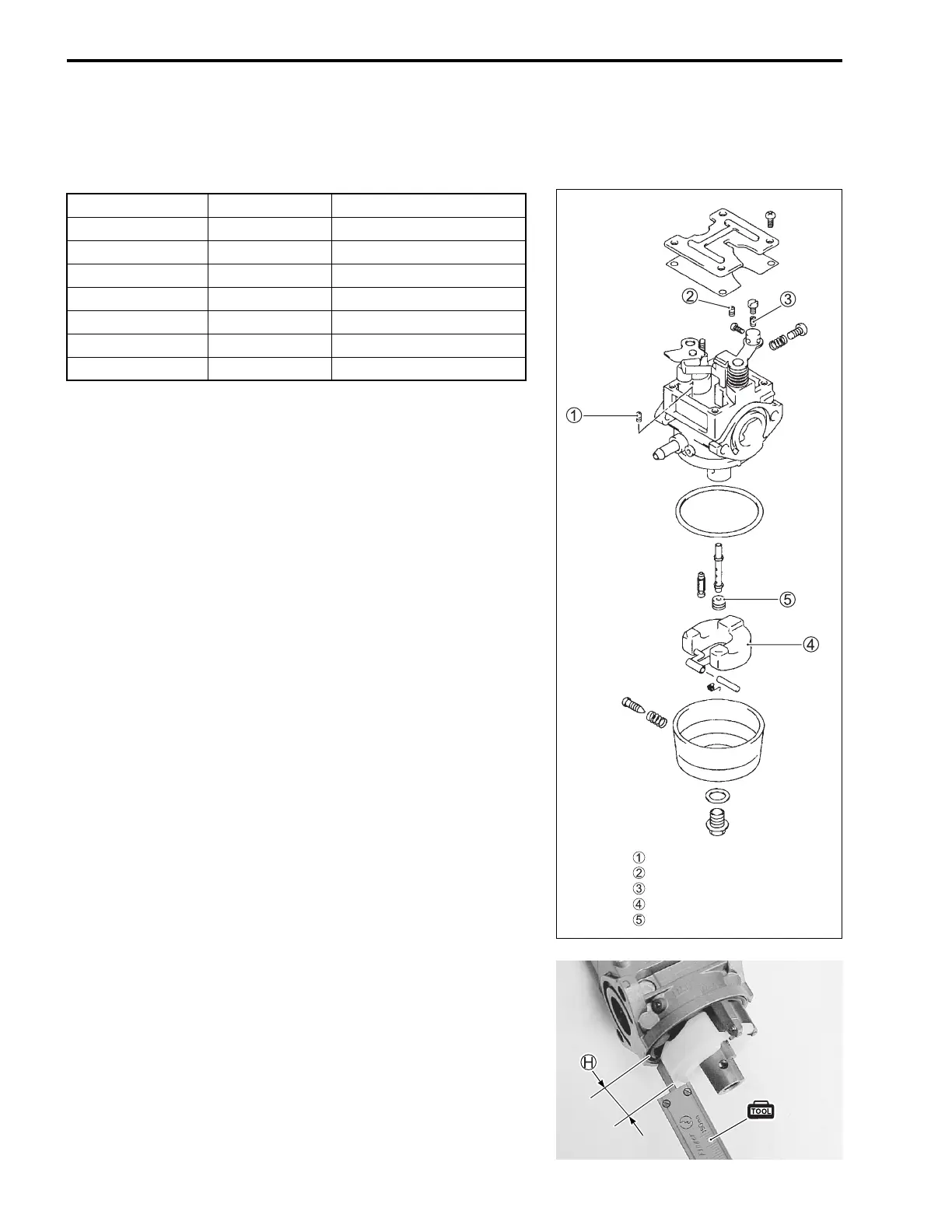

CHECKING FLOAT HEIGHT
Measure the float height.
NOTE:
Make sure that float weight is not applied to needle valve.
\ 09900-20101: Vernier calipers
Float height H: 14.3 ± 2 mm
Typ e Wa lb r o LM J -57
I.D mark LMJ-57
Main jet # 62 (no change)
Main air jet # 160
Pilot jet # 35
Pilot air jet # 95
Pilot screw Turns open Pre-set (2-5/8 ± 3/4)
Float height mm 14.3 ± 2
Main air jet
Pilot air jet
Pilot jet
Float
Main jet

Suzuki df2.5 Specifications

General

Starting System	Manual
Fuel Tank Capacity	1.0 L
Number of Cylinders	1
Full Throttle Operating Range	5250 - 5750 RPM
Steering	Tiller
Displacement	68 cm3 (4.2 cu.in.)
Max Output	2.5 hp
Weight	13.5 kg
Ignition System	CDI
Bore x Stroke	48 x 38 mm (1.9 x 1.5 in.)
