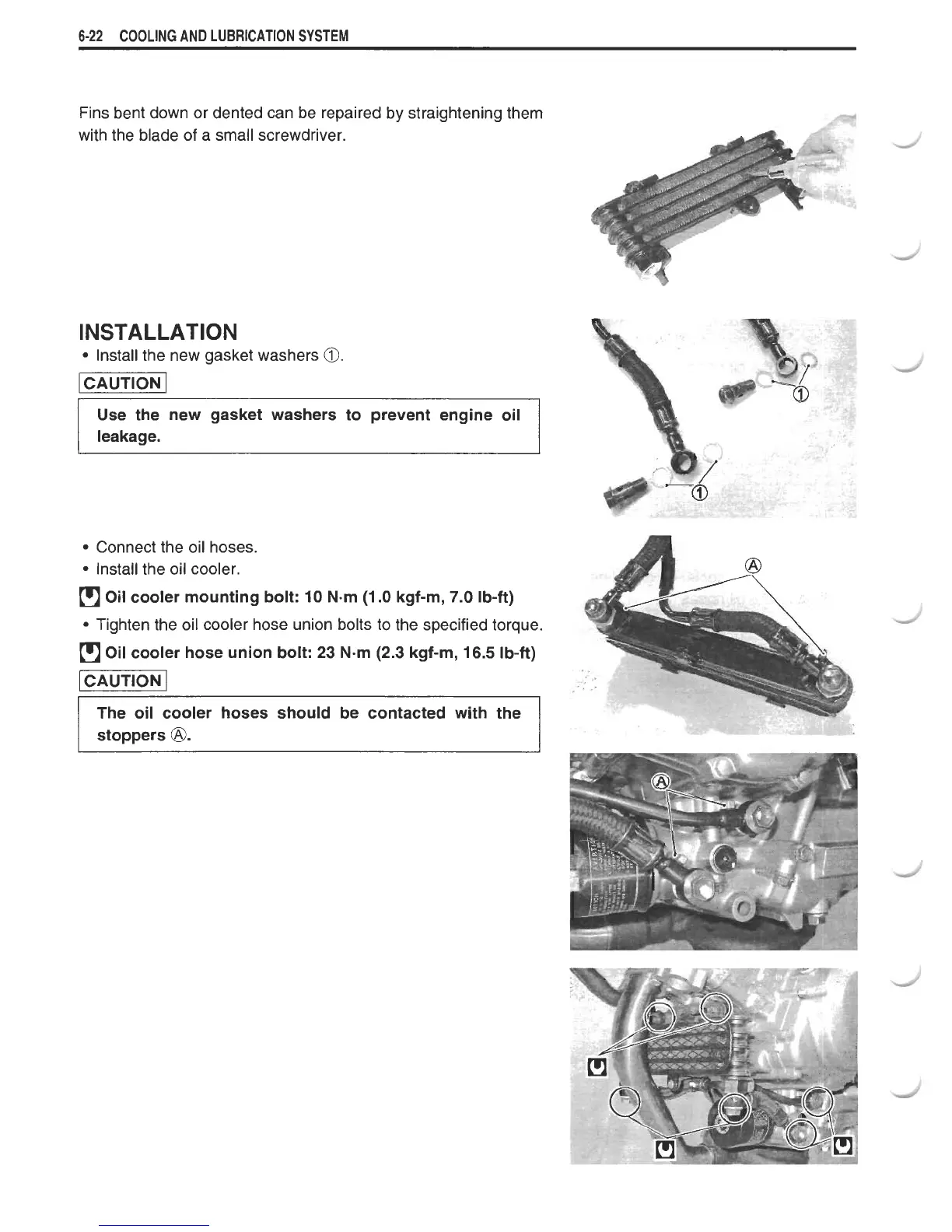

6-22
COOLING
AND
LUBRICATION
SYSTEM
Fins bent down or dented can be repaired by straightening them
with the blade of a small screwdriver.
INSTALLATION
Install the new gasket washers
@.
Use the new gasket washers to prevent engine oil
leakage.
Connect the oil hoses.
Install the oil cooler.
rn
Oil cooler mounting bolt: 10 N-m (1.0 kgf-m, 7.0 Ib-ft)
Tighten the oil cooler hose union bolts to the specified torque.
rn
Oil cooler hose union bolt: 23 N-m (2.3 kgf-m, 16.5 Ib-ft)
piiEq
The oil cooler hoses should be contacted with the
stoppers
@.
