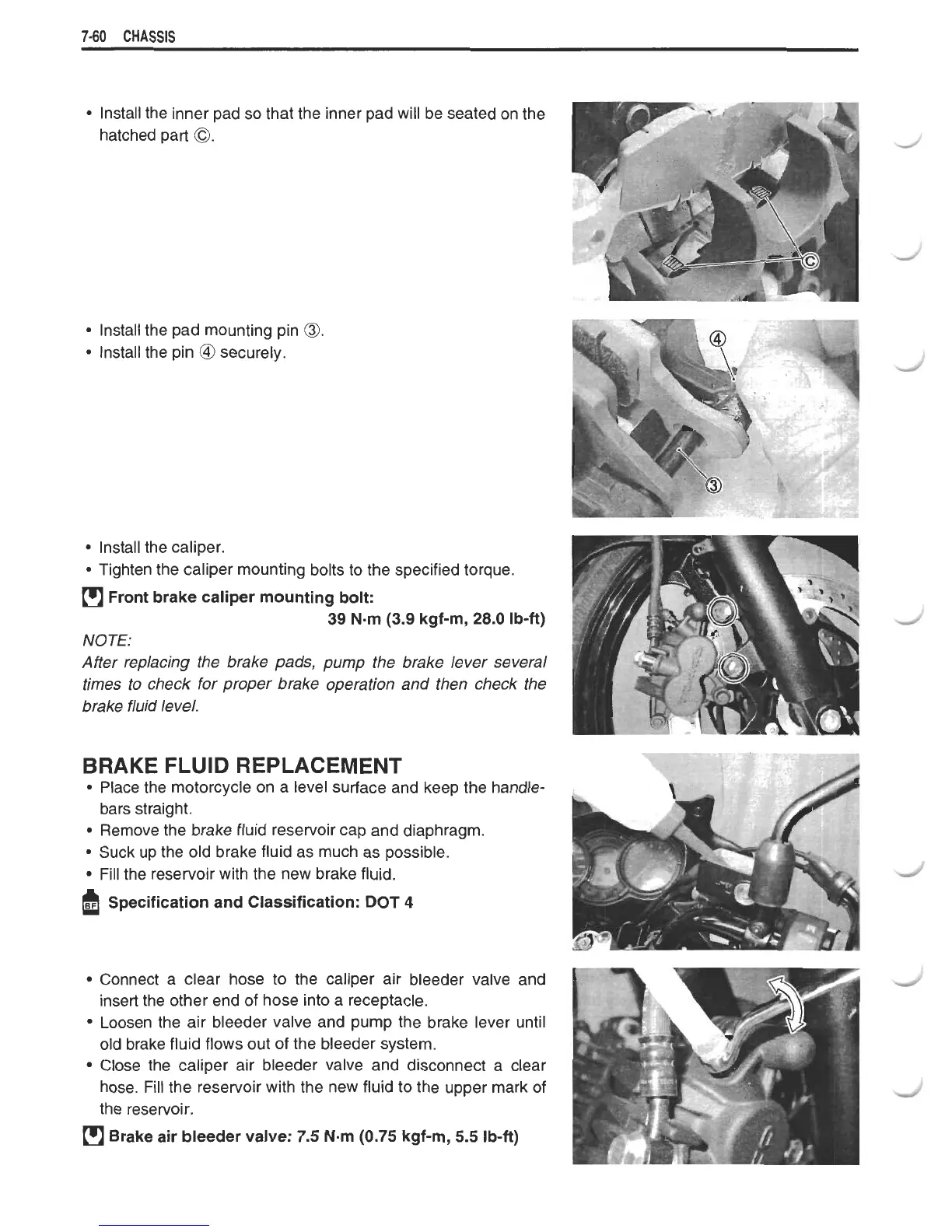

7-60 CHASSIS
Install the inner pad so that the inner pad will be seated on the
hatched part
0.
Install the pad mounting pin 0.
Install the pin @ securely.
Install the caliper.
Tighten the caliper mounting bolts to the specified torque.
Front brake caliper mounting bolt:
39 N-m (3.9 kgf-m, 28.0 Ib-ft)
NOTE:
After replacing the brake pads, pump the brake lever several
times to check for proper brake operation and then check the
brake fluid level.
BRAKE FLUID REPLACEMENT
Place the motorcycle on a level surface and keep the handle-
bars straight.
Remove the brake fluid reservoir cap and diaphragm.
Suck up the old brake fluid as much as possible.
Fill the reservoir with the new brake fluid.
fi Specification and Classification: DOT 4
Connect a clear hose to the caliper air bleeder valve and
insert the other end of hose into a receptacle.
Loosen the air bleeder valve and pump the brake lever until
old brake fluid flows out of the bleeder system.
Close the caliper air bleeder valve and disconnect a clear
hose. Fill the reservoir with the new fluid to the upper mark of
the reservoir.
Brake air bleeder valve: 7.5 N-m (0.75 kgf-m, 5.5 Ib-ft)
