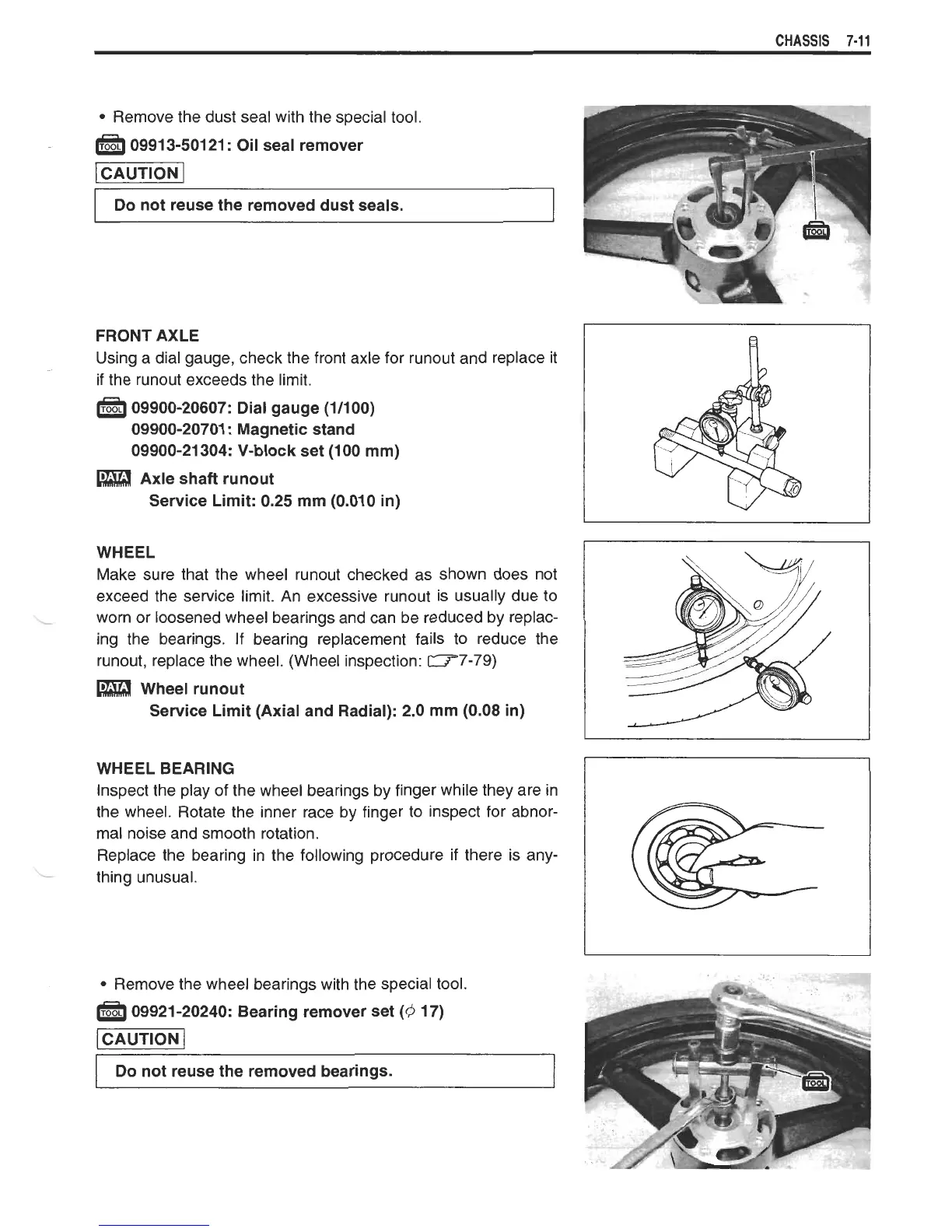

CHASSIS 7-11
Remove the dust seal with the special tool.
0991 3-501 21 : Oil seal remover
piEi5q
Do not reuse the removed dust seals.
FRONT AXLE
Using a dial gauge, check the front axle for runout and replace it
if the runout exceeds the limit.
09900-20607: Dial gauge (11100)
09900-20701
: Magnetic stand
09900-21304: V-block set (100 mm)
rn Axle shaft runout
Service Limit: 0.25 mm (0.010 in)
WHEEL
Make sure that the wheel runout checked as shown does not
exceed the service limit. An excessive runout is usually due to
-
worn or loosened wheel bearings and can be reduced by replac-
ing the bearings. If bearing replacement fails to reduce the
runout, replace the wheel. (Wheel inspection:
-7-79)
rn Wheel runout
Service Limit (Axial and Radial): 2.0 mm (0.08 in)
WHEEL BEARING
Inspect the play of the wheel bearings by finger while they are in
the wheel. Rotate the inner race by finger to inspect for abnor-
mal noise and smooth rotation.
Replace the bearing in the following procedure if there is any-
- thing unusual.
Remove the wheel bearings with the special tool.
@ 09921 -20240: Bearing remover set (Q 17)
pE6q
Do not reuse the removed bearings.
