7-78
CHASSIS

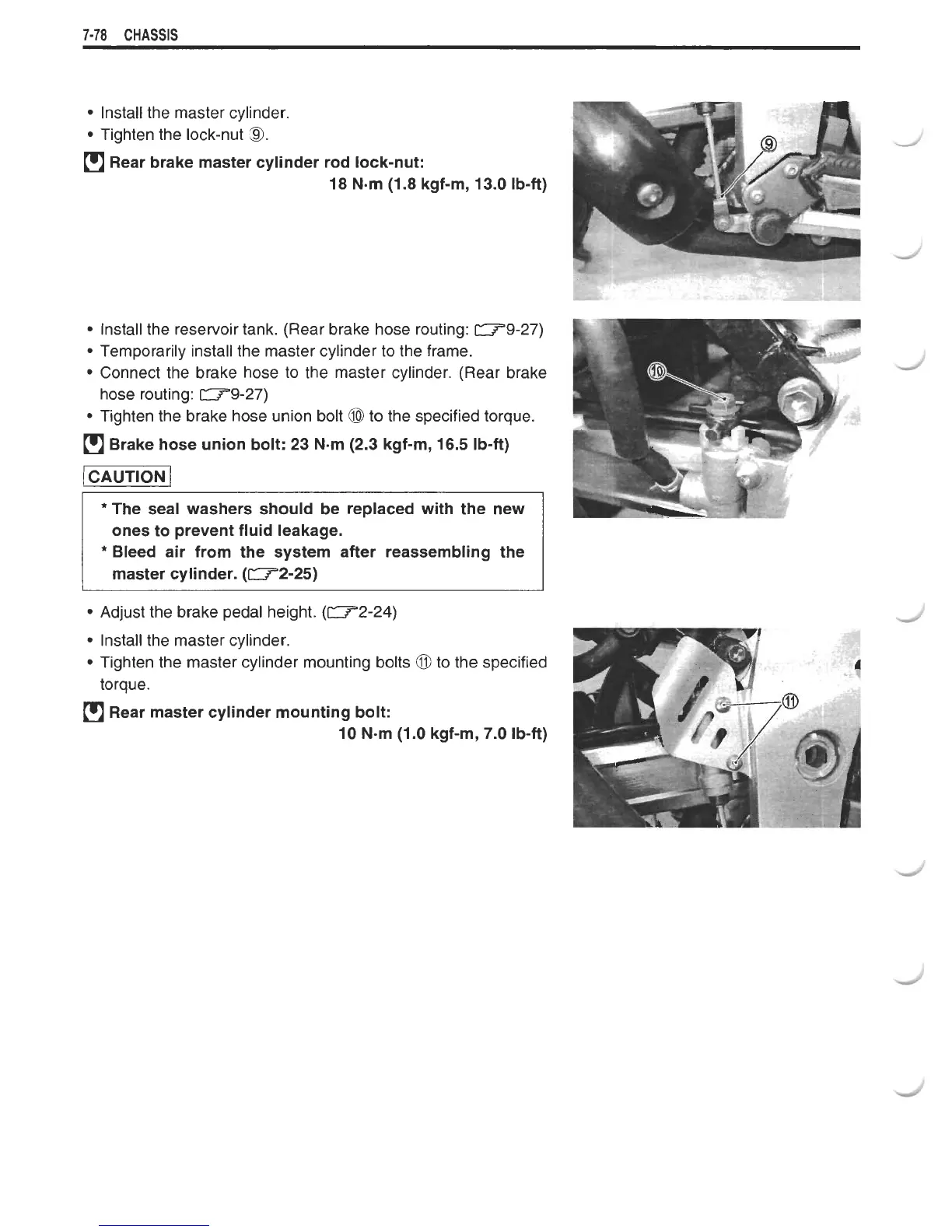

lnstall the master cylinder.
Tighten the lock-nut
3.
[I]
Rear brake master cylinder rod lock-nut:
18
N-m
(1.8
kgf-m,
13.0
Ib-ft)
Install the reservoir tank. (Rear brake hose routing: W9-27)
Temporarily install the master cylinder to the frame.
Connect the brake hose to the master cylinder. (Rear brake
hose routing: W9-27)
Tighten the brake hose union bolt
@D
to the specified torque.
[I]
Brake hose union bolt:
23
N-m
(2.3
kgf-m,
16.5
Ib-ft)
pmiq
The seal washers should be replaced with the new
ones to prevent fluid leakage.
Bleed air from the system after reassembling the
master cylinder.
(W2-25)
Adjust the brake pedal height. (W2-24)
lnstall the master cylinder.
Tighten the master cylinder mounting bolts to the specified
torque.
[I]
Rear master cylinder mounting bolt:
10
N-m
(1.0
kgf-m,
7.0
Ib-ft)
