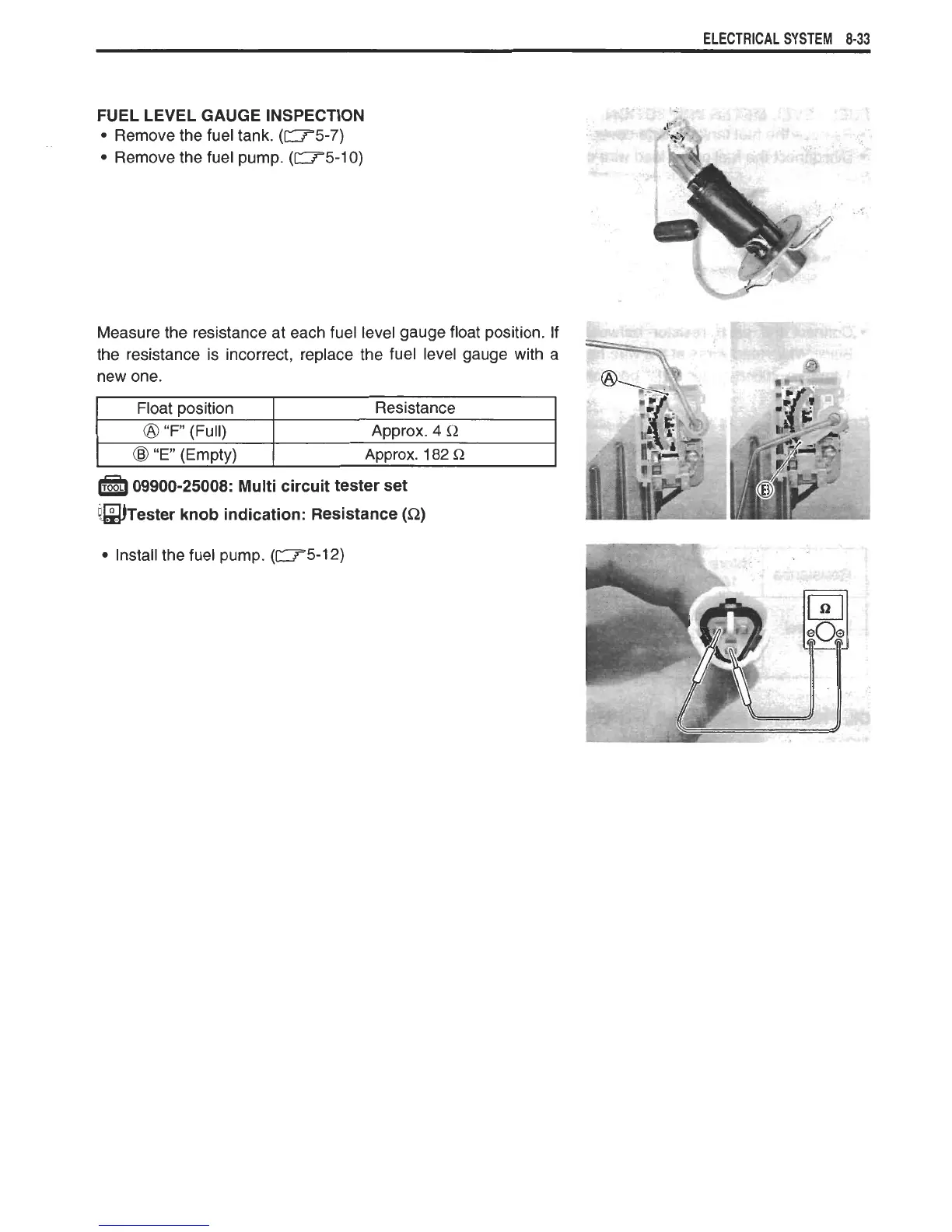

ELECTRICAL SYSTEM 8-33
FUEL LEVEL GAUGE INSPECTION
Remove the fuel tank. (-5-7)
Remove the fuel pump. (-5-1 0)
Measure the resistance at each fuel level gauge float position. If
the resistance is incorrect, replace the fuel level gauge with a
=-----
.k
new one.
I Float position Resistance I
09900-25008: Multi circuit tester set
um~ester knob indication: Resistance
(GI)
8 "F (Full)
@ “E" (Empty)
-
Install the fuel pump. (-5-12)
Approx. 4 R
Approx. 182 R
