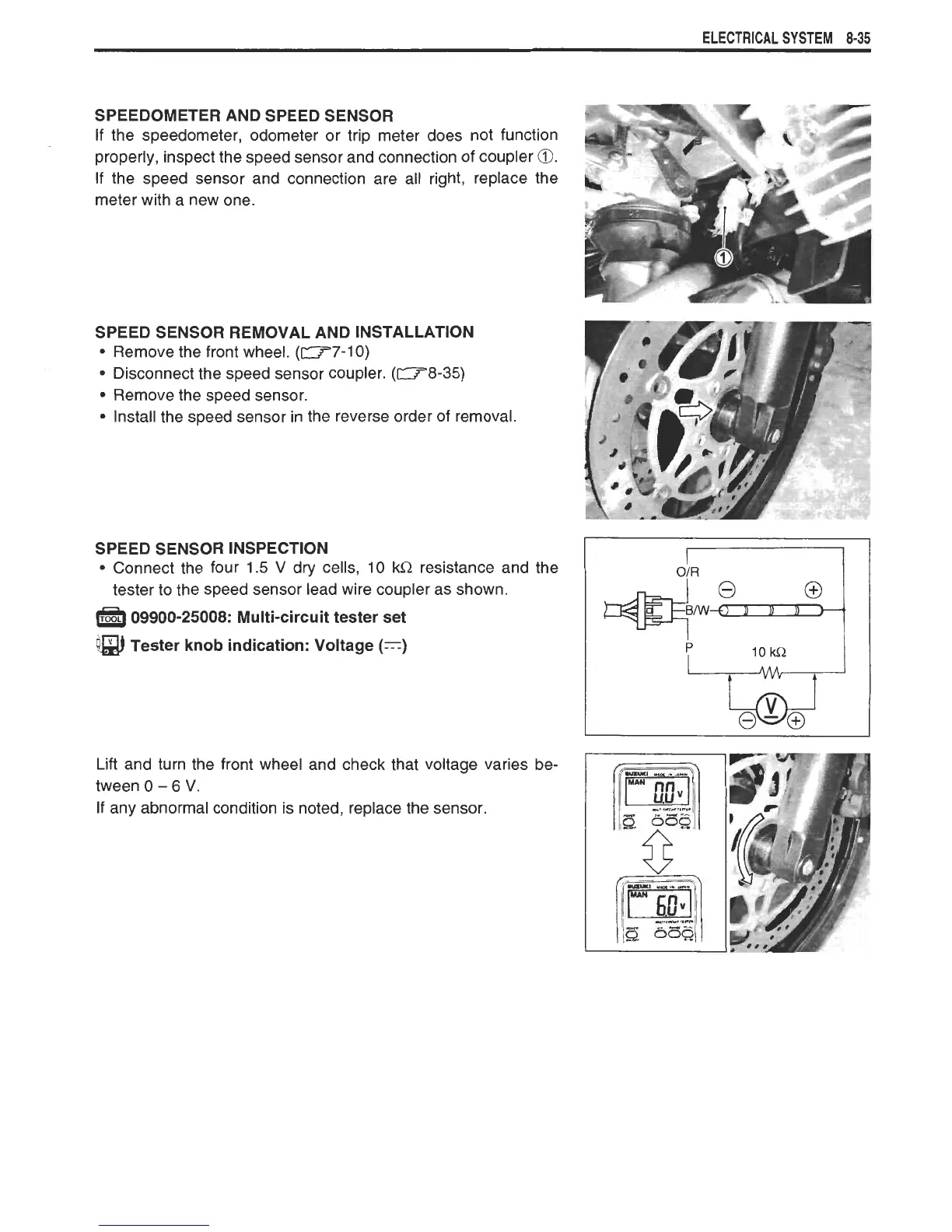

SPEEDOMETER AND SPEED SENSOR
If the speedometer, odometer or trip meter does not function
properly, inspect the speed sensor and connection of coupler
@I.
If
the speed sensor and connection are all right, replace the
meter with a new one.
SPEED SENSOR REMOVAL AND INSTALLATION
Remove the front wheel.
(-7-1 0)
Disconnect the speed sensor coupler.
(W8-35)
Remove the speed sensor.
Install the speed sensor in the reverse order of removal.
SPEED SENSOR INSPECTION
Connect the four
1.5
V
dry cells,
10
kQ resistance and the
tester to the speed sensor lead wire coupler as shown.
09900-25008: Multi-circuit tester set
Q)
Tester knob indication: Voltage
(=)
Lift and turn the front wheel and check that voltage varies be-
tween
0
-
6
V.
If any abnormal condition is noted, replace the sensor.
