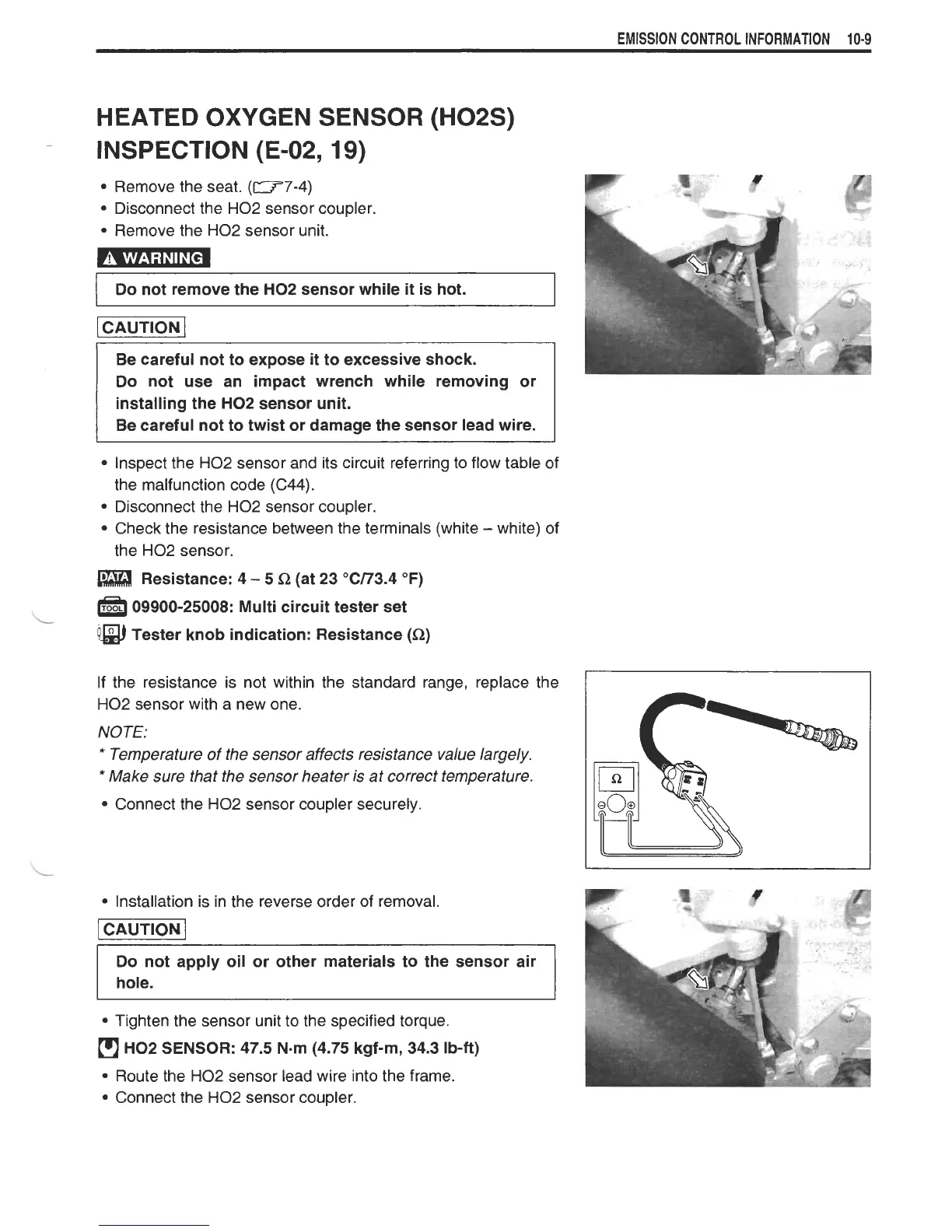

EMISSION CONTROL INFORMATION 10-9
HEATED OXYGEN SENSOR (H02S)
INSPECTION (E-02,
19)
Remove the seat. (W7-4)
Disconnect the
H02 sensor coupler.
Remove the
H02 sensor unit.
I Do not remove the H02 sensor while it is hot.
I
Be careful not to expose it to excessive shock.
Do not use an impact wrench while removing or
installing the H02 sensor unit.
Inspect the H02 sensor and its circuit referring to flow table of
the malfunction code (C44).
Disconnect the
H02 sensor coupler.
Check the resistance between the terminals (white
- white) of
the
H02 sensor.
Resistance: 4 - 5 R (at 23 "Cn3.4 OF)
09900-25008: Multi circuit tester set
L
g) Tester knob indication: Resistance (R)
If the resistance is not within the standard range, replace the
H02 sensor with a new one.
NOTE:
* Temperature of the sensor affects resistance value largely.
* Make sure that the sensor heater is at correct temperature.
Connect the H02 sensor coupler securely.
Installation is in the reverse order of removal.
I CAUTION I
Do not apply oil or other materials to the sensor air
hole.
Tighten the sensor unit to the specified torque.
H02 SENSOR: 47.5 Nm (4.75 kgf-m, 34.3 Ib-ft)
Route the H02 sensor lead wire into the frame.
Connect the
H02 sensor coupler.
