FI SYSTEM AND INTAKE AIR SYSTEM 4-61
THROTTLE BODY AND STV ACTUATOR
REMOVAL

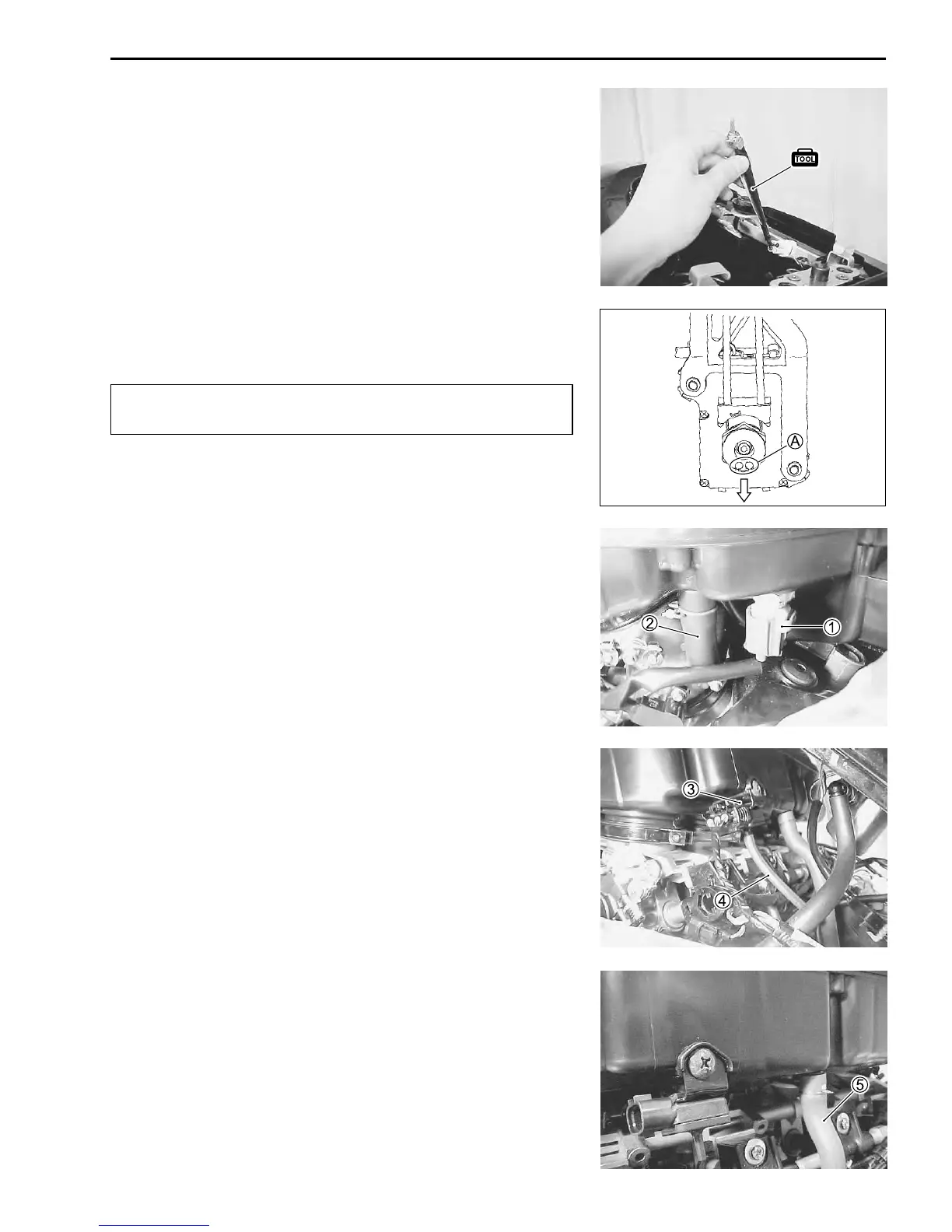

ADJUSTMENT POSITION SETTING PROCEDURE
• Turn the ignition switch OFF.
• Remove the rear seat.
• Connect the special tool to the dealer mode coupler.
• After turning the special tool’s switch ON, turn the ignition switch
ON.
[ 09930-82710: Mode select switch
• Check the slot A of the STV actuator facing downward as
shown.
#
Before removing the throttle body, be sure to set the STV
actuator to the adjustment position.
AIR CLEANER BOX
• Lift and support the fuel tank with its prop stay. (4-51)
• Disconnect the IAT sensor coupler 1 and PAIR hose 2.
• Disconnect the IAP sensor 3 and vacuum hose 4.
• Disconnect the crankcase breather hose 5.
To Next Page
