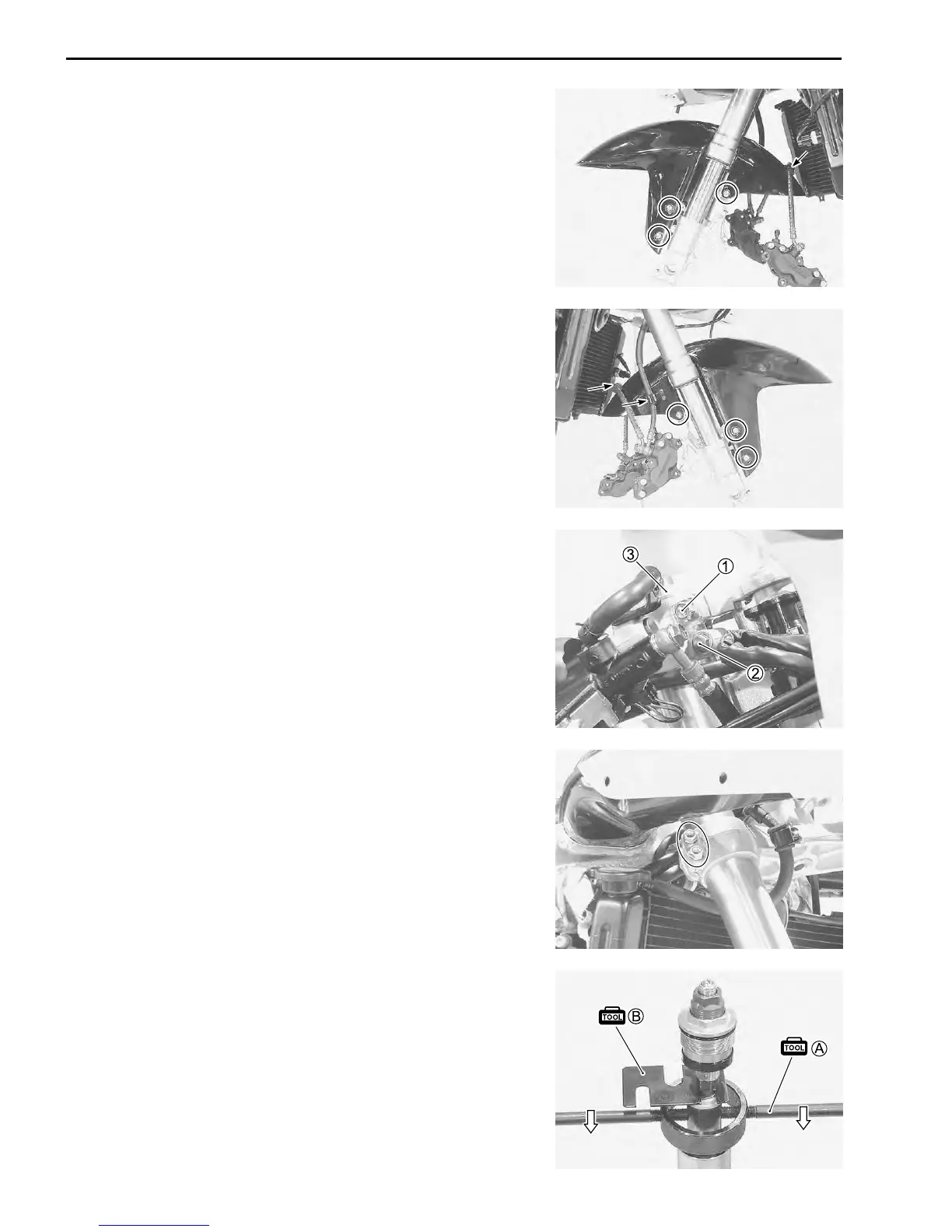

6-18 CHASSIS
REMOVAL AND DISASSEMBLY
• Remove the body cowling. ( 6-6)
• Remove the front wheel. ( 6-11)
• Disconnect the brake hose from the brake hose guides on the
front fender.
• Remove the front fender.
• Loosen the front fork upper clamp bolts 1, left and right.
• Loosen the handlebar clamp bolts 2, left and right.
NOTE:
Slightly loosen the front fork cap bolts
3
before loosening the
lower clamp bolts to facilitate later disassembly.
• Loosen the front fork lower clamp bolts, left and right.
• Remove the front forks, left and right.
• Loosen the front fork cap bolt.
• Compress the front fork spring with the special tool A and
insert the stopper plate B between the lock nut and the washer.
[ 09940-94930: Front fork spacer holder A
09940-94922: Stopper plate B (13 mm)
To Next Page
