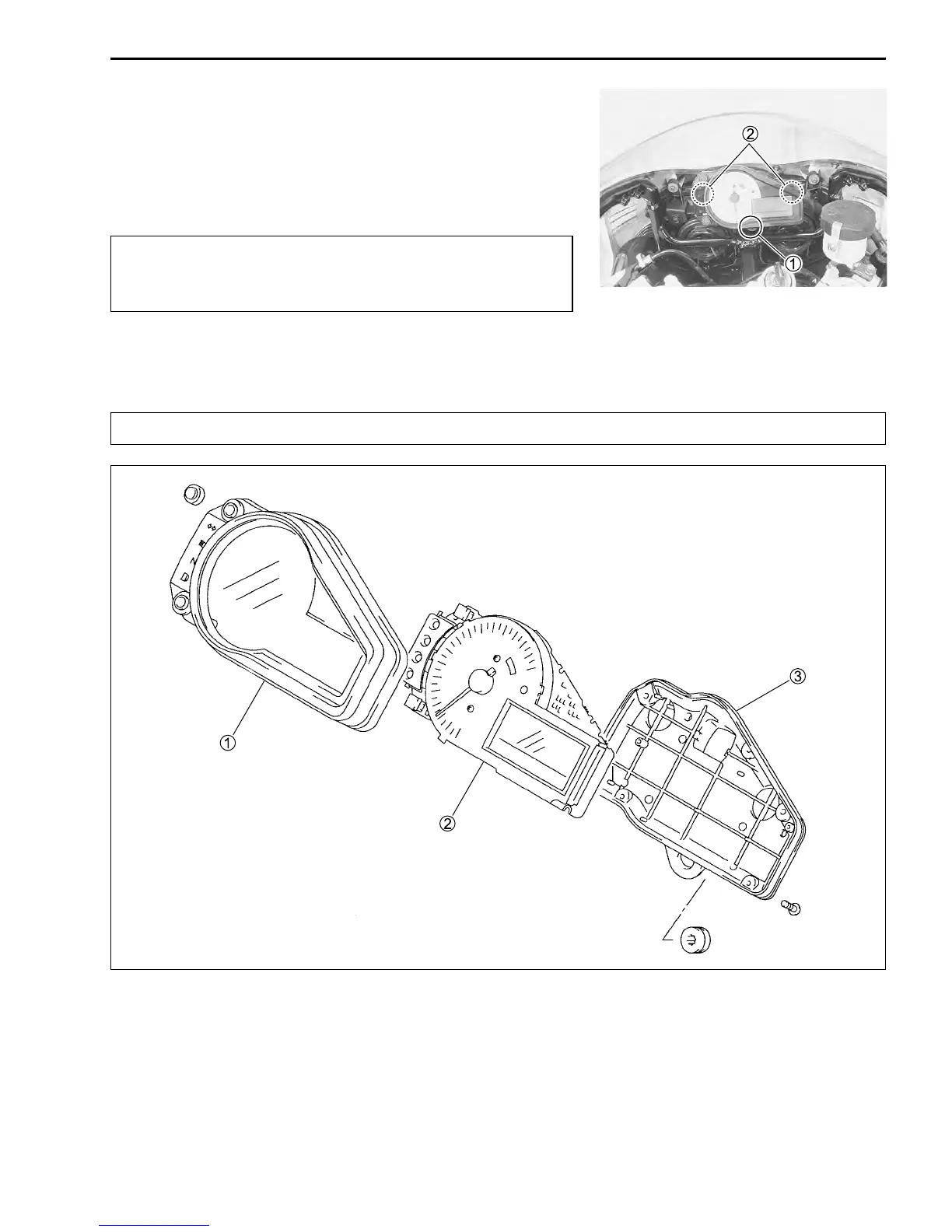

ELECTRICAL SYSTEM 7-31
REMOVAL
• Remove the screw 1.
• Draw out the hook 2 from the body cowling.
• Disconnect the lead wire coupler.
• Remove the combination meter.

When disconnecting and connecting the combination
meter coupler, make sure to turn OFF the ignition switch,
or electronic parts may get damaged.
DISASSEMBLY
• Disassemble the combination meter as follows.

Do not attempt to disassemble the combination meter unit 2.
1 Combination meter cover
2 Combination meter unit
3 Combination meter case
To Next Page
