ELECTRICAL SYSTEM 7-17
SIDE-STAND/IGNITION INTERLOCK SYSTEM
PART INSPECTION
If the interlock system does not operate properly, check each
component. If any abnormality is found, replace the component
with a new one.

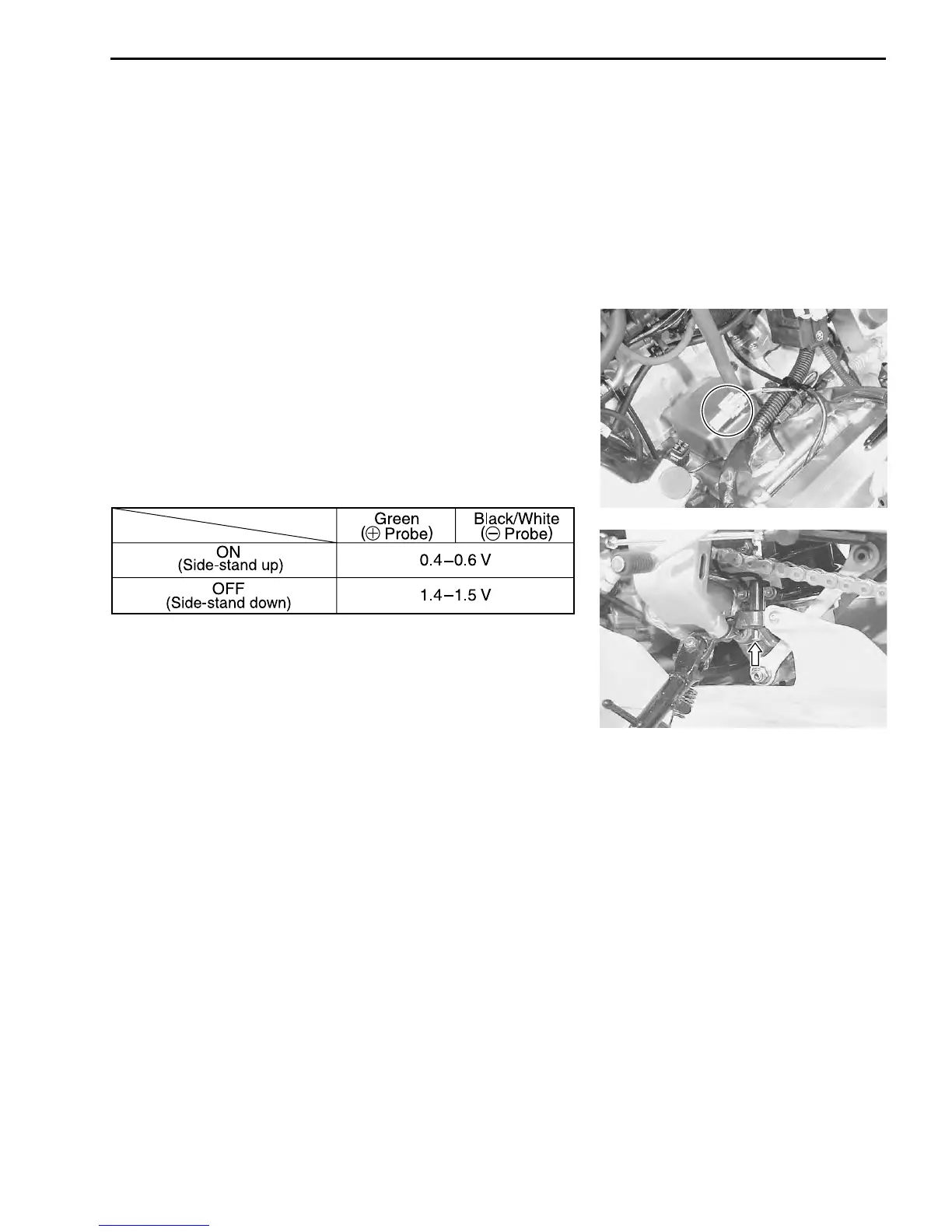

SIDE-STAND SWITCH
The side-stand switch coupler is located behind the left upper
fairing.
• Lift the fuel tank. ( 4-51)
• Disconnect the side-stand switch coupler and measure the
voltage between Green and Black/White lead wires.
09900-25008: Multi circuit tester set
Tester knob indication: Diode test (
)
NOTE:
If the tester reads under 1.4V when the tester probes are not
connected, replace its battery.
