7-2 ELECTRICAL SYSTEM

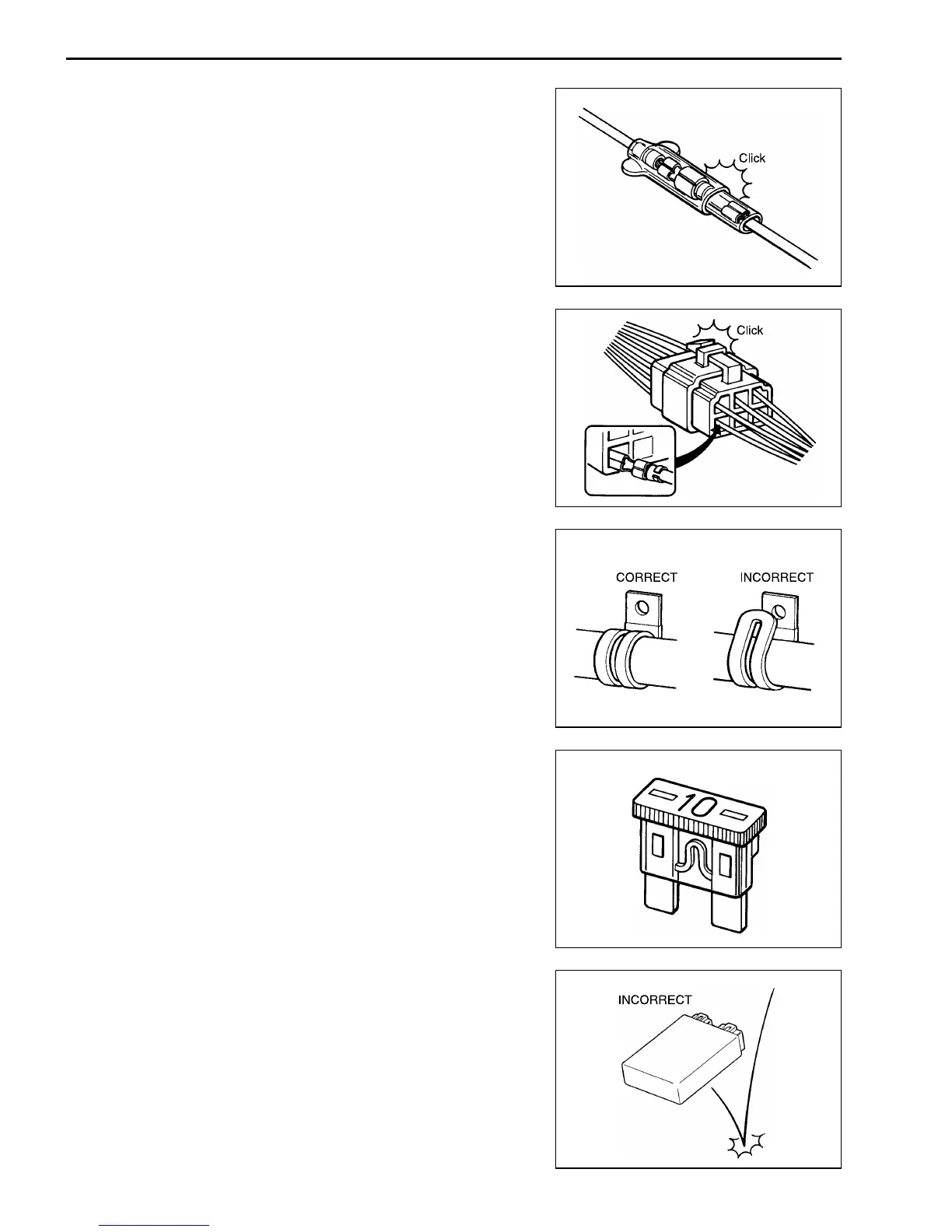

CAUTIONS IN SERVICING
CONNECTOR
• When connecting a connector, be sure to push it in until a click
is felt.
• Inspect the connector for corrosion, contamination and break-
age in its cover.
COUPLER
• With a lock type coupler, be sure to release the lock before
disconnecting it and push it in fully till the lock works when
connecting it.
• When disconnecting the coupler, be sure to hold the coupler
itself and do not pull the lead wires.
• Inspect each terminal on the coupler for being loose or bent.
• Inspect each terminal for corrosion and contamination.
CLAMP
• Clamp the wire harness at such positions as indicated in “WIRE
HARNESS ROUTING”. ( 8-14 – 16)
• Bend the clamp properly so that the wire harness is clamped
securely.
• In clamping the wire harness, use care not to allow it to hang
down.
• Do not use wire or any other substitute for the band type clamp.
FUSE
• When a fuse blows, always investigate the cause, correct it
and then replace the fuse.
• Do not use a fuse of a different capacity.
• Do not use wire or any other substitute for the fuse.
SEMI-CONDUCTOR EQUIPPED PART
• Be careful not to drop the part with a semi-conductor built in
such as a ECM.
• When inspecting this part, follow inspection instruction strictly.
Neglecting proper procedure may cause damage to this part.

Suzuki GSX-R750K3 2003 Specifications

General

Displacement	749cc
Bore x Stroke	70.0 mm x 48.7 mm
Compression Ratio	12.0:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Dry Weight	163 kg (359 lbs)
Engine Type	4-stroke, DOHC
Ignition	Electronic ignition (transistorized)
Transmission	6-speed, constant mesh
Front Suspension	Inverted telescopic, coil spring
Rear Suspension	Link type
Ground Clearance	130 mm (5.1 inches)
Seat Height	825 mm (32.5 in)
Fuel Capacity	18 L (4.8 US gal)
