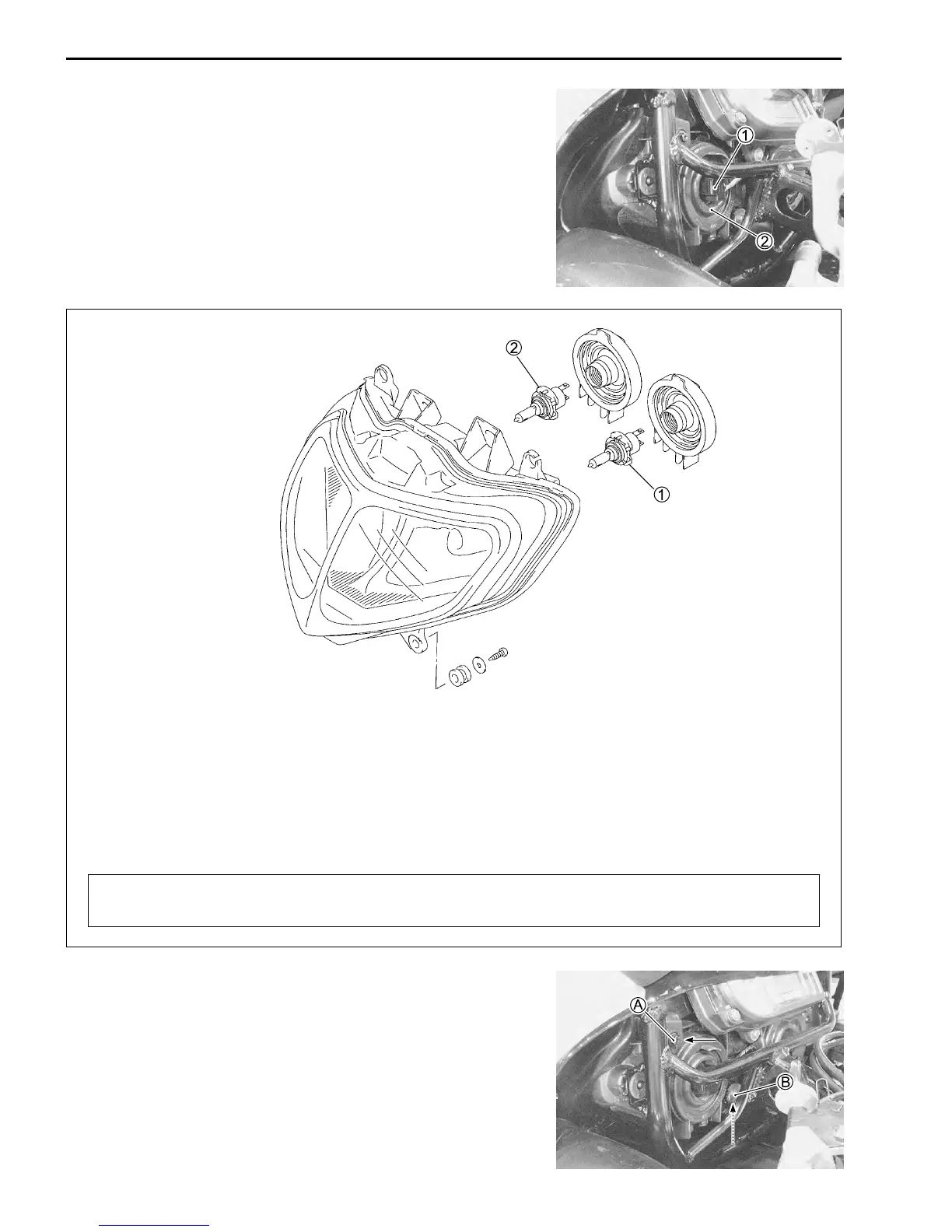

7-36 ELECTRICAL SYSTEM
LAMPS
HEADLIGHT
BULB REPLACEMENT
Disconnect the socket 1 and the rubber cap 2.
Remove the bulb by removing the bulb holder spring.
Reassemble the headlight bulb in the reverse order of removal.
Headlight bulb 1: 55W (H7)
2: 55W (H7)
Lo: 1
Hi: 1 + 2
Position light bulb: 12V 5W (Except for E-03, 24, 28 and 33)
NOTE:
Adjust the headlight, both vertical and horizontal, after reassembling.
If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol or
soapy water to prevent early failure.
HEADLIGHT BEAM ADJUSTMENT
Remove the body cowling cover. (6-5)
Adjust the headlight beam, both vertical and horizontal.
A: Vertical adjuster
B: Horizontal adjuster
