ELECTRICAL SYSTEM 7-37

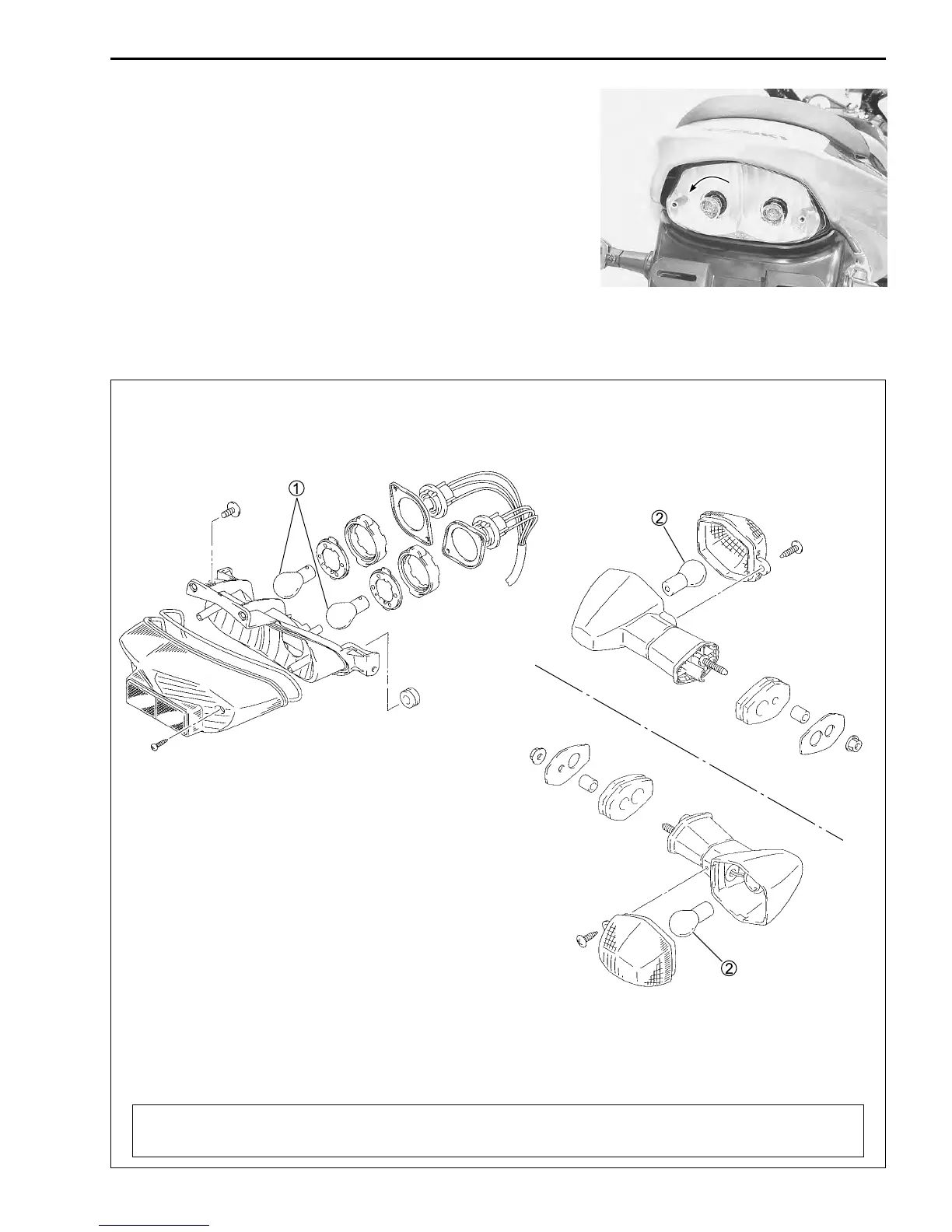

BRAKE LIGHT/TAILLIGHT AND TURN SIGNAL
LIGHT
BULB REPLACEMENT
• Remove the lens.
• Remove the brake light/taillight bulb by turning it counterclock-
wise.
• Reassemble the brake light/taillight bulb in the reverse order
of removal.
• Remove the screw and take off the lens.
• Remove the turn signal light bulb by turning it counterclock-
wise.
• Reassemble the turn signal light bulb in the reverse order of
removal.
Brake light / Taillight bulb 1 : 12V 21/5W
××
××
× 2
Turn signal light bulb 2: 12V 21W
××
××
× 4

If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol or
soapy water to prevent early failure.
