7-32 ELECTRICAL SYSTEM

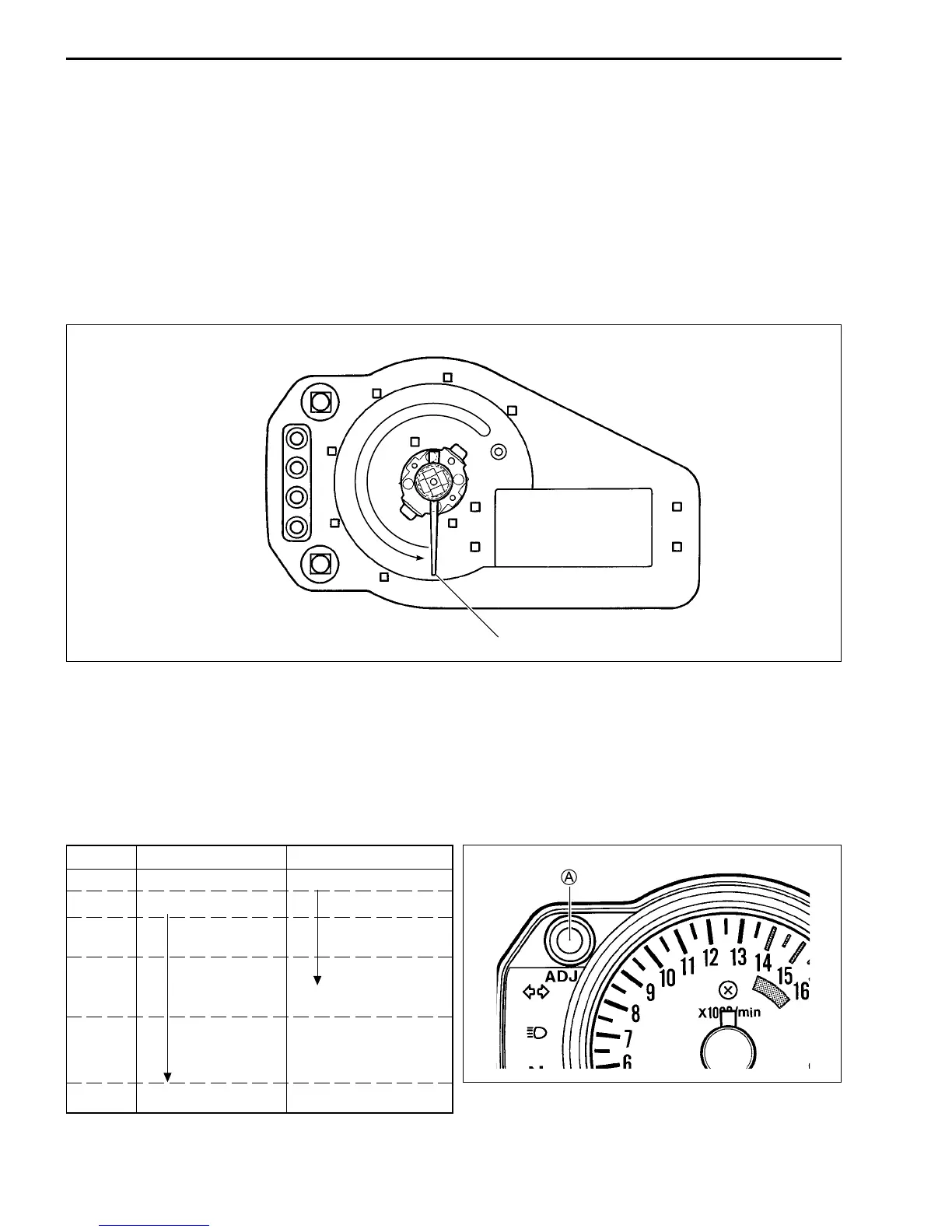

Pointer
INSPECTION
LED (LIGHT EMITTING DIODE)
Check that the LED lights immediately after turning the ignition switch on.
If the LED fails in operation, replace the combination meter unit with a new one after checking its wire
harness/coupler.
STEPPING MOTOR
Check that the pointer calibrates itself immediately after turning the ignition switch on and stops at starting
point.
If abnormal condition is found, replace the combination meter unit with a new one after checking its wire
harness/coupler.
NOTE:
The pointer may not return to the proper position even turning the ignition switch on under low temperature
condition. In that case, you can reset the pointer to the proper position by following the instruction below:
1) With the function switch A pressed, turn the ignition switch on.
2) Release the function switch A, 3 to 5 seconds after turning the ignition switch on.
3) Press the function switch A twice (within 1 second). → Reset
* Complete the operation within 10 seconds after the ignition switch has been turned on.
Time Ignition switch Adjuster switch A
OFF PUSH
0ON
•
•
3 sec
•
5 sec Release
•
Push
•
•
Push→Reset
•
10 sec
Pointer will return to the starting point right after the completion of the operation. In the case of the pointer
not returning to the proper position after doing above, replace the combination meter unit.
