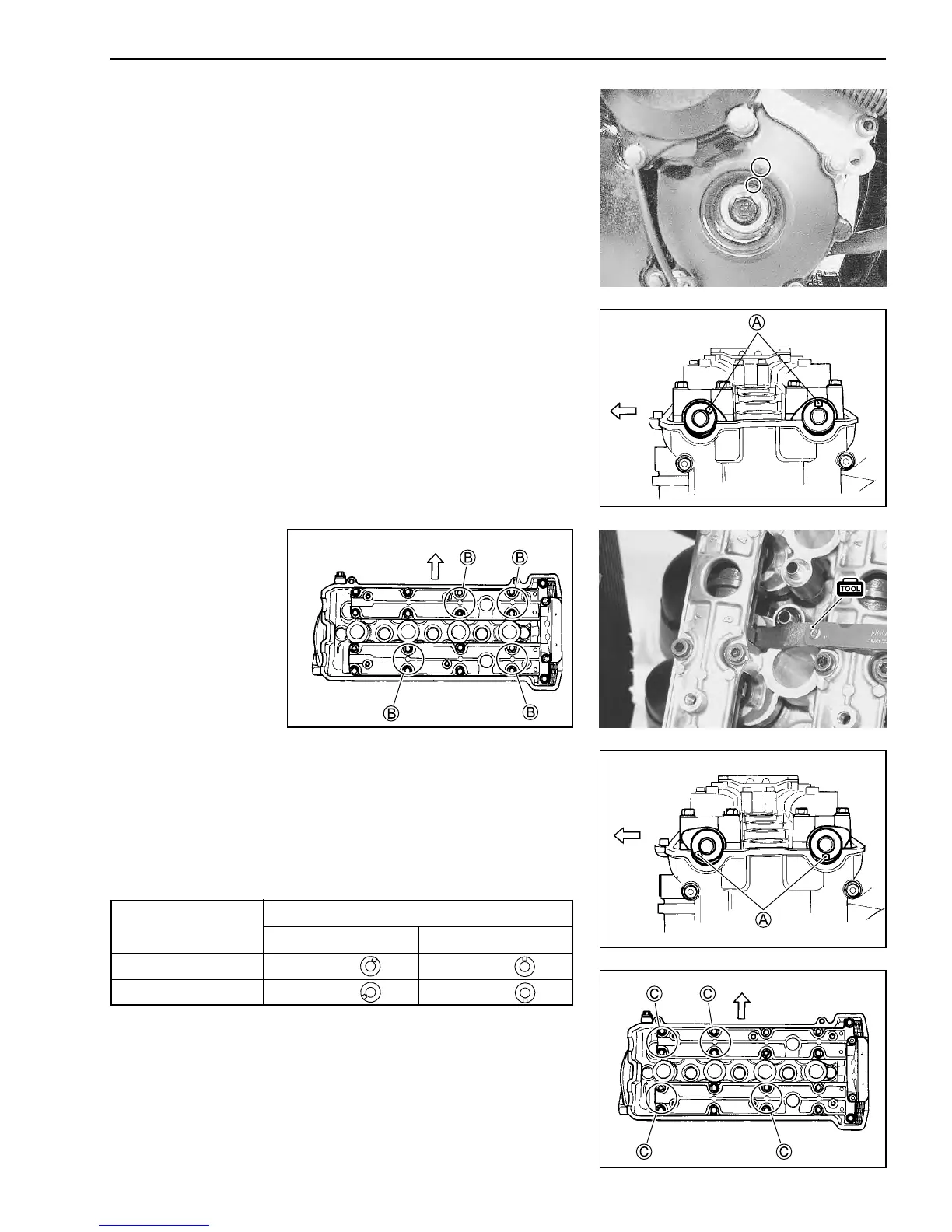

PERIODIC MAINTENANCE 2-9
• Turn the crankshaft to bring the “Top” line on the starter clutch to
the index mark and also to bring the notches A on the left ends
of both camshafts (Ex and In) to the positions as shown.
• In this condition, read the valve clearance at the valves B (In
and Ex of No.4 cylinder, Ex of No.3 and In of No.2).
• If the clearance is out of specification, adjust the clearance. (
2-10)
[[
[[
[ 09900-20803: Thickness gauge
• Turn the crankshaft 360 degrees (one rotation) to bring the “TOP”
line on the starter clutch to the index mark of valve timing in-
spection hole and also to bring the notches A to the position as
shown.
• Read the clearance at the remaining valves C and adjust the
clearance if necessary. ( 2-10)
Cam position
Notch A position
Exhaust Camshaft Intake Camshaft
B ←Front
←Front
C
←Front
←Front
Front
Front
Front
Front
