6-36 CHASSIS

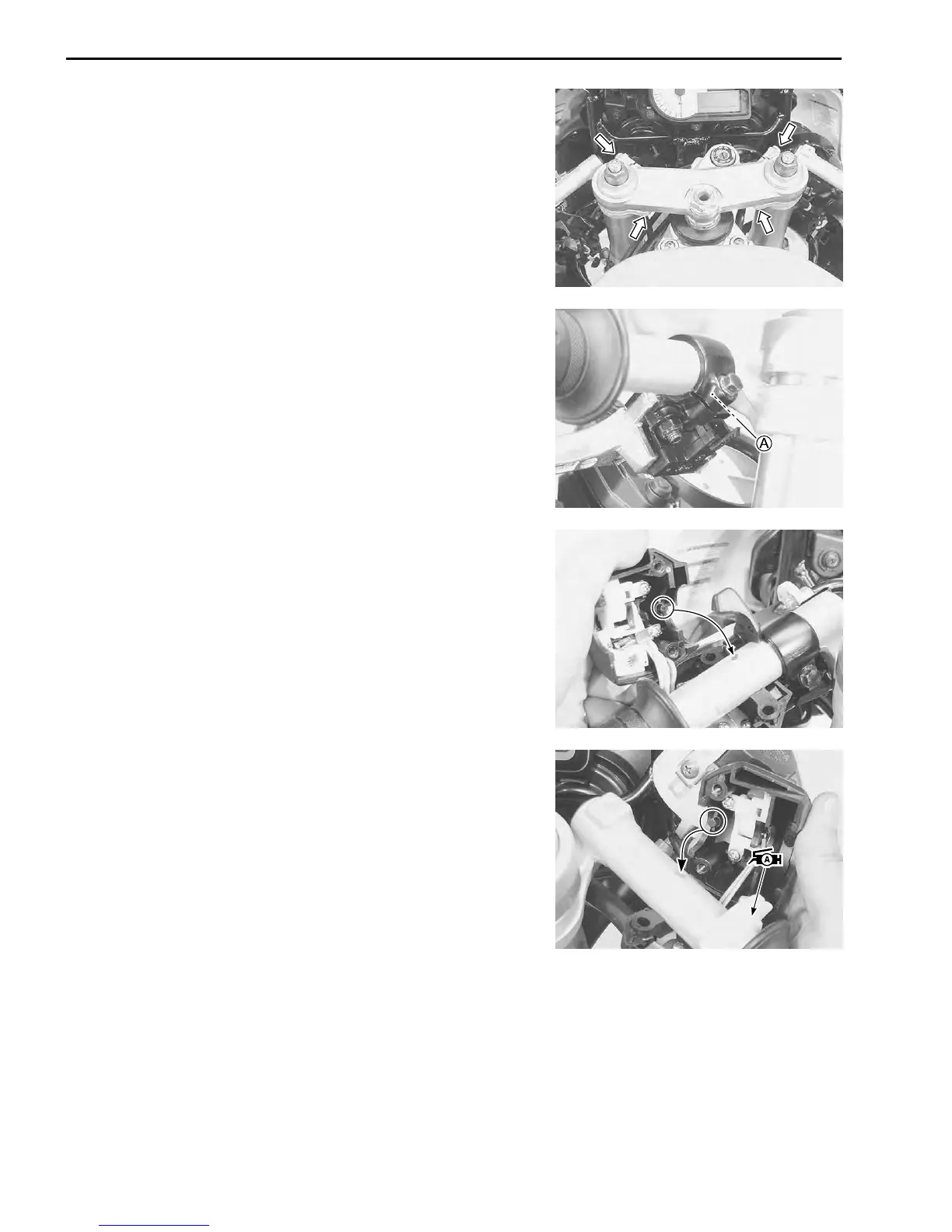

• Tighten the handlebar set bolts and handlebar clamp bolts.
! Handlebar set bolt: 10 N
.
m (1.0 kgf
.
m, 7.0 lb-ft)
Handlebar clamp bolt: 23 N
.
m (2.3 kgf
.
m, 16.5 lb-ft)
• When remounting the clutch lever holder, align the holder’s
mating surface with punch mark A on the handlebar.
• When remounting the right and left handle switches, engage
the stopper with the handlebar hole.
• Apply the grease to the throttle cables and their holder.
WW
WW
W 99000-25030: SUZUKI SUPER GREASE “A”
• Install the front brake master cylinder. ( 6-64)
To Next Page
