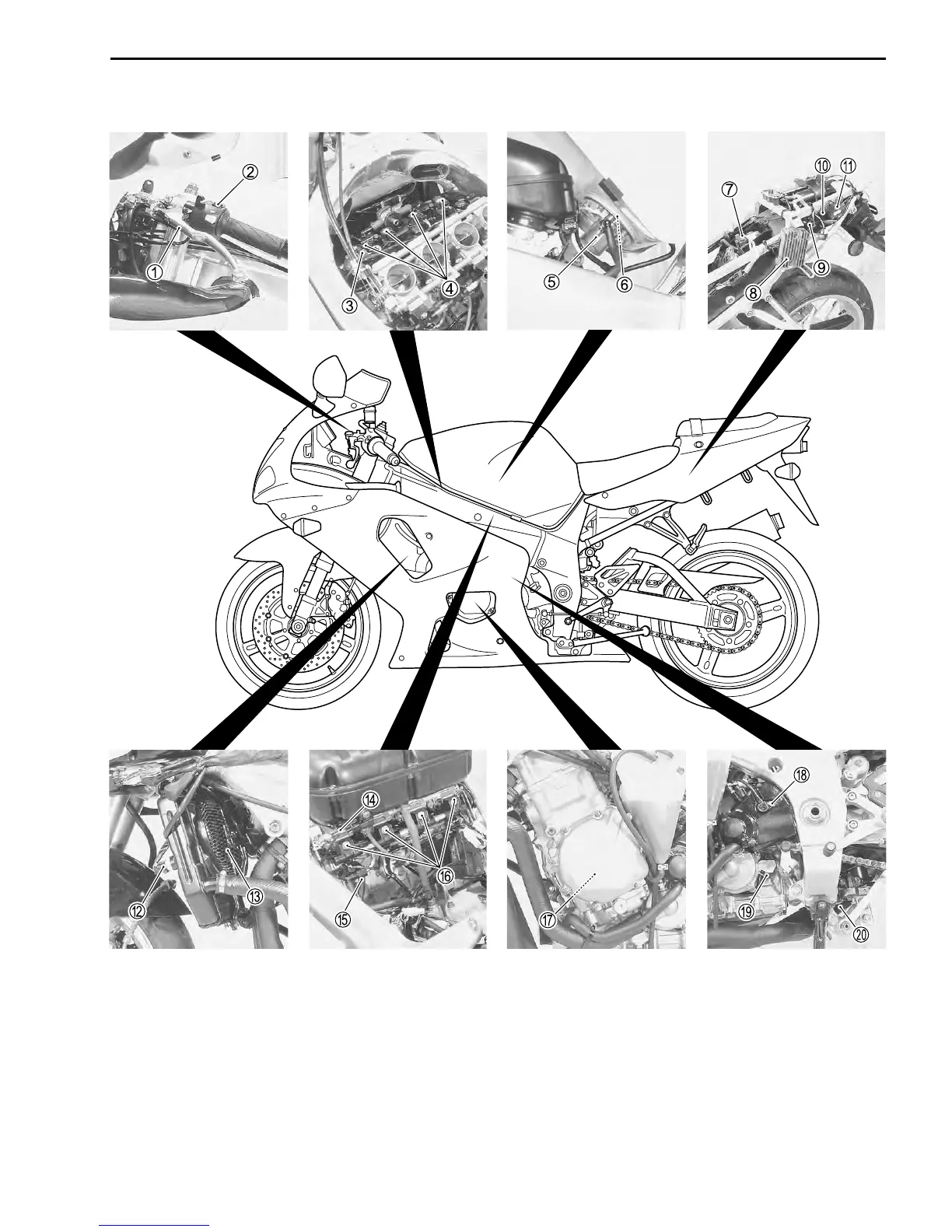

ELECTRICAL SYSTEM 7-5
B Cooling fan thermo-switch ( 5-6)
C Cooling fan ( 5-5)
D Intake air pressure sensor ( 4-36)
E Engine coolant temp. sensor ( 5-8)
F Injection
G Generator
H Speedometer sensor
I Gear position switch
J Side-stand switch
1 Clutch lever position switch
2 Handlebar switch (L)
3 Camshaft position sensor ( 4-34)
4 Ignition coil (No. 1, 2, 3, 4)
5 Fuel pump
6 Fuel level switch
7 Starter relay/Main fuse
8 Regulator/ Rectifier
9 Atmospheric pressure sensor ( 4-42)
0 Mode selection switch coupler
A Resister
To Next Page
