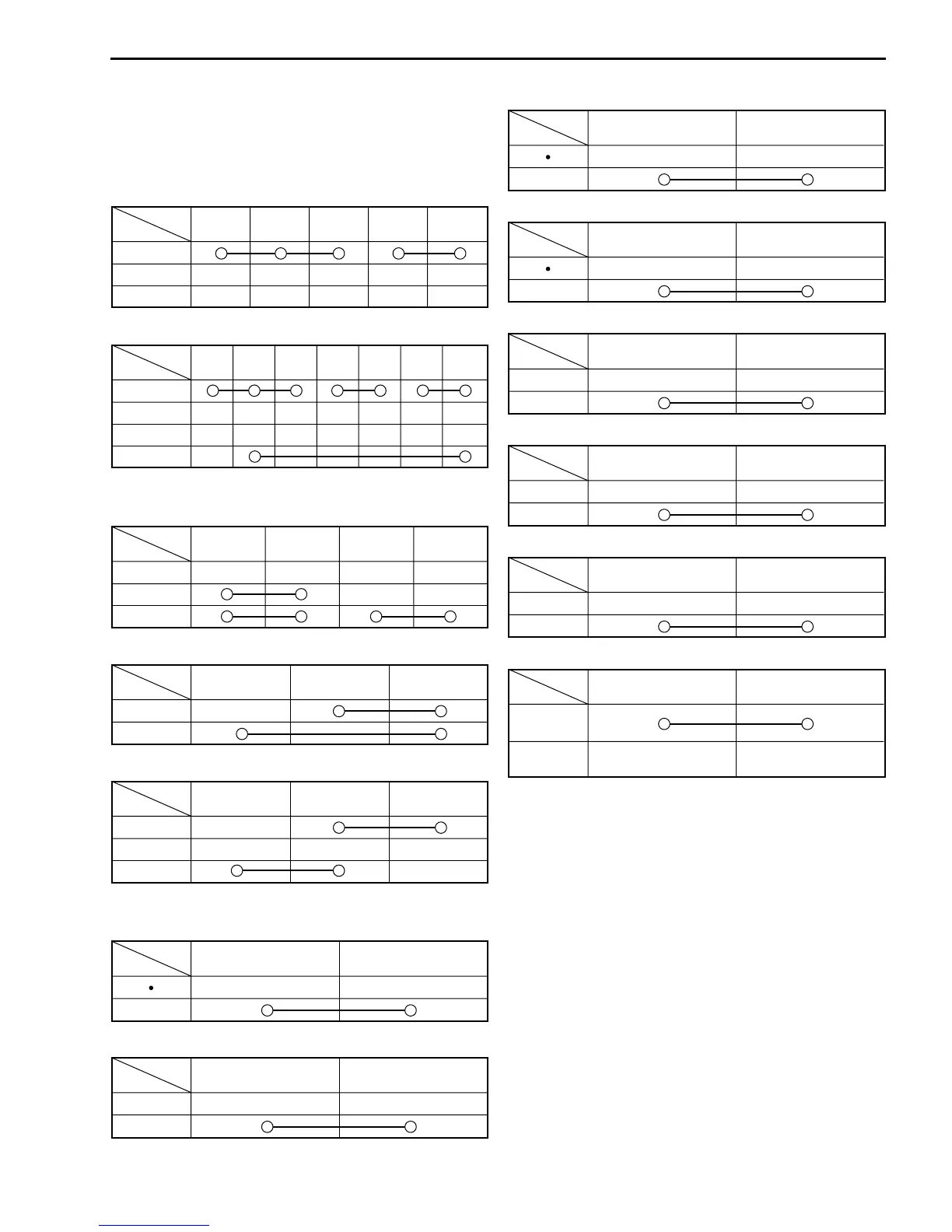

ELECTRICAL SYSTEM 7-39
Inspect each switch for continuity with a tester. If any
abnormality is found, replace the respective switch
assemblies with new ones.
IGNITION SWITCH
(For E-24)
O/W R O O/Y B/W
ON
OFF
LOCK
Color
Position
(For Others)
O/W R O O/Y B/W Gr Br
ON
OFF
LOCK
P
Color
Position
LIGHTING SWITCH
(Except for E-03, 24, 28 and 33)
O/Bl Gr O/R Y/W
OFF
S
ON
Color
Position
DIMMER SWITCH
WYY/W
HI
LO
Color
Position
TURN SIGNAL SWITCH
Lg Lbl B
L
PUSH
R
Color
Position
PASSING LIGHT SWITCH
(Except for E-03, 28 and 33)
O/R Y
PUSH
Color
Position
ENGINE STOP SWITCH
O/B O/W
OFF
RUN
Color
Position
STARTER BUTTON
HORN BUTTON
B/Bl B/W
PUSH
Color
Position
FRONT BRAKE SWITCH
REAR BRAKE SWITCH
O/G W/B
OFF
ON
Color
Position
CLUTCH LEVER POSITION SWITCH
B/Y B/Y
OFF
ON
Color
Position
OIL PRESSURE SWITCH
G/Y Ground
ON
OFF
Color
Position
NOTE:
Before inspecting the oil pressure switch, check if the
engine oil level is enough. (
2-13).
WIRE COLOR
B : Black Lbl : Light blue R : Red
Br : Brown Lg : Light green Y : Yellow
Gr : Gray O : Orange W : White
B/Bl: Black with Blue tracer
B/W : Black with White tracer
B/Y : Black with Yellow tracer
B/R : Black with Red tracer
O/B : Orange with Black tracer
O/Bl: Orange with Blue tracer
O/R : Orange with Red tracer
O/W: Orange with White tracer
O/Y : Orange with Yellow tracer
W/B : White with Black tracer
Y/G : Yellow with Green tracer
Y/W : Yellow with White tracer
