7. Cylinder Head / Valve
Cylinder Head
bolt×4

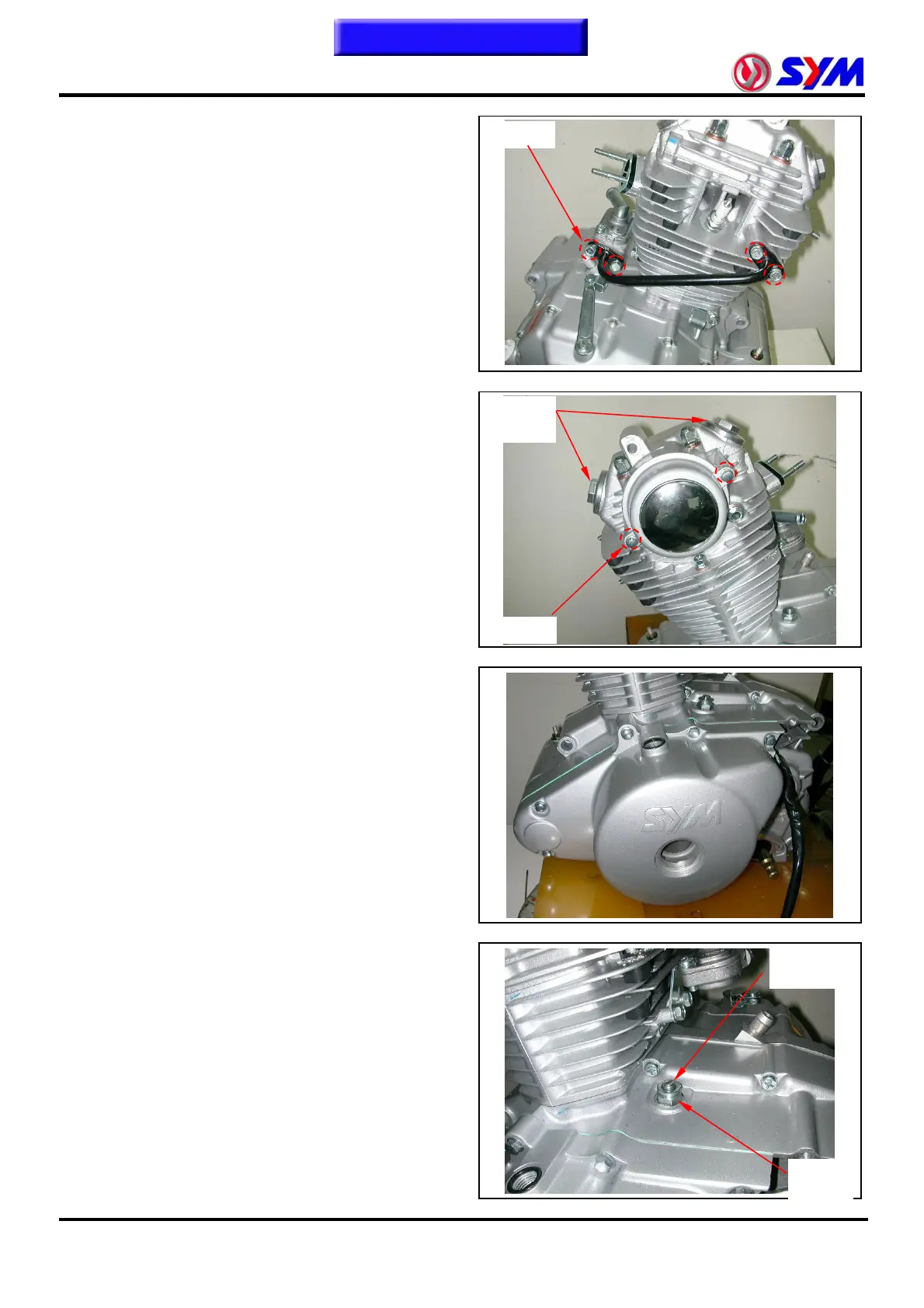

Cylinder Head Removal
7-4
Remove engine. (Refer to chapter 6)
Remove the AI tube on the left side of the
engine (bolt×4)
Remove the cylinder head cap with the
cylinder head cap wrench
Cylinder
head cap
Special Tool：
Cylinder head cap wrench
SY-ALL12361
Remove the cylinder head side cover
(bolt×2)。
Disassemble the timing-inspecting hole cap,
and the ACG cap. Match the TDC mark “T”
Loosen the cam-chain adjuster bolt
bolt×2
Adjust bolt
Holding
nut
