3. Fuel System
To this chapter contents

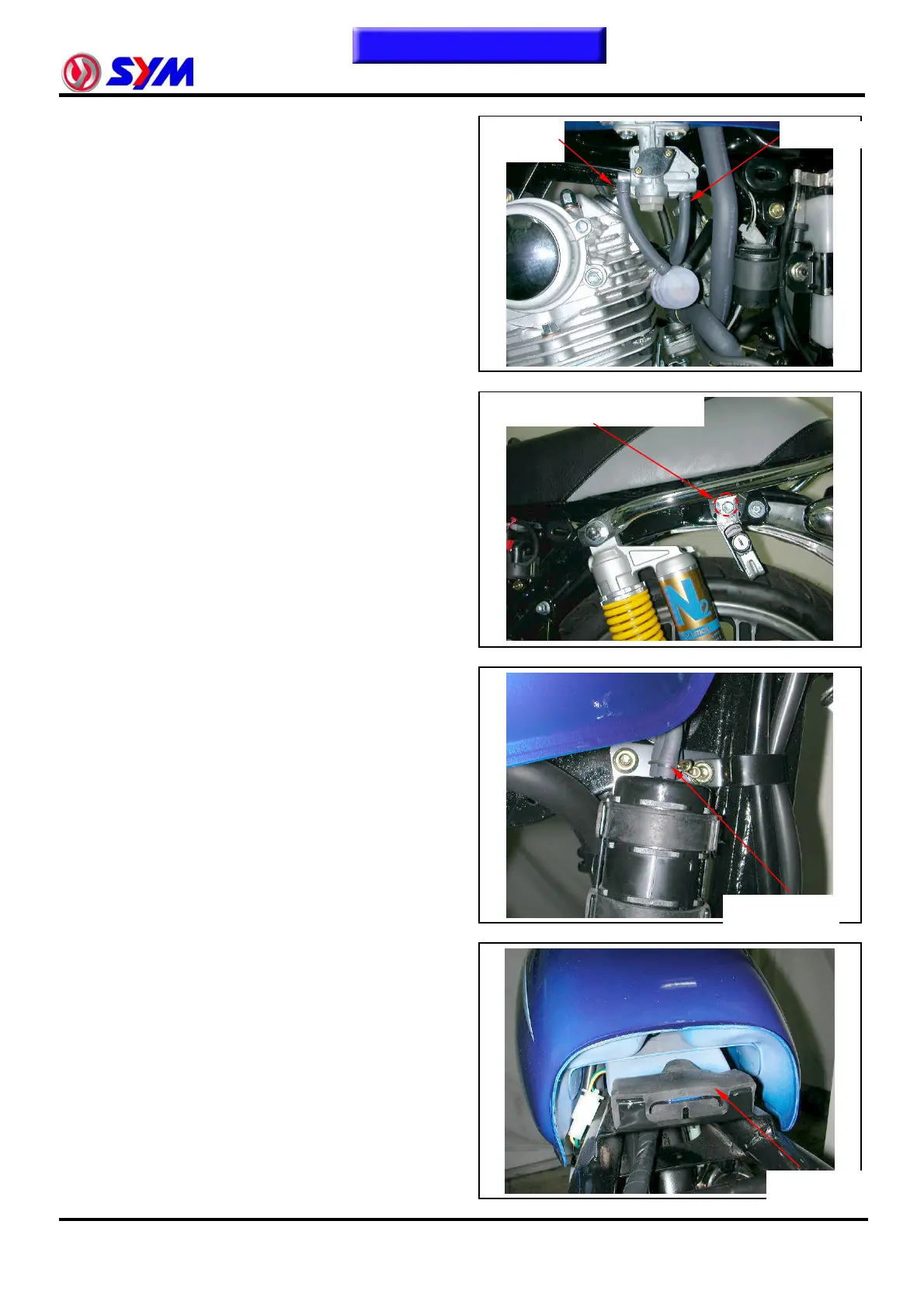

Fuel Tank
3-11
Fuel tank removal
Manual fuel cock
Turn off the fuel cock switch, and disassemble
the outlet fuel tube.
Vacuum operated automatic fuel cock
Disassemble the outlet fuel tube and the
vacuum tube.
Remove the seat(Bolts×2)。
Disassemble the fuel-vapor tube to the carbon
canister.
Take out the fixing rubber cushion behind the
fuel tank.
One bolts on each side
Outlet fuel
tube
Vacuum tube
Fuel vapor tube
Rubber cushion
