Lubrication / Clutch / Transmission

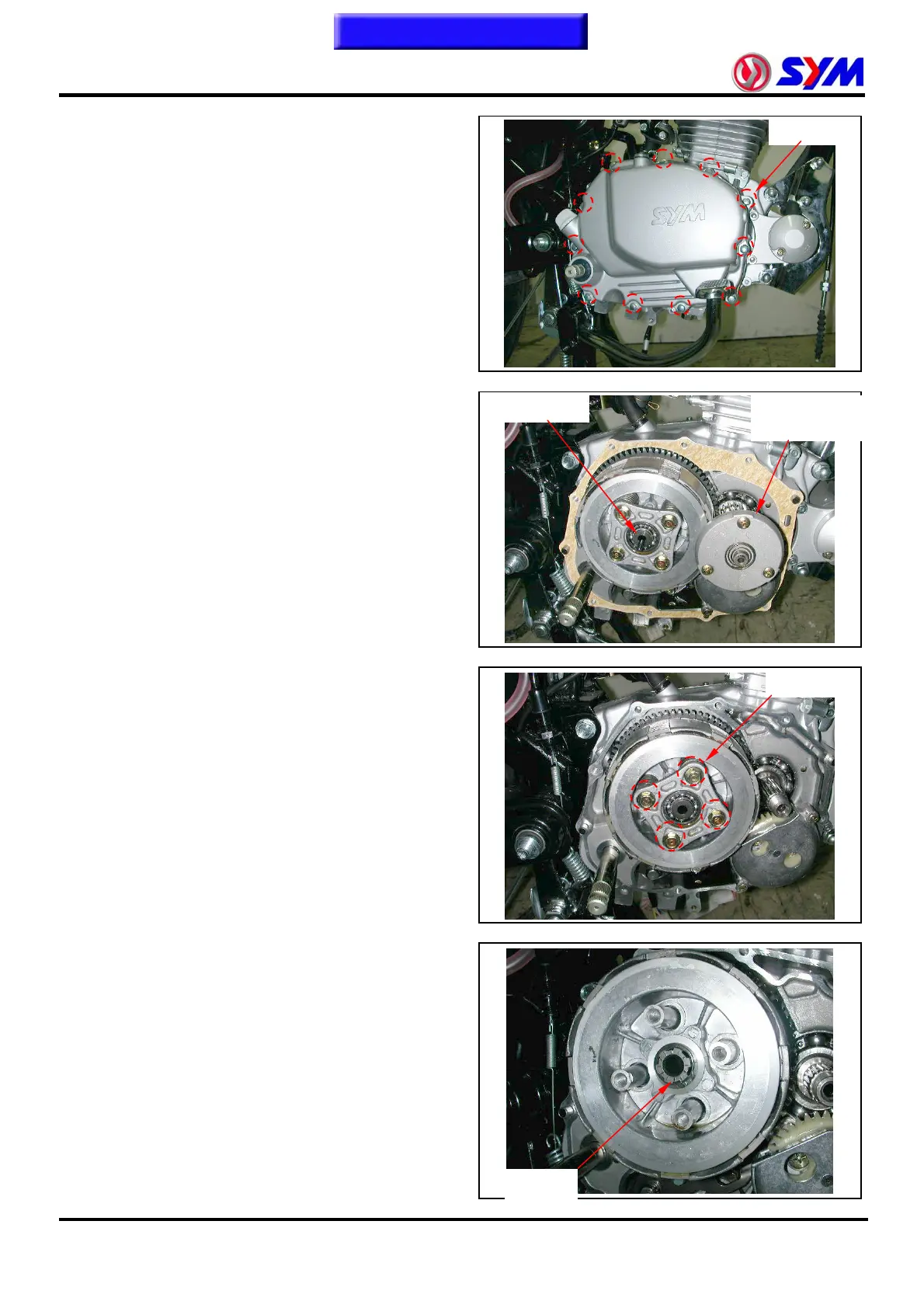

Clutch Disassembly
4-12
Drain all the engine oil.
Remove the kick-starter lever, exhaust pipe.
Remove the clutch cable.
Disassemble the right crankcase cover
(Bolt×11)
Disassemble the clutch lifter.
Disassemble the centrifugal engine oil strainer
cover. (Screw×3)。
Remove the centrifugal oil strainer anti-loosen
nut, and remove the strainer.
Special tool：
Centrifugal oil strainer special nut socket:
SYM-9023100-SY125
Remove the clutch lifter plate holding bolts.
(Bolts X 4) Remove the lifter plate and spring.
Remove the 20 mm holding ring.
Disassemble the clutch center, friction disks,
clutch plates, and pressing plate.
Bolt×11
Clutch lifter Centrifugal oil
strainer
Bolt×4
Holding
Rin
g
