10. Brake System

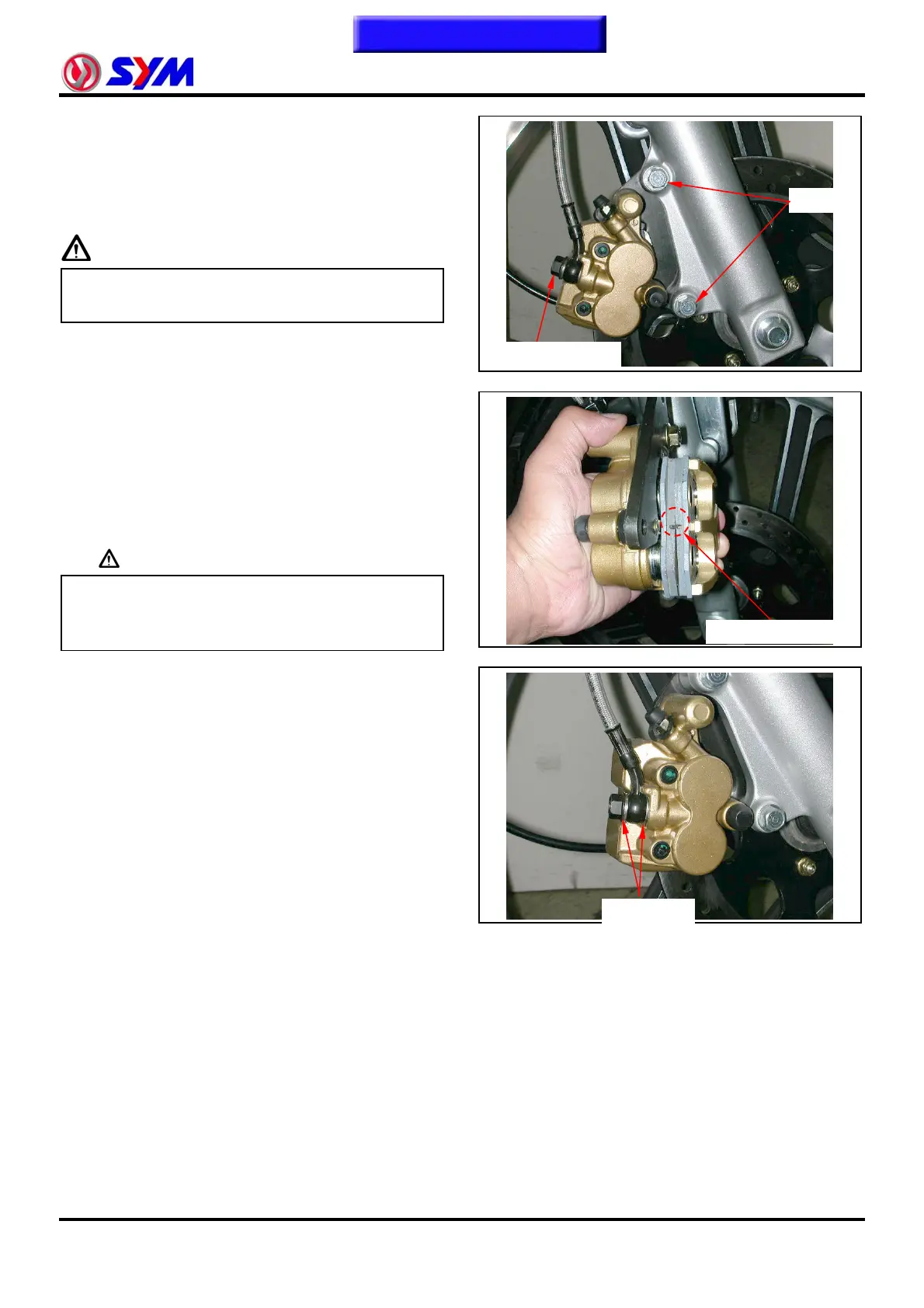

Brake Caliper
10-7
Removal
Place a container under the brake caliper, and
loosen the brake hose bolt and remove the
brake hose.
Caution
z Do not spill brake fluid on painted
surfaces.
Remove two caliper bolts and the caliper.
Confirm the brake pad wear condition.
Replace with new brake pad if wear limit is
reached.
Installation
Install the caliper and tighten the bolts.
Torque value：3.1~3.5kgf-m
Caution
y Use M8 x 32 mm flange bolt only.
z Long bolt will impair the operation of
brake disk.
Bolt×2
Use two seal washers and hose bolts to lock
the hose and brake caliper in place.
Torque value：3.3~3.7kgf-m
Fill the brake fluid to the reservoir and make
necessary air bleeding.
Seal washer
Brake hose bolt
Wear limit groove
