12. Rear Wheel / Rear Cushion
12-16
Installation
Install in the reverse order of removal.
Torque value：
Swingarm pivot bolt 3.5~5.0kgf-m
Brake torque link locknut 1.8~2.5kgf-m

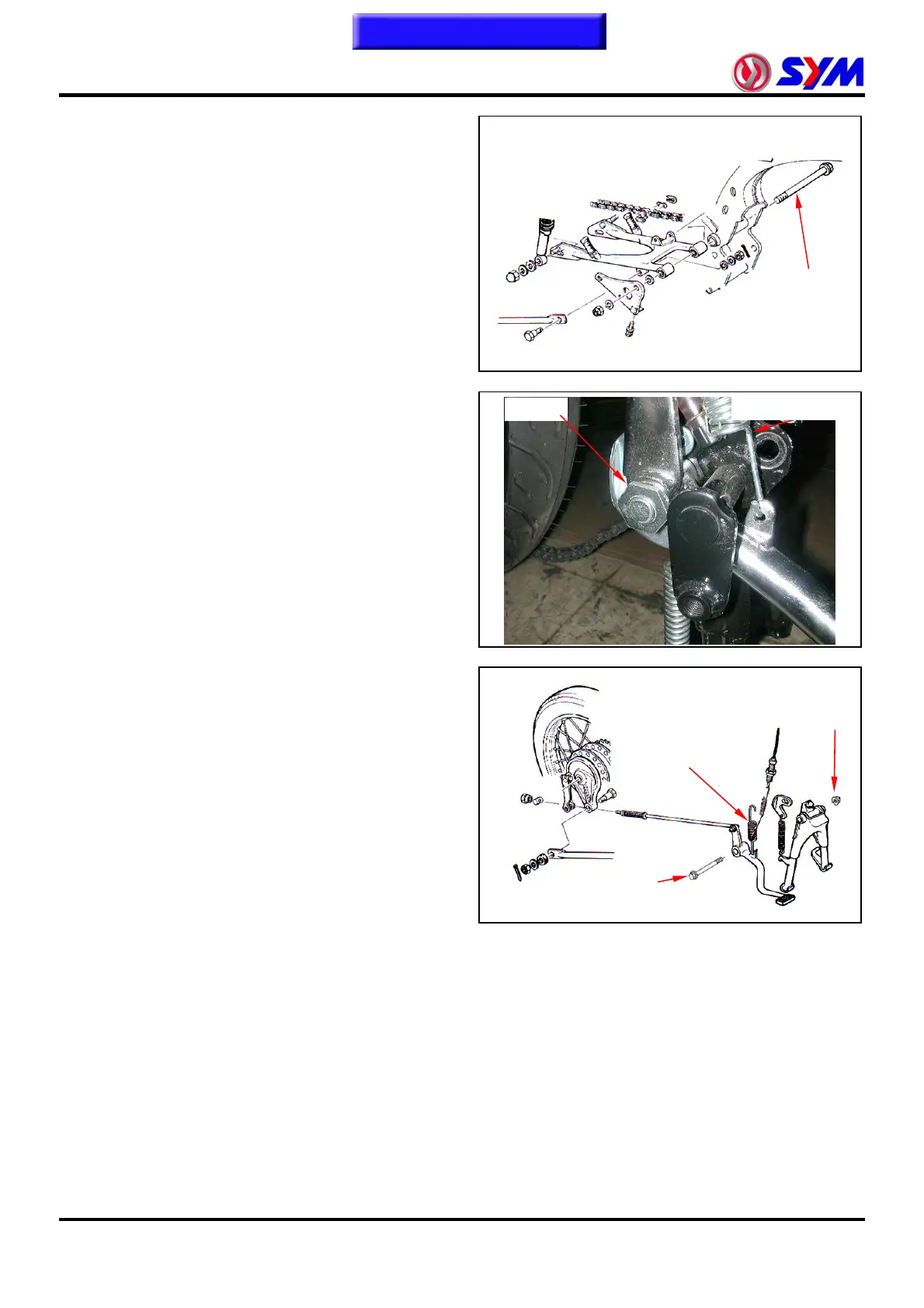

Rear Brake Pedal
Removal
Remove the swingarm pivot bolt nut.
Remove the step bar and exhaust pipe.
Remove the rear brake adjustment nut and
rear brake rod.
Remove the rear brake light switch spring.
Remove the rear brake pedal return spring.
Remove the rear brake pedal and main stand
locknuts.
Remove the rear brake pedal.
Installation
Install in the reverse order of removal.
Adjust the rear brake pedal free play after
installation.
Brake pedal free play：20~30mm
Pivot bolt
Bolt
Nut
Return spring
Return spring
Bolt×1
