Lubrication / Clutch / Transmission

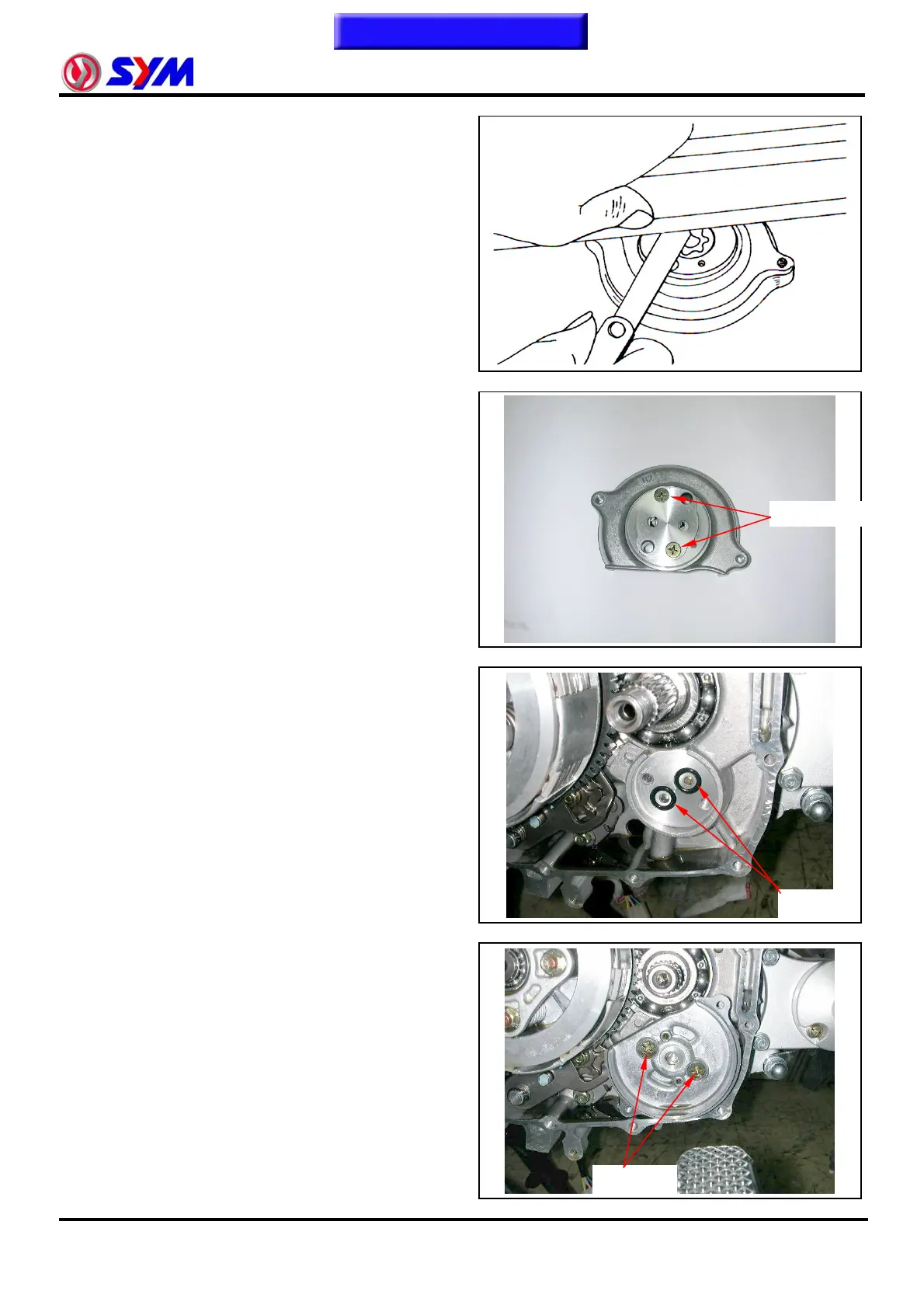

Check the unevenness between rotor face
and pump body
Service limit: 0.11 mm
4-9
Oil Pump Assembly / Installation
Install inner and outer rotors into the pump
body.
Align the pump cover and the gasket and
assemble it properly. Then tighten the holding
screws. (Screw×2)。
Install new O-rings.
Install the oil pump(screw×2)。
Torque value：0.3~0.4kgf-m
Screw×2
O-Rings
Screw×2
