Lubrication / Clutch / Transmission
Gear Shift Linkage Mechanism

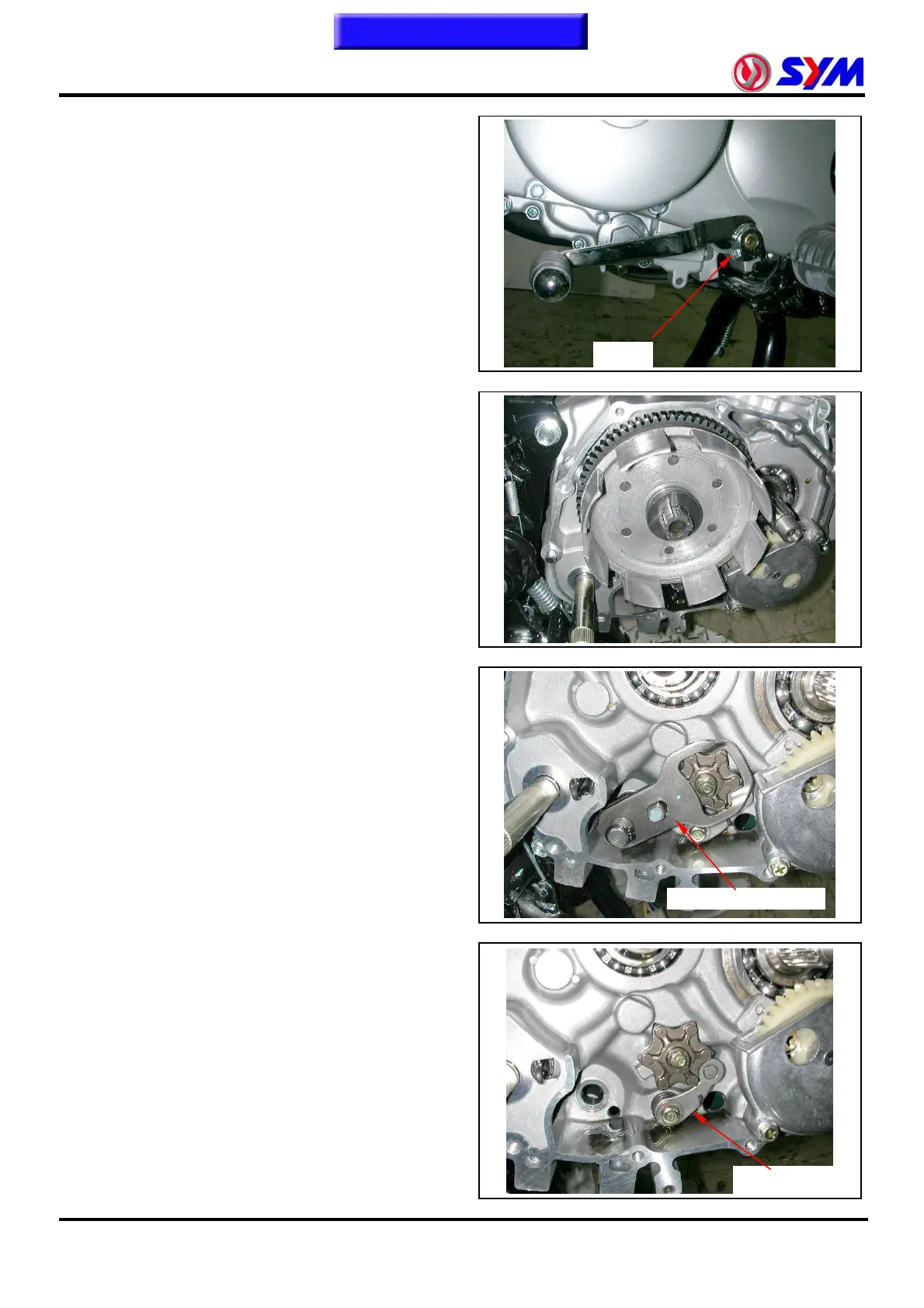

Gearshift linkage disassembly
Remove the shifting lever. (Bolt X 1)
4-16
Drain all the engine oil.
Disassemble the kick-starter, exhaust pipe,
and the starting lever.
Disassemble the clutch cable
Remove the right crankcase cover.
Remove the clutch lifter rod.
Remove the centrifugal oil strainer.
Remove the clutch outer.
Take out the gear shifting spindle.
Remove the shifting drum stopper arm and the
return spring. (Bolt×1)。
Stopper arm
Gear shifting spindle
Bolt×1
