Sym PA12B User Manual

To this chapter contents
4
、
Lubrication / Clutch / Transmission

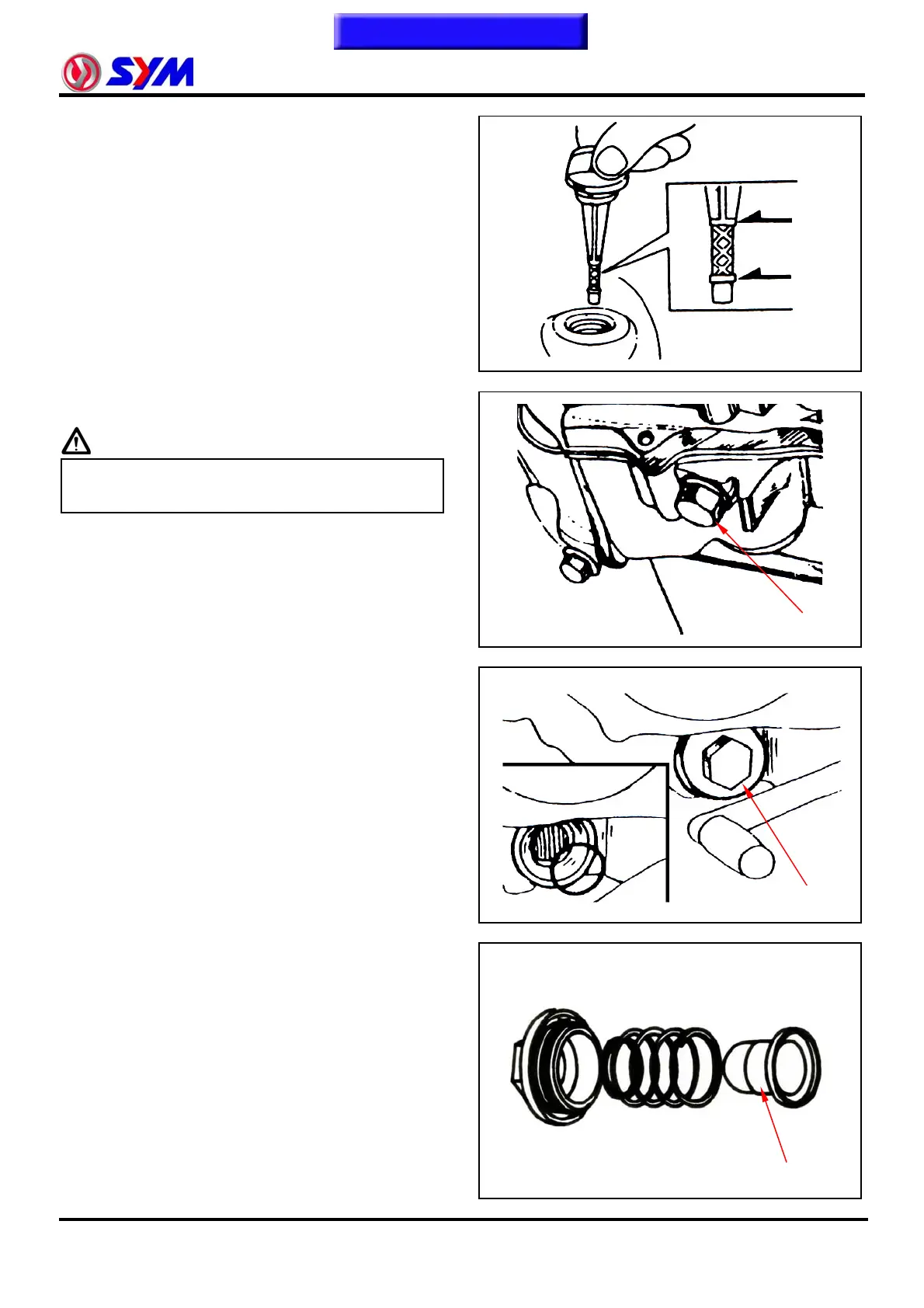

Engine Oil
4-5
Turn off engine, and park the scooter on flat
surface with main stand.
Check oil level with oil dipstick.
Do not screw the dipstick in while checking.
If oil level is low, fill into recommended oil to
reach the upper limit.
Oil Change
Caution
z Drain oil when the engine is fully warmed
up, so the oil can be drained completely.
Place an oil basin under the bike, and remove
oil drain bolt.
After all oil is drained, make sure washer can
be re-used, and re-install oil drain bolt.
If the Oil drain bolt washer is damaged, it
should be replaced.
Torque value：1.5~2.5kgf-m
Engine Oil Strainer Cleaning
Drain engine oil out.
Remove oil strainer and spring.
Clean oil strainer with compressed air.
Check if O-ring can be re-used. If it’s
damaged, please change a new one.
Install oil strainer and spring.
Install oil strainer cap.
Torque value：1.5~3.0kgf-m
Fill in engine oil (oil viscosity SAE 10W-30)
Recommended using Bramax series oil.
Engine oil capacity: 1000c.c. Regular
exchange.
Install dipstick, run the engine for several
minutes. Then turn off engine, and check oil
level again.
Check if engine oil leaks.
Oil drain bolt
Upper
limit
Lower
limit
Engine oil strainer
Strainer cap
