7. Cylinder Head / Valve
Cylinder Head Installation
7-15

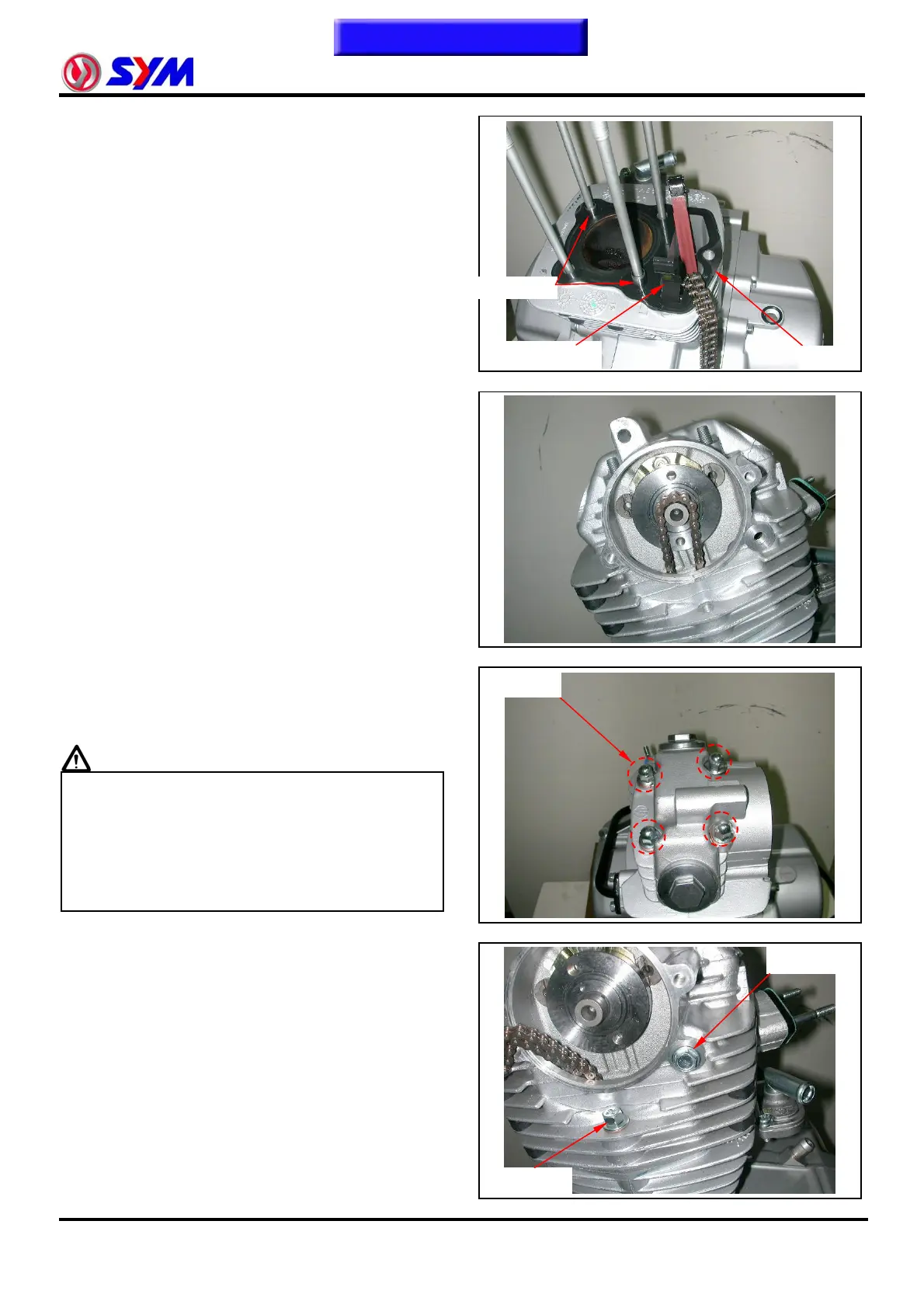

Install the cam chain guide.
Put the dowel pins and new cylinder head
gasket onto the cylinder.
Install the cylinder head. Lubricate the cam
shaft and install it onto the cylinder head.
Install the cam chain onto the cam shaft.
Tighten the cylinder head upper nuts.
Torque value：
Cylinder head upper nut 2.8~3.0kgf-m
Caution
z Tighten the cylinder head nuts in
diagonally opposite sequence.
z Do not exceed the specified torque value
to prevent cylinder head warpage,
abnormal noise, leakage or weakening of
engine performance.
Tighten the cylinder head bolt on the left side.
Torque value：
Cylinder head left side bolt 0.8~1.2kgf-m
Loosen the cam chain tensioner adjusting bolt.
Align and tighten the cam chain tensioner.
Torque value：1.0~1.4kgf-m
Cam chain guide
Dowel pins
Gasket
Nut×4
Cam chain
8mm bolt
To Next Page
