2. Maintenance Information

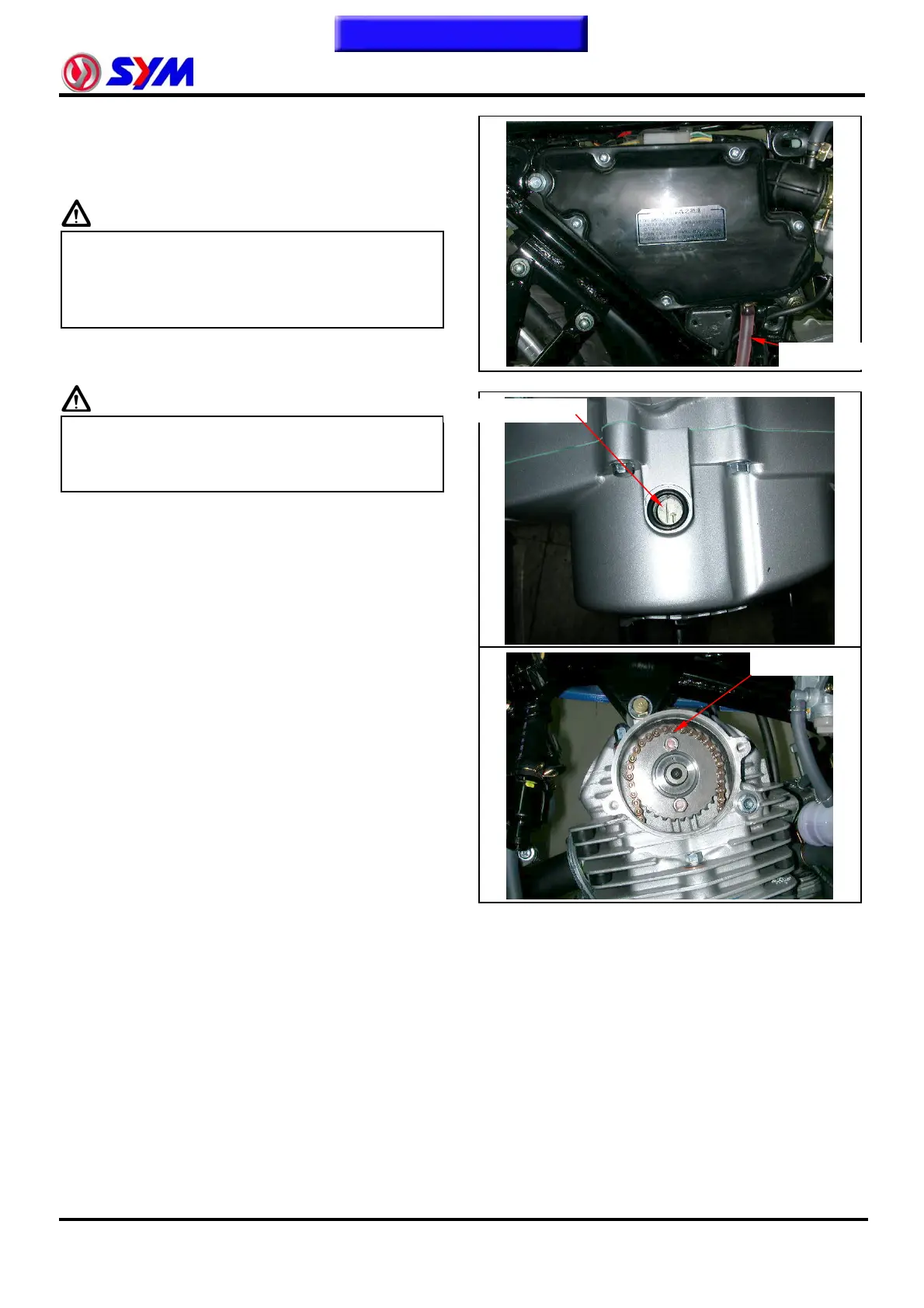

PCV System
2-7
Unplug the drain tube, and leak the deposit off.
Drain the tube every 2,000 km.
Caution:
z Under rainy or full- throttle situation, the
maintenance period should be shortened.
You can check the deposit amount
through the transparent tubes.
Valve Clearance Adjustment
Caution:
z The valve clearance should be adjusted
when the engine is cold. (Under 35
degrees Celsius)
PCV Drain tube
〝T〞mark of AC.G
Remove the valve clearance-adjusting cap.
Remove the cylinder head side cover.
Remove the timing inspection cap and the
AC.G cap on the crankcase L cover.
Use a T socket wrench to rotate the
crankshaft counterclockwise. Align the “T”
mark on the AC.G flywheel with the crankcase
sign, and simultaneously, the cam- chain
sprocket TDC mark aligning with the cylinder
head mark (That means the piston is in the
upper end of compression stroke)
TDC mark
