TROUBLESHOOTING
IF A FUSE BLOWS
If a light does not come on or the electrical
system does not work, a fuse may be blown.
Inspect the fuses.
INSPECTING AND REPLACING THE FUSE
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.
1. Turn the starter key to the OFF position to
stop the engine.
IF A FUSE BLOWS
2. Open the fuse box cover (1).
3. Check for any blown fuses (2).
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.

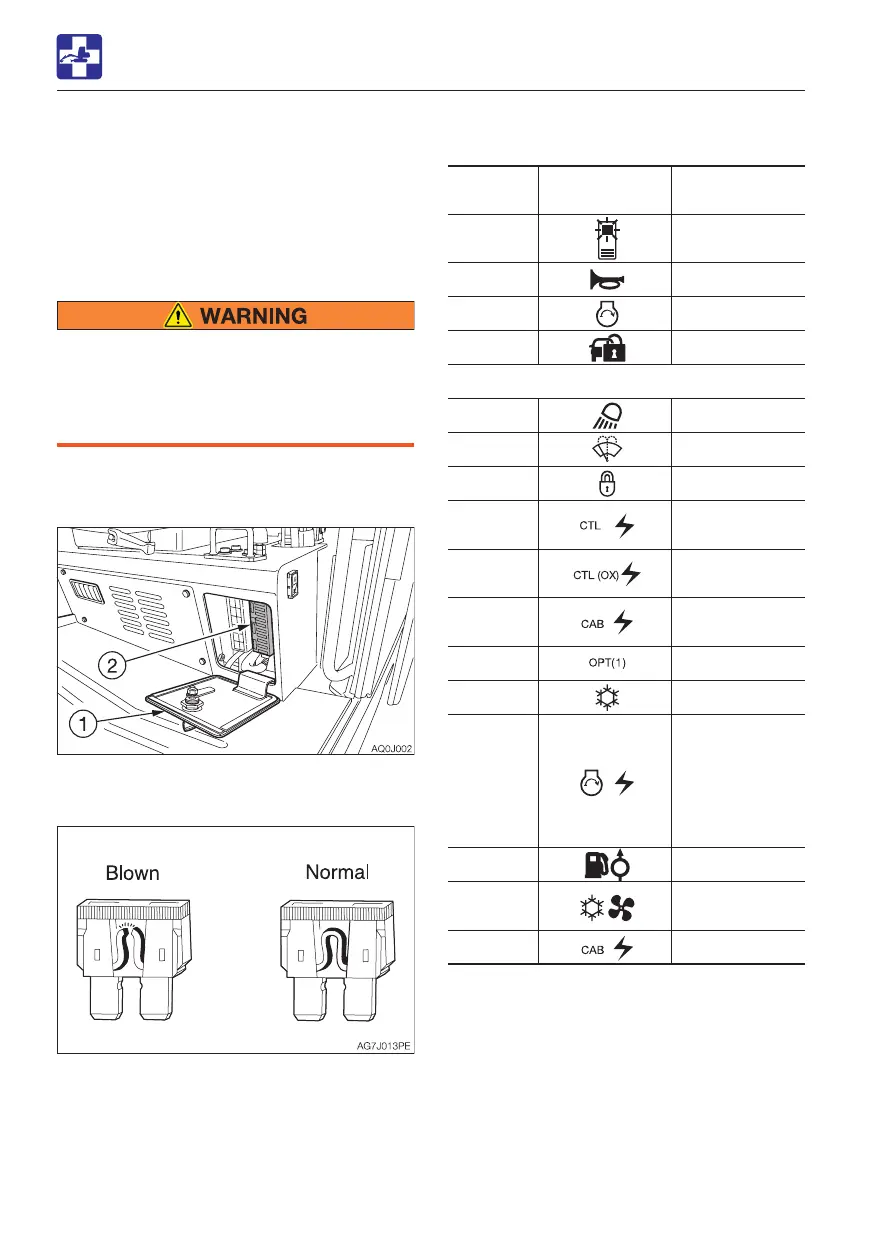

Fuse layout and circuits protected
Capacity Symbol
Protected
circuit
5A Switch lighting
10A Horn
5A Starter switch
10A Immobilizer
25A Light
10A* Wiper
20A*/15A Lever lock
15A
Controller
power supply
20A
OX controller
power supply
25A*
Cab interior
power supply
25A Option (1)
10A* Air conditioner
30A*
Engine ACC
<Applicable
machine
models
126000002 or
later>
10A Feed pump
30A*
Air conditioner
blower motor
25A Cab light
*: Cab
