2-14
CONTROLS
SEAT AND SEAT BELT
SEAT
• Adjust and secure the seat.
• Do not make any adjustments while
operating the machine.
• Do not set the backrest to its maximum
reclining position and slide the seat
backwards at the same time. Doing so
may damage the rear window or cause
injury.
• Remember that the backrest returns to
the forward position abruptly due to the
spring force.

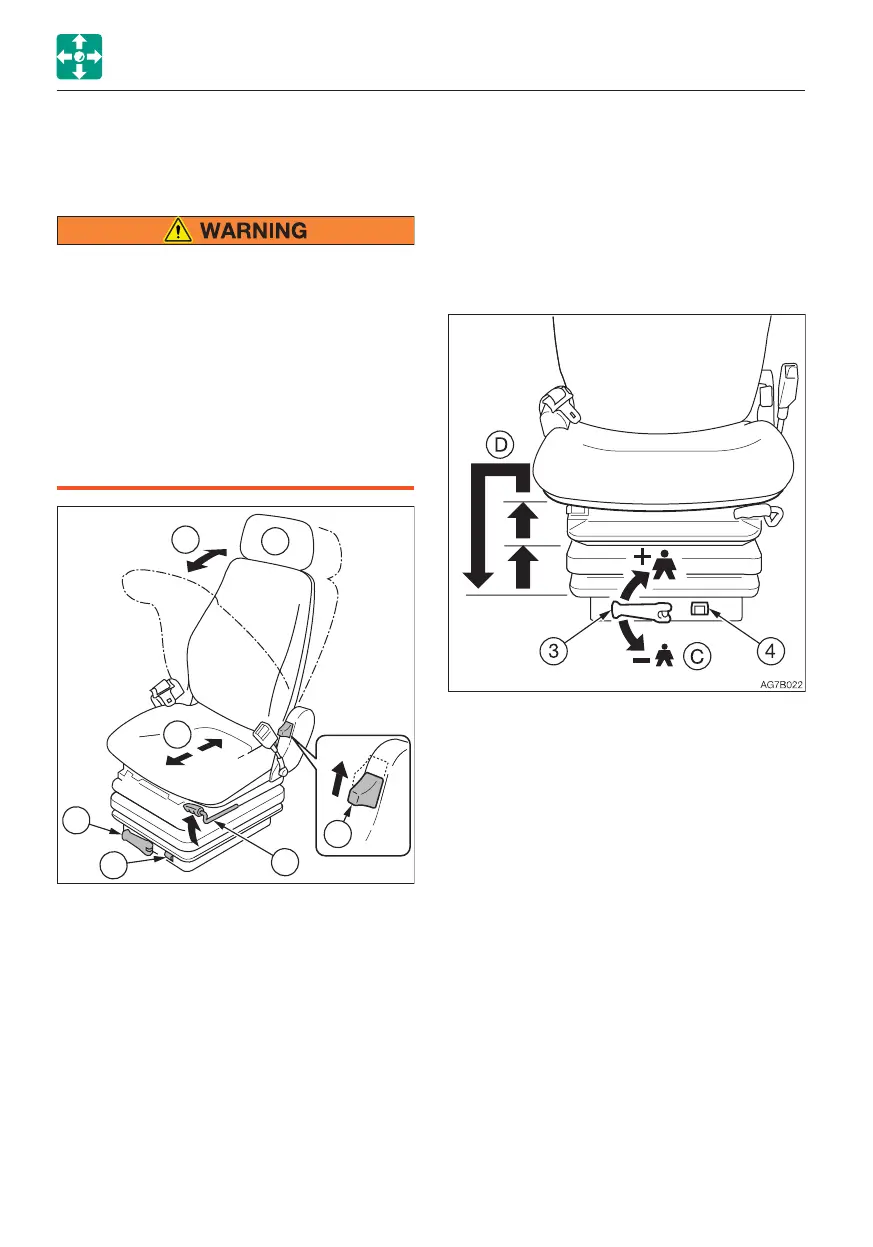

SEAT AND SEAT BELT
(A) Adjusting the backrest angle
1. Sit up and sit back in the chair.
2. Pull up the lever (1), recline the backrest
by using the spring force. Release the
lever (1) at the desired angle to secure the
backrest.
(C) Adjusting according to operator’s
weight
1. Turn the handle (3) until the scale (4)
indicates the weight of operator.
Adjustment range: 50 to 130 kg (110 to
287 lbs)
(D) Adjusting the height of the seat
Upward
1. Lift the seat to first or second position
click-stop.
Adjustment ranges: 2positions, in 60mm
(2.36 in.)
Downward
1. First lift the seat to highest position, then
the seat can be lowered to lowest
position.
(B) Fore-and-aft adjustment
1. Pull up the lever (2) and slide the seat
backward or forward to the desired
position for operation of machine.
2. Release the lever (2) at the desired
position to secure the seat.
Adjustment range: 15 positions, in 150
mm (5.9 in.)
1
2
3
4
A
E
B
