8-8
OPTIONS
TRAVEL ALARM
The alarm sounds while the machine is
traveling and stops when the machine stops
traveling.
If the alarm does not sound when the
machine travels, the fuse may be blown.
Inspect the fuses.
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.

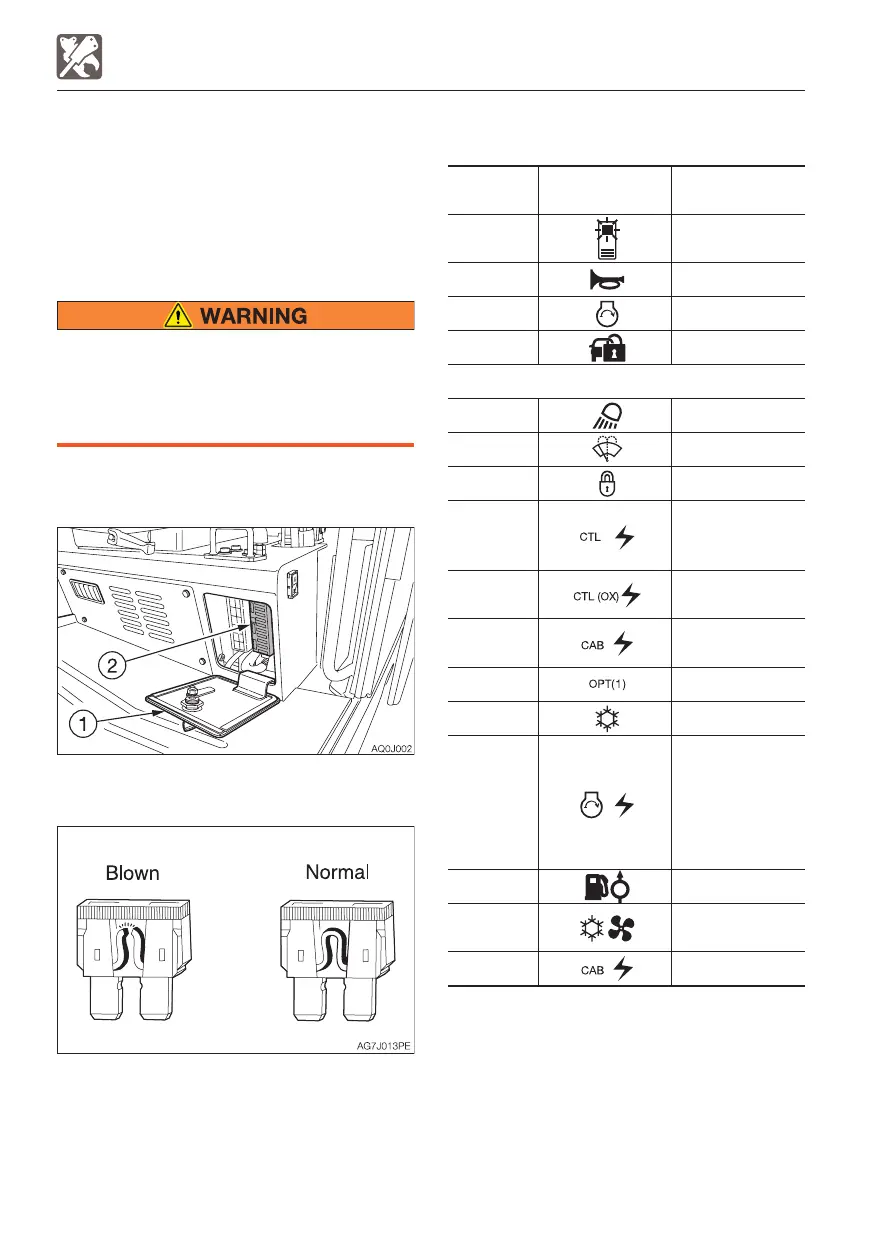

1. Turn the starter key to the OFF position to
stop the engine.
TRAVEL ALARM
2. Open the fuse box cover (1).
3. Check for any blown fuses (2).
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected
Capacity Symbol
Protected
circuit
5A Switch lighting
10A Horn
5A Starter switch
10A Immobilizer
25A Light
10A* Wiper
20A*/15A Lever lock
15A
Controller
power supply,
Travel alarm
20A
OX controller
power supply
25A*
Cab interior
power supply
25A Option (1)
10A* Air conditioner
30A*
Engine ACC
<Applicable
machine
models
126000002 or
later>
10A Feed pump
30A*
Air conditioner
blower motor
25A Cab light
*: Cab
