CONTROLS
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER

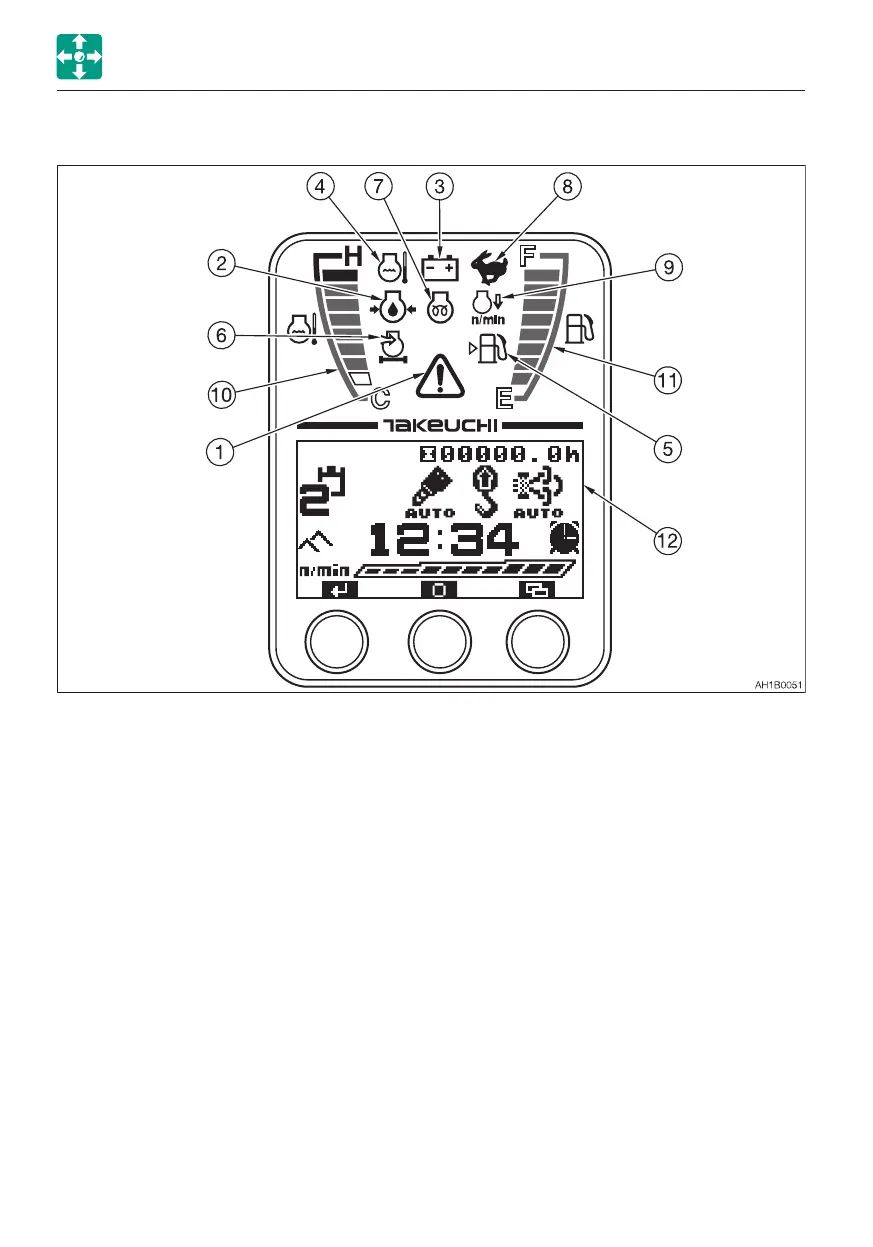

For explanation purposes, all lamps on this
page are in the lit condition. This screen
image is quite different from that of the real
operation.
Once the starter switch is turned to ON, all
lamps on the instrument cluster light up and
the alarm sounds.
Then, the battery charge warning lamp (3)
and the engine oil pressure warning lamp (2)
start flashing and an alarm sounds. The
machine system is normal if the lamps turn
off after the engine is started.
If any lamp is not lit when the starter switch
is turned to ON, there is something wrong in
the machine. Consult your sales or service
dealer.
WARNING LAMPS
IMPORTANT: If a warning lamp flashes
and an alarm is sounded, immediately
stop all operations and check the
corresponding component.
Refer to “If a warning lamp flashes” on
pages 6-10 to 6-11.
