CONTROLS
MULTI-INFORMATION DISPLAY
MULTI-INFORMATION DISPLAY

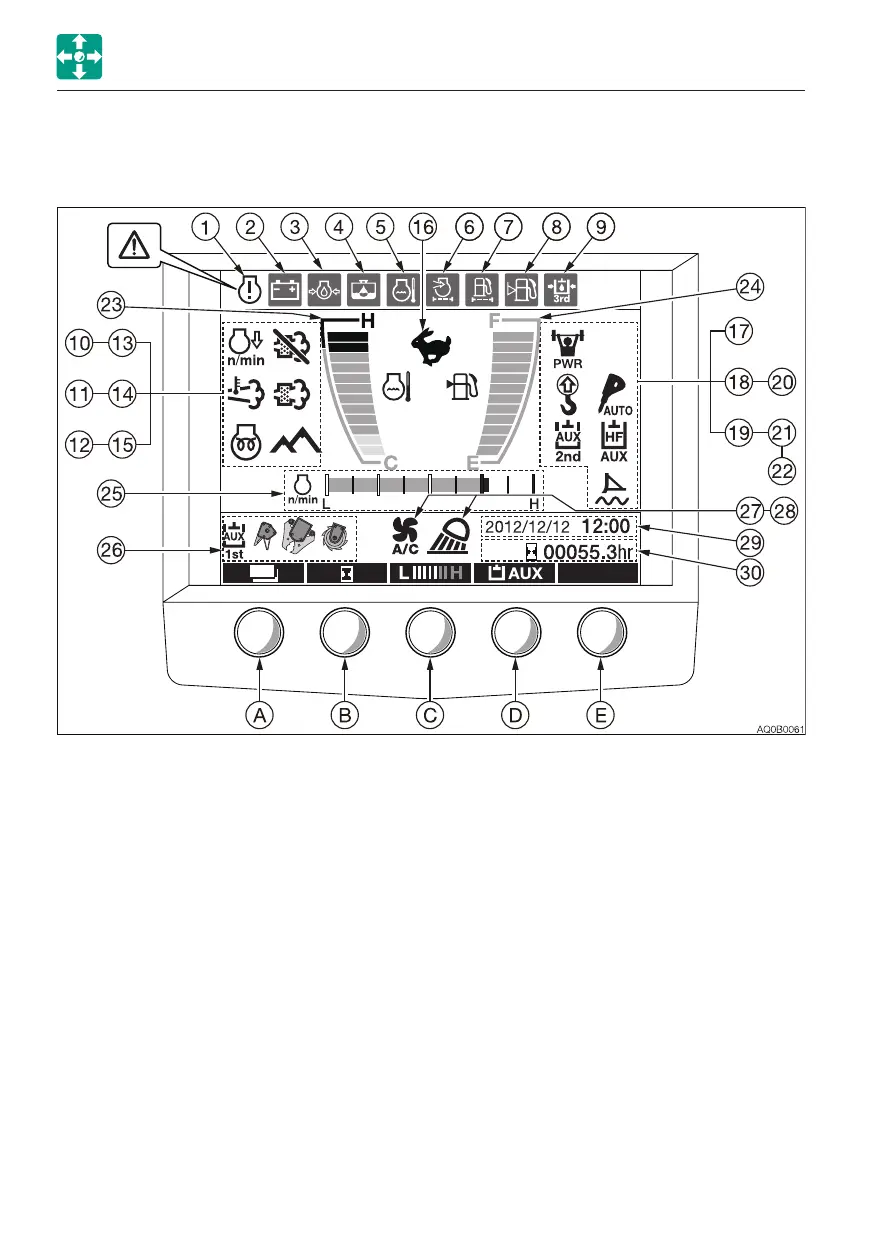

MAIN MENU SCREEN
For explanation purposes, all lamps on this page are in the lit condition. This screen image is
quite different from that of the real operation. In the actual operation, if a warning is given or
any function is selected, the corresponding symbol appears enlarged at the center of the
display for approx. one second.
When the starter switch is set to ON, the battery charge warning lamp and the engine oil
pressure warning lamp first appear enlarged, and then turn on with an alarm at their original
locations. The machine system is normal if the lamps turn off after the engine is started.
To Next Page
