6-7
TROUBLESHOOTING

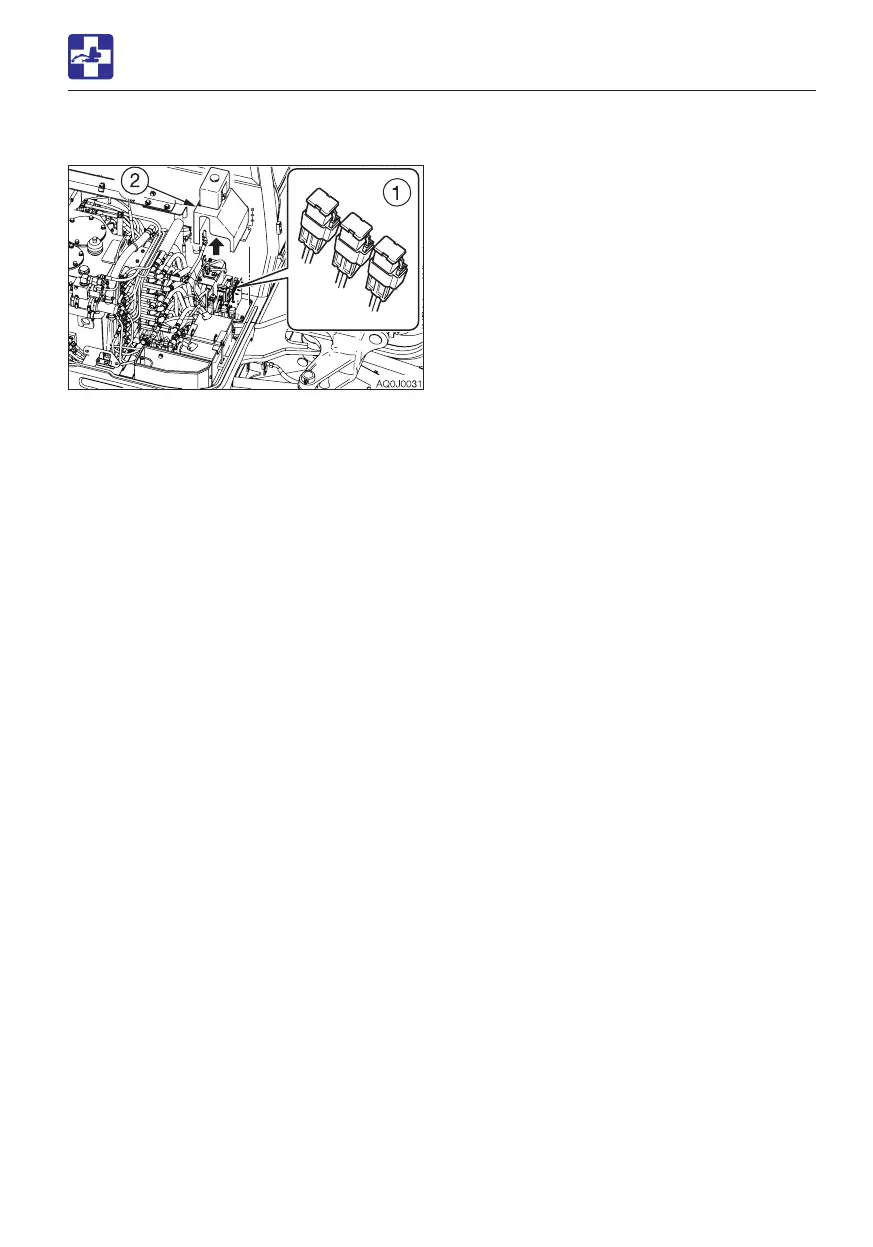

INSPECTING THE FUSIBLE LINK
IF A FUSE BLOWS
If the machine is not turned on after turning
the starter switch to the ON position, there is
likely a break in the cartridge type fusible link
(1).
1. Open the right side cover.
2. Loosen the bolts and remove the cover
(2).
3. Inspect the fusible link (1).
4. If there is a break, please contact your
sales or service dealer.
Note: Fusible links are large type fuses used
in high current applications. Like a regular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.
