Tektronix WFM6120 User Manual

Getting Acquain
tedWithYourInstrument
Setting Line Select Mode
To Toggle Line
Select Mode

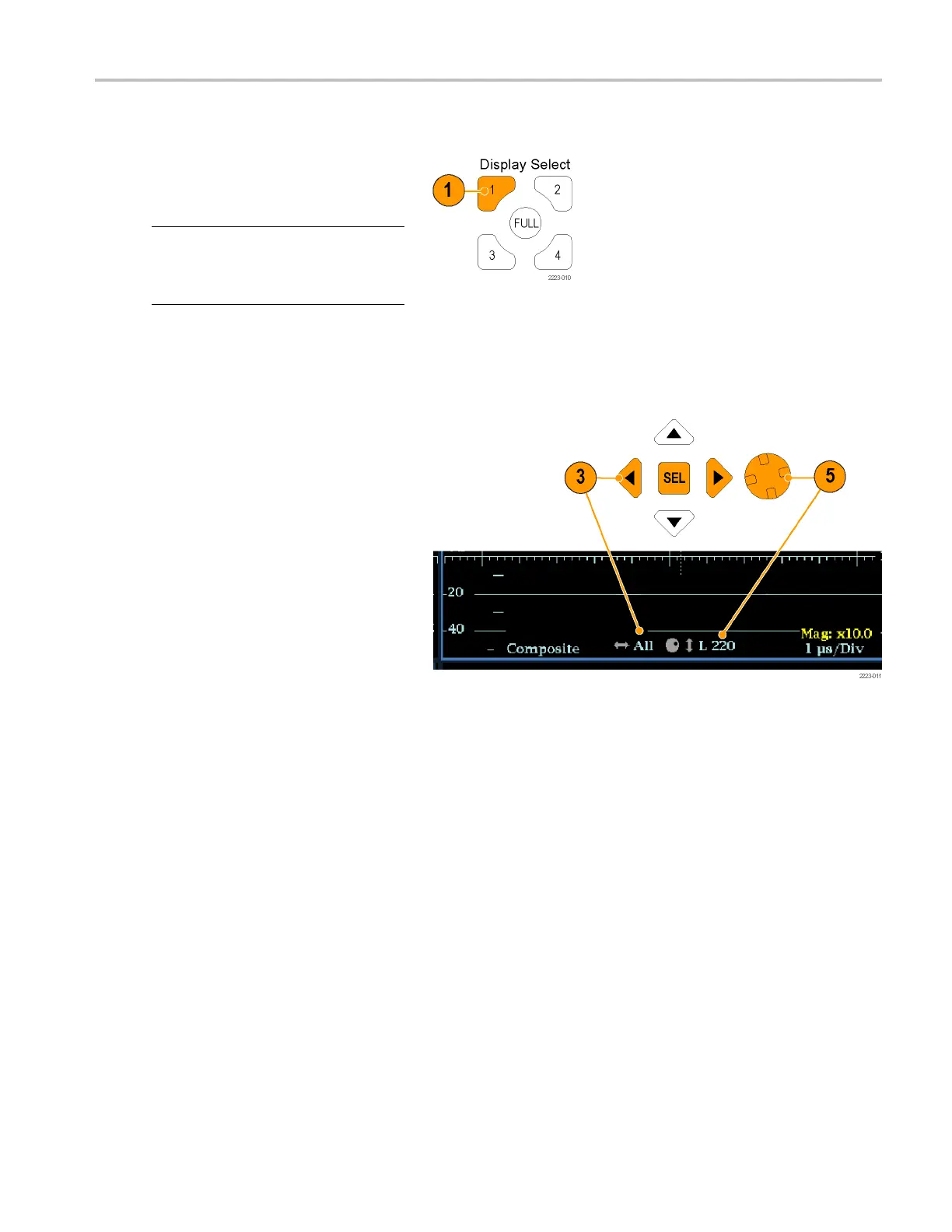

1. Select the tile containing the display for
which you want to set Line Select Mode.
NOTE. Line Select Mode can only be active
on one tile at a time, but the line select
brightup cursor does appear in other tiles and
moves as you select lines in the active tile.
2. Press the LINE SEL button to toggle
Line Select Mode on or off. When on, the
tile displays the selected line information
only.
3. Press the left or right arrow key to select
F1 (field 1), F2 (field 2), F3 (fi eld3), F4
(field 4), or All.
4. The line and field information will appear
at the bottom of the display screen.
5. Turn the GENERAL knob to select the
line you want to view.
Waveform Monitors Quick Start User Manual 37
