Operating Your I
nstrument
Simultaneous Input Monitoring
With Option SIM installed, this instrument can monitor two separate signals simultaneously. In this m ode, the i nstrument
display is divided into two sides, each with two tiles per input. This allows you to conveniently view measurement and status
displays from two signals at the same time. For more detailed information about Option SIM, see the User Technical
Reference on the User Documentation CD that shipped with your instrument.

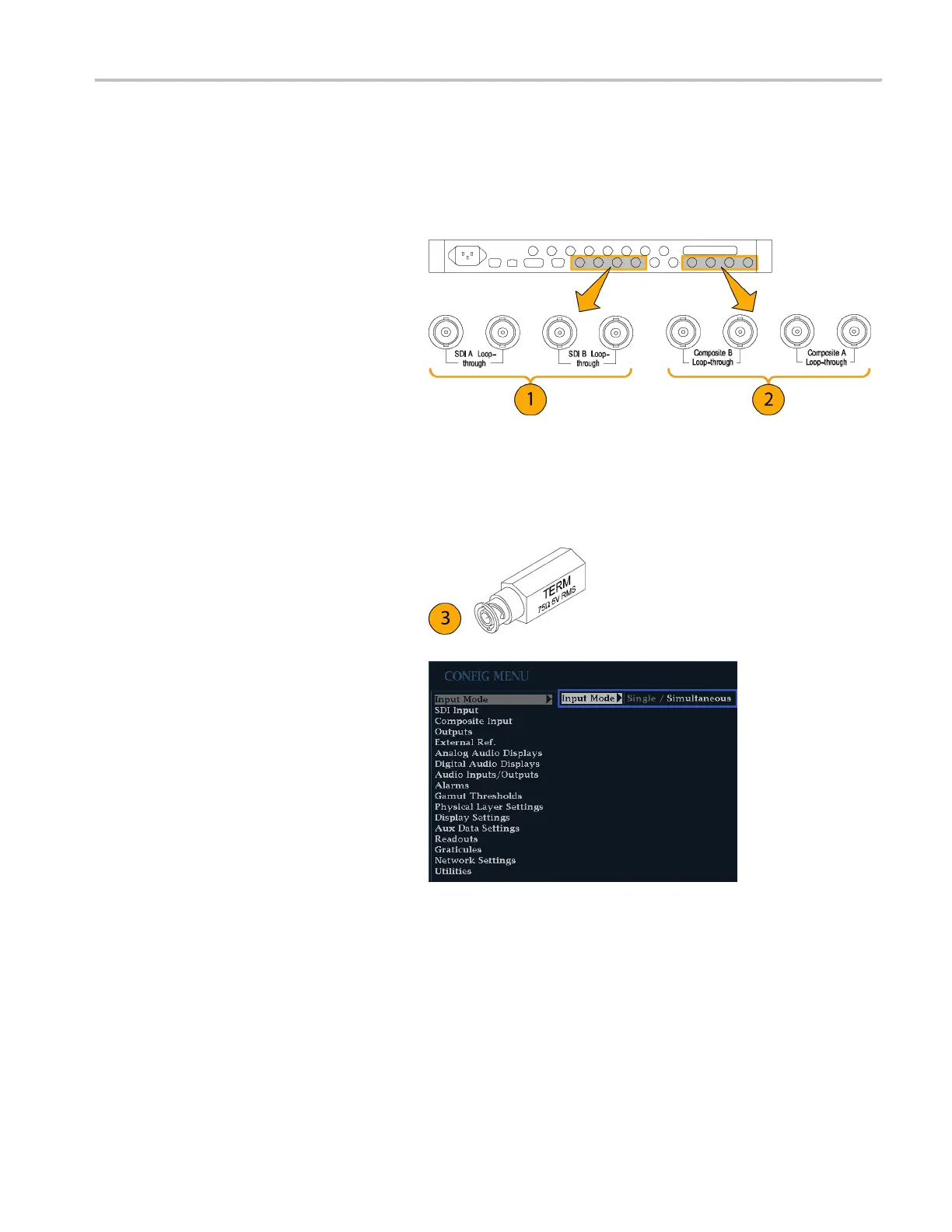

To Set Up Simultaneous Input
Monitoring
1. Connect a com
ponent video signal to
the A and B SDI inputs at the rear panel:
NOTE. Instruments with Option HD: The
instrument
automatically detects whether
the input is HD or SD.
2. Connect any analog composite signals
to the A or B C
omposite inputs at the
rear panel (for Option CPS equipped
instruments only).
NOTE. Only o
ne composite signal can be
monitored at a time.
3. Te rminate
the loop-through inputs
properly at the rear panel for all inputs
that you connected.
4. Press the CONFIG button, select Input
Mode,pressSEL, and then press the
right arrow key to select Simultaneous.
Waveform Rasterizers Quick Start User Manual 29
